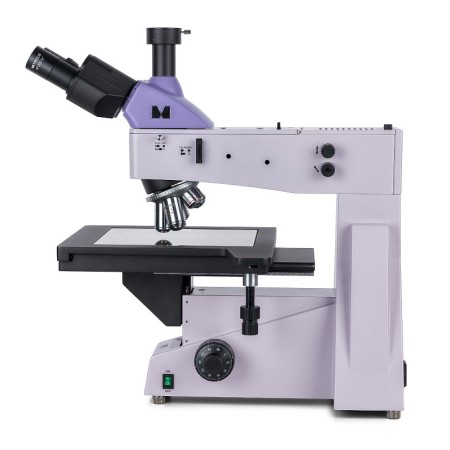

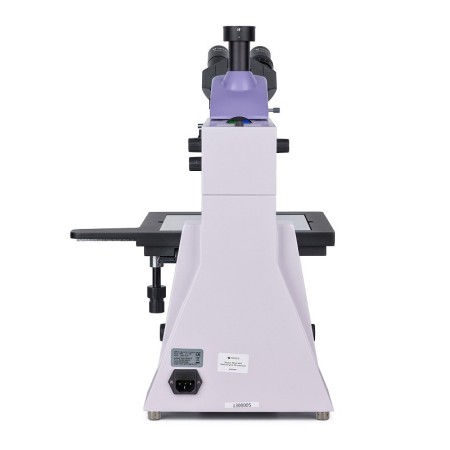

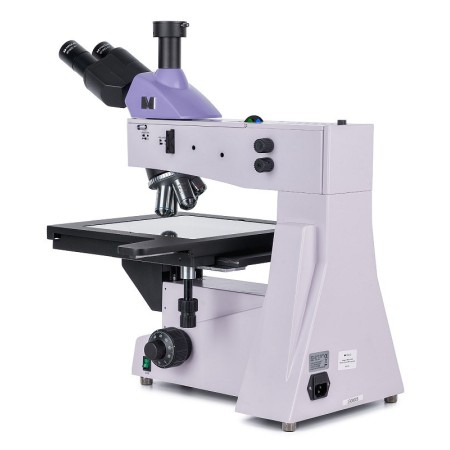

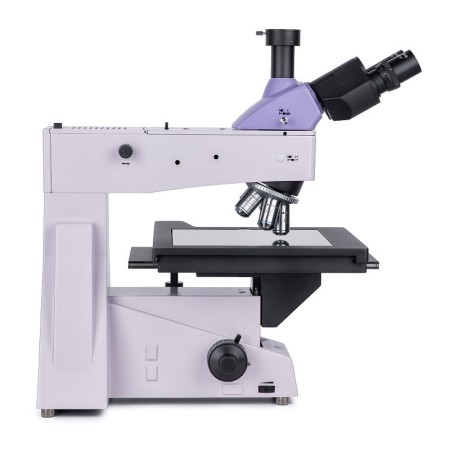

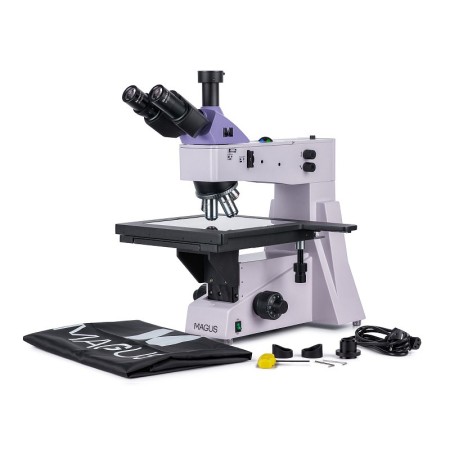

Metallographic microscope MAGUS Metal 650

The MAGUS Metal 650 metallurgical microscope features a large stage for placing photomasks, printed circuit boards, integrated circuits, and other long and wide samples for examination in reflected light. Brightfield and polarized-light observations are possible. The microscope provides highly precise focusing. The fine-focus value of 0.7 µm facilitates examination at high magnification. It is used to conduct research at industrial facilities and to train engineering students.

Optics

The infinity-corrected plan achromatic optics provide sharp, well-detailed images. The microscope has a trinocular head, inclined at 30°, and features a trinocular tube for mounting a digital camera. The camera (not included) captures photos and videos of the sample being examined and displays the microscope image on an external screen. A two-position beam splitter is provided: 100:0 and 0:100. The light beam is directed to the eyepiece or the camera. A diopter adjustment ring is located on the left eyepiece tube.

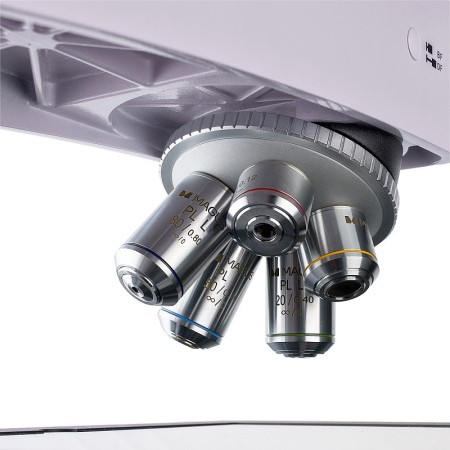

The 5 objectives can be installed on the revolving nosepiece, and all are included in the kit. To achieve higher magnification, optional objectives can be installed in place of the supplied ones. In its basic configuration, the microscope provides magnification from 50 to 800x. The revolving nosepiece faces inward, allowing the user to see which objective is in the optical path.

Illumination

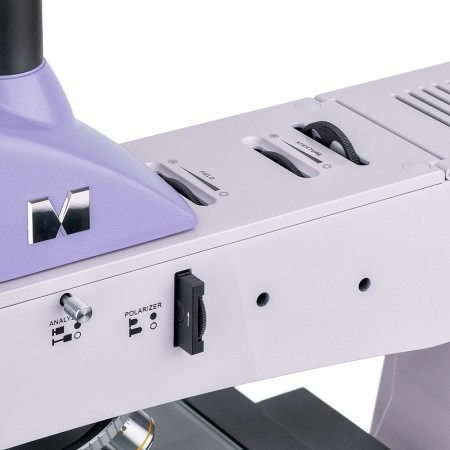

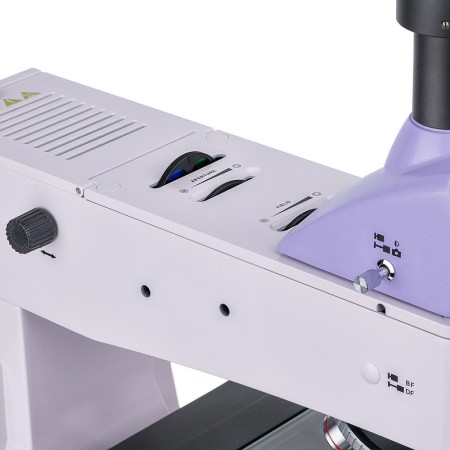

The reflected-light illumination system combines three centering elements: the light source, field diaphragm, and aperture diaphragm. The illuminator with a 30 W halogen lamp emits warm-toned light that helps prevent eye strain during prolonged use. Brightness can be adjusted, and Köhler illumination can be set up. The reflected-light illumination system also features a polarizing device: an integrated analyzer and a removable rotating polarizer. A set of color filters is included.

Stage and focusing mechanism

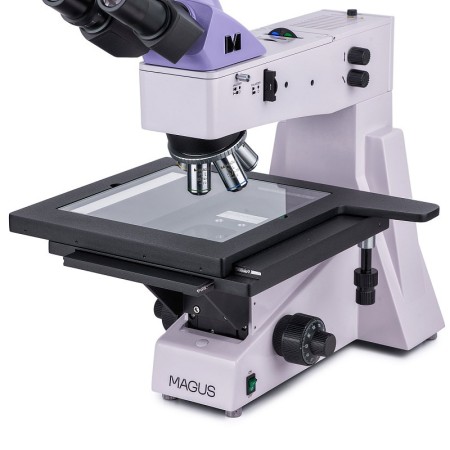

The microscope’s most distinctive design feature is its 280x270 mm stage, which can be moved along two axes by up to 204 mm. This allows large samples to be observed and their surfaces easily examined. The coarse- and fine-focus knobs are coaxial and located on both sides of the microscope; they feature a lock knob and a coarse-focus tension adjustment knob. The handle is near the microscope base. You can rest your hands freely on the table for a comfortable position during observation.

Accessories

Accessories compatible with the MAGUS Metal 650 microscope include eyepieces, long working distance objectives, digital cameras, and calibration slides. The accessories can be used to expand the microscope’s capabilities.

Key features:

• Large stage with a wide range of movement for observing long and wide samples
• Fine-focus value of 0.7 µm to facilitate focusing at high magnification. Coarse focusing via a lock knob and a tension adjustment knob
• Trinocular head with a trinocular tube and beam splitter
• Reflected-light illuminator: powerful 30 W halogen lamp with brightness adjustment and AC power supply
• Polarizing device, centerable reflected-light illuminator elements, Köhler illumination, color filters
• Wide range of compatible optional items and accessories

The package includes:

• Base with power input, light source for reflected-light observations, focusing mechanism, stage, and revolving nosepiece
• Trinocular head
• Infinity-corrected plan achromatic objective: PL L5x/0.12 WD 26.1 mm
• Infinity-corrected plan achromatic objective: PL L10х/0.25 WD 20.2 mm
• Infinity-corrected plan achromatic objective: PL L20х/0.40 WD 8.80 mm
• Infinity-corrected plan achromatic objective: PL L50х/0.70 WD 3.68 mm
• Infinity-corrected plan achromatic objective: PL L80x/0.80 WD 1.25 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs.)
• 1x C-mount adapter
• Hex key
• AC power cable
• Dust cover
• User manual and warranty certificate

Available on request:

• 10x/22 mm eyepiece with reticle
• 12,5x/14 mm eyepiece (2 pcs.)
• 15x/15 mm eyepiece (2 pcs.)
• 20x/12 mm eyepiece (2 pcs.)
• 25x/9 mm eyepiece (2 pcs.)
• Infinity-corrected plan achromatic objective: PL L40х/0.60 WD 3.98 mm
• Infinity-corrected plan achromatic objective: PL L60x/0.70 WD 2.08 mm
• Infinity-corrected plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm
• Digital camera
• Calibration slide
