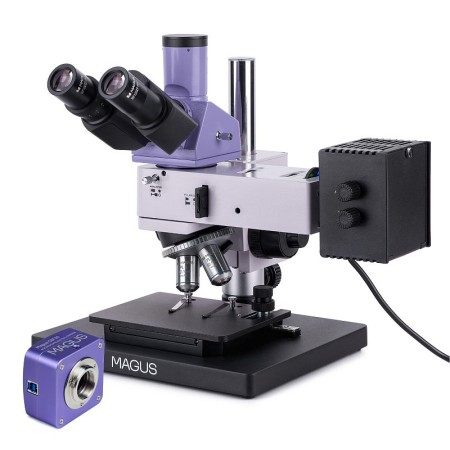

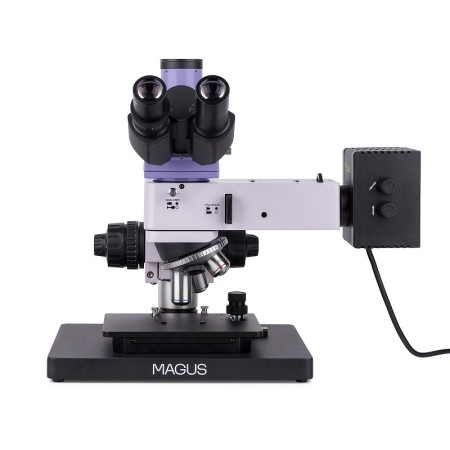

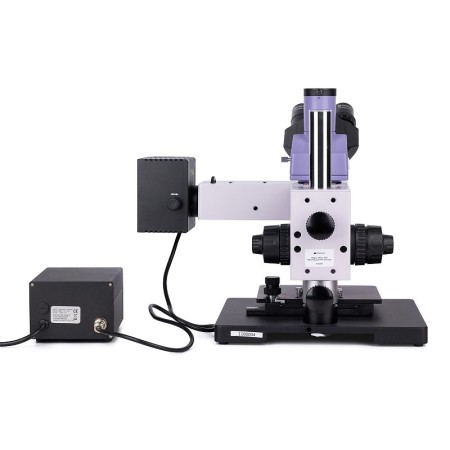

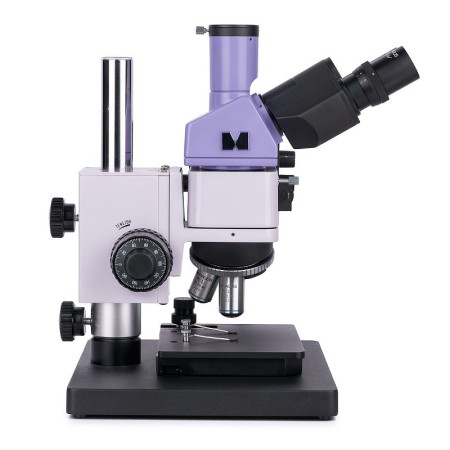

The MAGUS Metal 630 reflected-light metallurgical microscope is used to examine the microstructure of opaque objects of any height and size. The objects examined include metals, alloys, semiconductors and paint coatings. Available microscopy techniques include brightfield and polarized light. One of the microscope’s advantages is its compact size, making it ideal for laboratories with limited workspace and storage. The MAGUS Metal 630 microscope is an ideal choice for companies in various industries, research centers and university departments.

Digital camera

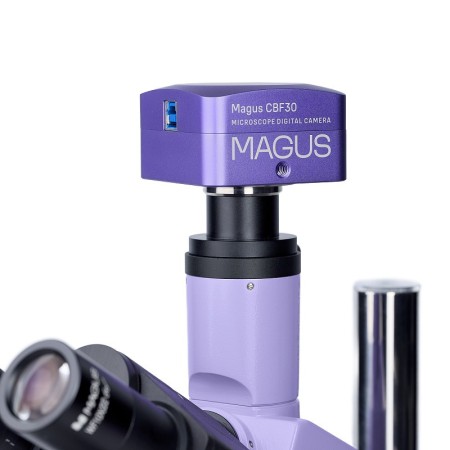

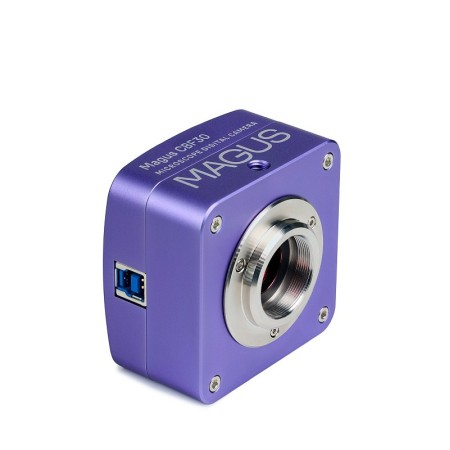

The MAGUS CBF30 digital camera lets you take photographs and record short videos through a microscope, edit the resulting files, organize presentations and perform linear and angular measurements of objects (after proper calibration).
The device is designed for use with microscopes using the brightfield method and 4x, 10x, 20x and 40x objectives.

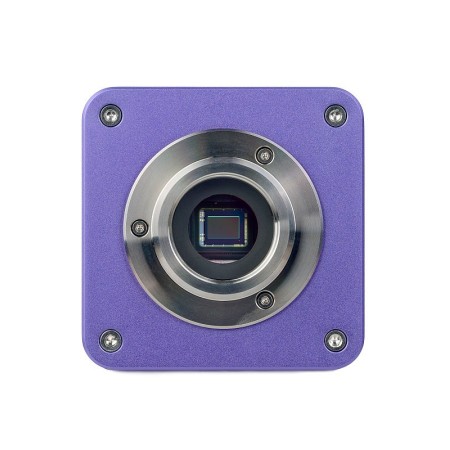

The 6.3 MP sensor allows you to take photos and produce bright, detailed videos at a maximum resolution of 3072x2048 px. If necessary, the resolution can be reduced to 1536x1024 px. However, this will not affect the frame rate, which will remain at 59 fps, ensuring smooth frame transitions without stuttering or delays.

The back-illuminated SONY Exmor color CMOS sensor allows the camera to be used even in low-light conditions. The image will remain clear and bright. Using an adapter with magnification from 0,5x to 0,75x will provide the clearest possible image without distortion.

Optics

The microscope’s optics are infinity-corrected. The trinocular tube for mounting the camera is positioned vertically. The light beam can be directed to the eyepiece or into the trinocular tube. The camera is not included in the basic configuration. The microscope allows comfortable work for many hours thanks to the 30° inclination of the binocular head. The left eyepiece features a diopter adjustment mechanism to adapt the optics to the user’s eyesight.

The revolving nosepiece has 5 sockets. The kit includes 4 plan achromatic objectives. Once installed, one socket remains free for an optional objective. The long working distance objectives are designed for brightfield microscopy.

Illumination

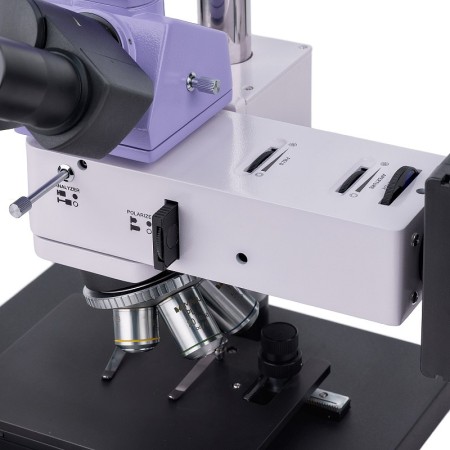

The microscope uses reflected-light illumination only. The illumination system consists of a polarizing device, an aperture diaphragm and a field diaphragm. Light source: 30 W halogen lamp. The emitted light is not dazzling and does not strain the eyes. Both the diaphragm and the light source can be centered. Köhler illumination can also be set up. The kit includes color filters.

Stage and focusing mechanism

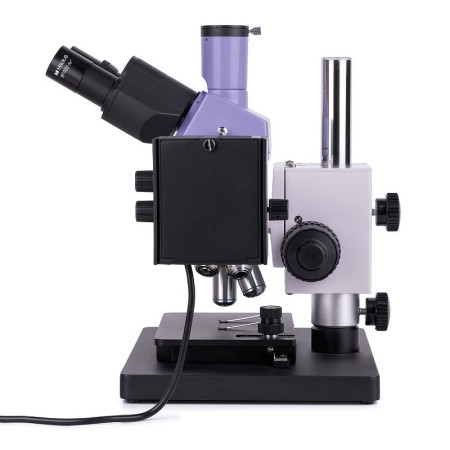

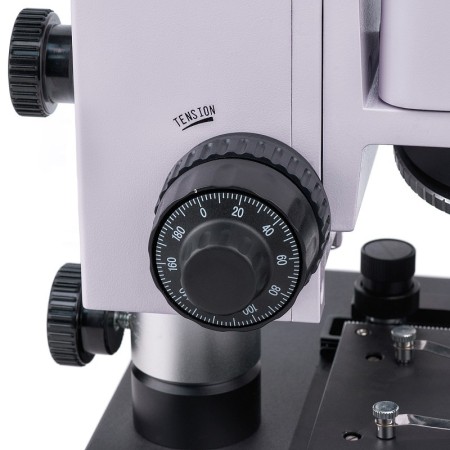

The innovatively designed stand and focusing mechanism offer two advantages: compact dimensions and the ability to observe samples of any height. The microscope can be easily placed on a laboratory bench up to 40 cm high. Small samples can be examined using a two-axis stage. Focusing is adjusted using coaxial coarse- and fine-focus knobs located on both sides of the stand. The mechanisms operate precisely and smoothly. Coarse-focus tension can also be adjusted.

Accessories

The microscope can be enhanced with optional accessories, such as long working distance objectives, eyepieces, a digital camera and calibration slides.

Key features of the microscope:

• Samples of any height and size
• Trinocular head with a trinocular tube for mounting a digital camera and a 100:0 and 0:100 beam splitter
• 30 W halogen lamp with warm-toned light for reflected-light work using brightfield and polarization microscopy techniques
• Color filters, option to set up Köhler illumination, and a light source and aperture and field diaphragms that can be centered
• Compact stand for mounting the microscope on a bench
• Numerous additional accessories

Key camera features:

• Recommended for use with low-magnification objectives
• Light-sensitive sensor for clear images even in low-light conditions
• Frame rate of 59 fps, sufficient for observing moving objects or fast-moving processes
• The package includes software that fully supports all camera features and therefore enables “quick start”
• Reliable USB 3.0 interface for high data transfer speeds
• Resolution adjustment lets you choose the option best suited to any given situation

The package includes:

• MAGUS CBF30 digital camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty certificate)
• Stand with focusing mechanism, stage and revolving nosepiece
• Illuminator for reflected-light observation with bulb housing
• Trinocular head
• Infinity-corrected plan achromatic objective: PL L5x/0.12 WD 26.1 mm
• Infinity-corrected plan achromatic objective: PL L10х/0.25 WD 20.2 mm
• Infinity-corrected plan achromatic objective: PL L20х/0.40 WD 8.80 mm
• Infinity-corrected plan achromatic objective: PL L50х/0.70 WD 3.68 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs.)
• 1x C-mount adapter
• Allen key
• Base with power input
• Power cable
• Power cable for the reflected-light illuminator
• Dust cover
• User manual and warranty certificate

Available on request:

• 10x/22 mm eyepiece with reticle
• 12,5x/14 mm eyepiece (2 pcs.)
• 15x/15 mm eyepiece (2 pcs.)
• 20x/12 mm eyepiece (2 pcs.)
• 25x/9 mm eyepiece (2 pcs.)
• Infinity-corrected plan achromatic objective: PL L40х/0.60 WD 3.98 mm
• Infinity-corrected plan achromatic objective: PL L60x/0.70 WD 2.08 mm
• Infinity-corrected plan achromatic objective: PL L80x/0.80 WD 1.25 mm
• Infinity-corrected plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm
• Calibration slide
