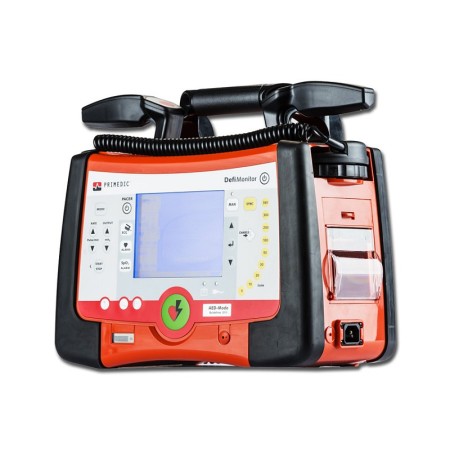

The DefiMonitor XD is a high-quality, professional multifunction instrument, designed to offer a compact and reliable design, ensuring the highest level of safety and ease of use.

Technical features:
- 6-lead ECG with free selection of leads
- Synchronous display of two waveforms on the screen
- Available in 8 versions: manual or manual + AED, with or without SpO2 and external pacer

Supplied with:
- Adult/pediatric electrodes
- Disposable adult adhesive electrodes
- Connection cable
- ECG cable
- Power cable
- Tube of gel
- Roll of paper
- Battery

Standard software:
- GB, FR, DE, IT, ES, KT, PT, RO, TR, CN

Manual:
- GB, IT (on request: DE, ES, PT, RU, UA)

Additional software available on request:
- CZ, FI, HU, NL, NO, PL, RU, SE, DK, GR, LT, JU, AE, BR, CN, IR, JP, TH, US

Physical specifications:
- Dimensions: 33x29x16 cm
- Weight: 5.3 kg
- Made in Germany

Defibrillation:
- Pulse: biphasic, current-controlled
- Energy (automatic mode): 140-360 J
- Energy levels (biphasic): 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 250, 300, 360 J
- Charging time: < 6 sec for 200 J
- Cardioversion: manual activation, QRS marker

ECG:
- Lead: Einthoven I, II, III / Goldberger, aVR, aVF, aVL
- Patient resistance: 23-200 Ohm
- Heart rate: 30-300 per min

VF detection:
- Analysis time: 7-12 sec
- VF threshold: 200 µV
- Asystole threshold: < 200 µV
- Artifact, pacemaker detection

Pulse oximeter:
- Nellcor Oximax

Pacer:
- Transthoracic pacemaker
- Modes: fixed, on demand, overdrive

Thermal printer:
- Resolution: 200 dpi
- Speed: 25 mm/s, 50 mm/s

Monitor:
- TFT, LCD-Blue-mode
- Dimensions: 115x86 mm (diagonal 5.7"/144 mm)
- Resolution: 320x240 pixels

Electrodes:
- Adhesive electrodes, shelf life 3 years
- SavePads connection cable length: 3.5 m

Data management:
- Removable memory: 2 GB

Power supply:
- Voltage: 90-264 V, 50-60 Hz

Rechargeable Li-ION battery:
- Capacity: 2.5 Ah
- Voltage: 13.2 Vdc
- Shocks: 160-200 J
- Monitoring: 5.30 h
- Charging time: 3.2 h

Resuscitation guidelines:
- AHA/ERC

Standards:
- IEC60601-1:1988+A1:1991+A2:1995 (Electrical safety of medical electrical equipment)
- IEC60601-1-2:2001 (Electromagnetic compatibility)
- IEC60601-1-4:1996+A1:1999 (Programmable electrical medical systems)
- IEC60601-2-4:2002 (Defibrillators)
- EN1789:2003 (Ambulance standard)
- Protection type class IP33
