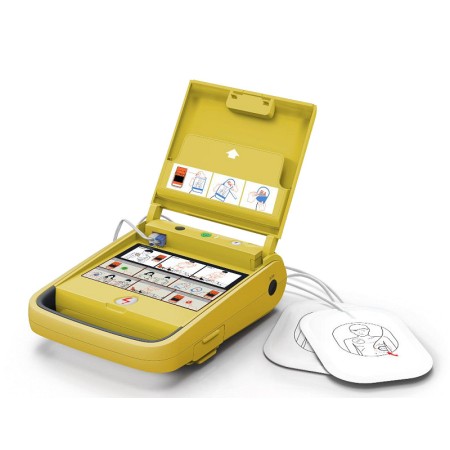

The Amoul i3 Semi-Automatic External Defibrillator is an advanced device, designed for use on adults, children and pediatric patients. It features a lightweight and intuitive design, with a 5-year warranty that attests to its reliability.

Thanks to the disposable adhesive pads, the device is ready to intervene quickly on adults and children (>8 years, >25 Kg) as well as pediatric patients (<8 years, <25 Kg). It is suitable for indoor and outdoor environments, ideal for emergency room workers, healthcare professionals and even for non-experts. The i3 defibrillator automatically analyzes the patient's ECG, guiding the operator with audio-visual commands. In the event of cardiac arrest, it automatically charges and releases the shock when the operator presses the button.

The device comes with pre-attached plates and a flashing status indicator that signals readiness for use. Performs daily, weekly, and monthly self-tests, alerting you to errors or low battery. Designed to withstand extreme conditions, it offers protection against splashes, drops, and dust. It records operating data to internal memory, including ECG data, events, and self-test results.

It is powered by a LiMnO2 battery with a lifespan of 5 years or 200 discharges. The package includes a hard bag, battery, and disposable plates for adults and children.

Technical features:
- Operation mode: Semi-automatic
- Waveform: Biphasic e-cube
- Discharge Energy Accuracy: Compliant with ANSI/AAMI DF80/IEC EN60601-2-4
- Adult and Child Discharge Energy: 200J nominal
- Step discharge energy Adult and Child: 200J-200J-200J
- Pediatric discharge energy: 50J nominal
- Step discharge energy: 50J-50J-50J

Usage:
- Adult and Child: ≥8 years or >25 kg
- Pediatric: <8 years or <25 kg

User Interface:
- Step-by-step voice instructions
- Sound alerts and light indications
- Heart rhythm analysis time: <8 seconds
- Charging time: <10 seconds
- Impedance range: 25-175 ohms
- ECG bandwidth: 1-30 Hz

Dimensions and weight:
- Size: 289mm×217mm×91mm
- Weight: 2.5 kg (with battery and plates)

Protection class:
- IP54

Operating conditions:
- Temperature: 0°C-50°C
- Humidity: 5%-95% (non-condensing)
- Pressure: 70kPa-110kPa

Storage conditions:
- Temperature: -30°C-70°C
- Humidity: 5%-95% (non-condensing)
- Pressure: 70kPa-110kPa

Battery type:
- LiMnO2 battery, 12VDC, 4.2Ah, non-rechargeable
- Maximum number of discharges: 200
- Battery capacity: 200 discharges or 4 hours
- Battery life: 5 years

Type of plates:
- Self-adhesive gelled, disposable, latex-free
- Shelf life: 36 months
- Cable length: approx. 1.2m
- Area area: 100cm² for each

Data transfer:
- i3 AED Data Management Software
- Communication: Wi-Fi / IrDA
- Documentation: ECG data, event log, self-test data
- Internal memory: 24 hours of ECG data
- Self-Test Schedule: Start, Daily, Weekly, Monthly
- Manual Self-Test Function: When the battery is inserted
- Button testing: Discharge button, i-button, on/off button

Classification:
- Class (93/42/EEC): IIB
- Patient isolation type: BF

Equipment:
- Unit i3
- LiMnO2 12V, 4.2Ah battery
- 1 Pair of disposable plates for adults / children
- Rigid carrying bag
- Verification report CEI 62-13 EN 60601-2-4
- User manual in Italian
- Declaration of conformity
- CE certified
