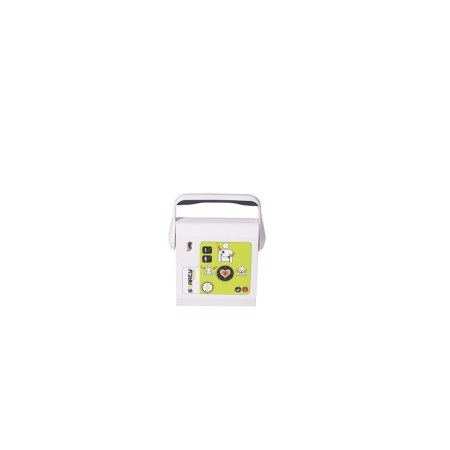

Smarty Saver Automatic Defibrillator

The Smarty Saver Automatic Defibrillator by Saver One by AMI Italia is an advanced solution for the rapid and effective treatment of sudden cardiac arrest (SCA) and for guiding the administration of cardiopulmonary resuscitation (CPR). Designed for ease of use in both medical and non-medical settings, it is ideal for environments such as ambulances, emergency departments, public places and private premises.

The Semi-automatic model analyzes the patient's ECG and, if it detects a shockable rhythm, automatically starts charging the required energy. The operator is notified through visual and voice prompts to press the shock button. The Automatic model delivers the defibrillation shock automatically 5 seconds after the voice prompt.

Model:
- Code SM2-B1002: Automatic

Maximum energy:
- 200J (nominal)

Waveform:
- Impedance-adaptive biphasic truncated exponential (BTE)

Shock protocol:
- Adult: incremental, first 150J, subsequent 200J
- Pediatric: fixed 50J

Charging time from shock prompt*:
- IEC60601-2-4: ≤ 9 sec with 150J shock
- ≤ 12 sec with 200J shock

Charging time from start of analysis*:
- IEC60601-2-4: ≤ 13 sec with 150J shock
- ≤ 16 sec with 200J shock

Analysis time:
- IEC/EN 60601-2-4 from 4 to 15 seconds

Impedance range:
- 20-200 Ohms

Sensitivity:
- 97% (IEC/EN 60601-2-4)

Specificity:
- 99% (IEC/EN 60601-2-4)

Controls:
- Semi-automatic mode: 4 buttons (ON/OFF, shock, adult/pediatric patient selector)
- Automatic mode: 3 buttons (ON/OFF, adult/pediatric patient selector)

Indicator lights:
- Device status: 2 red/green LED
- PAD placement: 2 red LEDs
- Do not touch the patient: 2 red LEDs
- Touch the patient: 1 green LED
- Adult patient: 1 green LED
- Pediatric patient: 1 green LED
- ON/OFF button: 2 green LEDs
- Shock button: 8 red LEDs

Update:
- Via USB cable
- External memory card

Structure:
- Dimensions: 200x213x71mm (handle closed), 257x213x71mm (handle open)
- Weight: 1.56 Kg (with battery and PADs)

Data recording:
- Optional external memory: Micro uSD/SDHC up to 32GB
- Stored data: "text file AED1LOG.txt" (detailed report of self-test activities and power-ups), "AEDFILE.aed" (ECG trace, rescue events, voice recordings, ambient audio)
- Viewing "AEDFILE.aed": Using the "Saver View Express" data management software

Equipment:
- Semi-rigid carrying case
- Universal disposable pads
- Non-rechargeable battery
- User guide
