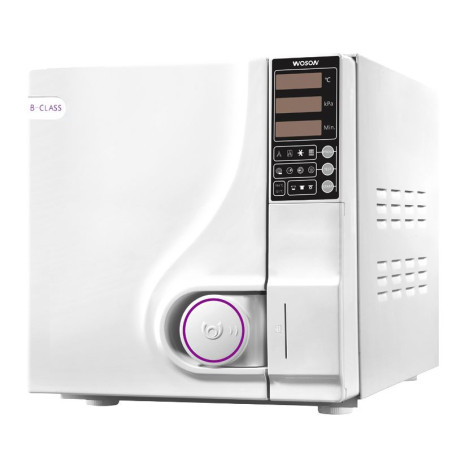

Autoclave WOSON Tanco 8 L type D with printer cl. B medical

WOSON
Price: €1,641.91
Tax included
Code AC122678 Brand WOSON EAN 5906717411335

WOSON It is a renowned manufacturer of high-quality medical and cosmetic equipment. The brand provides beauty salons, tattoo studios, hospitals, and clinics with professional equipment used in the sterilization process, thus allowing them to ensure the highest level of safety and hygiene for operators and their customers.

Safe sterilization of a wide range of instruments

The compact autoclave WOSON New Tanco 8 L It is an indispensable piece of equipment that will prove useful in all beauty salons, nail salons, and other places where It is important to maintain the sterility of the instruments used during treatments. Sterilization with a medical class B autoclave ensures the Full effectiveness and process safety, thus facilitating the maintenance of high hygiene standards in the salon. The equipment is designed for sterilizing medical and non-medical instruments, packaged and unpackaged, uniforms, type A recessed and porous articles. L The unit should only be used by qualified personnel and properly trained in the use of this type of equipment.

Enhancements for more functionality

The machine is equipped with a control panel with LED display, which allows the selection of appropriate programs or parameters and continuous monitoring of the process. An integrated thermal printer It allows you to print the confirmation of the sterilization process with information such as: date and time of the cycle, temperature changes, pressure. In addition, there is a connector on the back of the device that allows, if necessary, to also connect a dedicated printer, while The entrance USB Allows sterilization results to be saved in digital form as well on an included memory stick. Built-in tanks for distilled water and used water greatly improve the work. The unit has a distilled water quality control function. A self-diagnosis system It informs you when an error occurs by displaying appropriate messages, such as when the door is not closed or when the tank needs to be emptied or the water replaced, thereby reducing the risk of equipment damage.

Sterilization, testing, and cleaning programs available

The autoclave has 4 Programs Sterilization, 2 test programs - which allow you to perform three tests: the Vacuum Test, the B&D Test and the Helix Test, a schedule for regular maintenance and cleaning of pipes (Automatic Pipe Cleaning) and a Program of Drying Function. I Parameters can be selected according to individual requirements and the prepared load. You can also set and save your own sterilization parameters through the Custom Mode (CUSTOM).

STERILIZATION PROGRAMS

Sterilization Program Load type Temperature Pressure Vacuum generation speed Cycle time
"UNPACKED"
"UNPACKED"
Program for sterilization of unpackaged items 134°C 210 kPa 1 time sterilization time: 4 minutes; drying time: 9 minutes
"PACKED"
"PACKAGED"
Program designed for the sterilization of packaged items, tips 134°C 210 kPa 3 times sterilization time: 5 minutes; drying time: 9 minutes
"PRIONE"
"PRIONIO"
Program designed to inactivate prions, bacteria and viruses, etc. 134°C 210 kPa 3 times sterilization time: 18 minutes; drying time: 9 minutes
"POREOUS"
"POROUS
Program designed for the sterilization of cotton articles and the like. 121°C 110 kPa 3 times sterilization time: 20 minutes; drying time: 18 minutes

Technical specifications

Class B medical The most advanced sterilizers, which allow the most effective sterilization of unwrapped and wrapped items, regardless of the type of instruments. They are distinguished by the generation of a fractional pre-vacuum.
Regulatory requirements The device is CE 0197 certified and meets the requirements of the Medical Device Directive 93/42/CEE and the 97/23/CE Directive . It also complies with EN 61010-1; EN 61010-2-040; EN 13060; EN 61326-1. The manufacturer is certified according to EN ISO 9001 and EN ISO 13485.

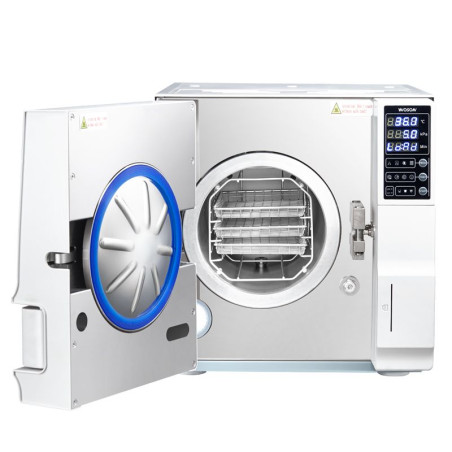

Capacity 8 litres Ideal for beauty salons or clinics. It houses a basket with 3 trays on which to place packaged and unpackaged instruments.
Built-in printer Use thermal paper, avoiding the hassle of replacing ink.
Sterilization of bulk or packaged instruments For both sterilization methods, the process is characterized by high efficiency.
Control panel with LED display Allows you to easily select the appropriate program and set parameters. Displays temperature, pressure, and time during the process.
8 automatic programs 4 sterilization programs, 2 test programs, 1 tube cleaning program, 1 drying program.

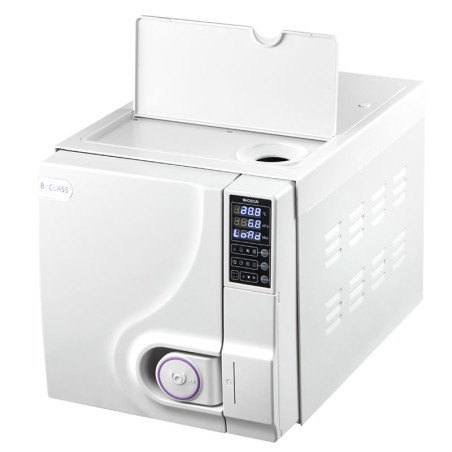

Built-in tanks for distilled water and waste water The clean water tank is designed for distilled or deionized water for sterilization. The presence of a used water tank makes the use of an additional external container unnecessary.
Self-diagnosis system The messages displayed help to avoid damage.
Stainless steel chamber The material used is designed for medical applications and is durable, demonstrating the high quality of the unit's workmanship.
Meet health regulations Registration with the UDT is not necessary.
Technical passport Included in the set.
Warranty 24 months. The duration of the warranty does not depend on the number of cycles performed.

Technical data

Certifications and standards EC 0197 (93/42/EEC, 97/23/EC),
EN 61010-1; EN 61010-2-040; EN 13060; EN 61326-1
Power 1600 W
Voltage rating 220 V AC ~ 240 V AC, 50 Hz ~60 Hz
Maximum Operating Temperature 145°C
Maximum working pressure 2.5 bar (250 kPa)
Minimum operating pressure -0.9 bar (90 kPa)
Time adjustment 20 to 60 minutes for a 121°C programme or 4 to 20 minutes for a 134°C programme
Drying time From 0 to 60 minutes, the duration of the phase is 5 minutes
Vacuum times 1 time, 3 times or 5 times
Packaging Dimensions 652 x 549 x 486 mm
External dimensions 545 x 382 x 375 mm
Chamber material stainless steel
Room dimensions 251 x 137 x 132 mm

Read the instructions carefully before use.

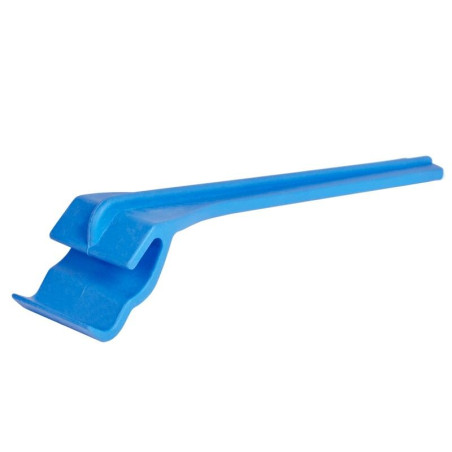

Equipment: Autoclave, tray frame, three trays, handle (handle) for removing the tray, hose (cable) for sewage drainage, power cord, door seal, instruction manual, technical passport, memory stick.

Manufacturer: Ningbo Jiangbei WOSON Medical Instrument Co., Ltd. Authorized Representative: Caretechion GmbH. Importer and Advertising Body: Activeshop Ltd.
This is a medical device. Use it in accordance with the instructions for use or label.
