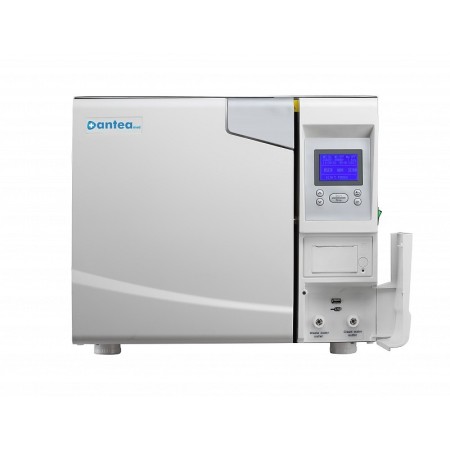

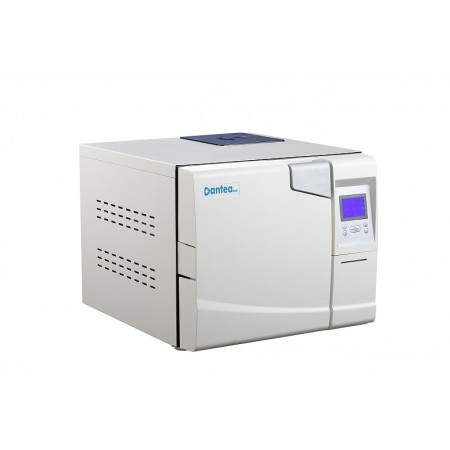

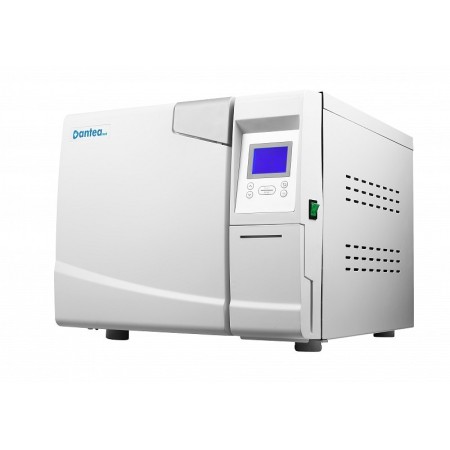

DENEB 22 Class B autoclave, 22 L, with printer and USB port

DENEB 22 Class B autoclave, 22 L, with printer and USB port by AnteaMed is a professional, advanced solution for the safe and effective sterilization of medical instruments. Designed to meet the needs of medical and dental practices and laboratories, this Class B autoclave uses a fractionated vacuum system to ensure maximum effectiveness, even with hollow, porous and wrapped instruments.

The sterilization chamber has a volume of 22 liters, with a diameter of 25 cm and a depth of 45 cm, and is easily accessible for cleaning. Its compact external dimensions (68 x 50 x 43 cm) make it suitable for a variety of space configurations. The net weight is 59 kg.

The device is equipped with a LCD display measuring 6 x 4,25 cm, an interface in Italian and English, a mechanical and electrical door lock, and a user password, built-in printer and USB output for saving cycle data. The system is fully automatic, with preset programs and customizable mode to suit every clinical need.

Available sterilization programs:

• 121°C - Solid loads: 24 min
• 121°C - Porous loads: 30 min
• 121°C - Hollow loads: 33 min
• 134°C - Solid loads: 8 min
• 134°C - Porous loads: 14 min
• 134°C - Hollow loads: 17 min
• Bowie & Dick test: 4 min
• Vacuum test: 15 min
• Helix Test
• Cleaning program
• Prion program
• Customizable program

Cycles at 134°C are suitable for solid and ferrous materials, while those at 121°C are suitable for thermoplastics, fabrics and sensitive devices. Always follow the instructions provided by the manufacturer of the device to be sterilized.

Technical specifications:

• Class B with fractionated vacuum
• Double-head vacuum pump
• 1 water pump, 1 steam generator, 1 safety valve
• 1 clean water tank, 1 waste water tank (capacity: 3–4 cycles)
• Integrated antibacterial filters
• Sensor accuracy: 0.1 KPa (pressure), 0.1°C (temperature)
• Operating temperature: 121°C and 134°C
• Maximum temperature: 134–137°C
• Maximum operating pressure: 0.21–0.23 MPa
• Voltage: 220–230V, 50Hz
• Power consumption: 2.4–2.5 KW

The sterilizer complies with CE 1023, ISO 13485 and the standard UNI EN 13060:2015 (BS EN 13060:2004 + A2:2010). It is equipped with overtemperature and overpressure protection systems and a door lock to prevent accidental opening, ensuring maximum safety during use.

Environmental operating conditions:

• Temperature: 5°C–40°C
• Relative humidity: ≤80%
• Atmospheric pressure: >70 kPa

The warranty is 24 months for all customers. In the event of a malfunction, RAM Apparecchi Medicali srl, an authorized technical service center, will arrange collection, repair or replacement of the product within 48 hours of notification, at no additional cost during the warranty period.

The right of withdrawal within 10 days of purchase also applies to customers with a VAT number.

The DENEB 22 Class B is the ideal choice for anyone seeking professional, safe and documented sterilization. Thanks to its advanced technology, multiple programs and ease of use, it is a reliable investment for any healthcare facility.
