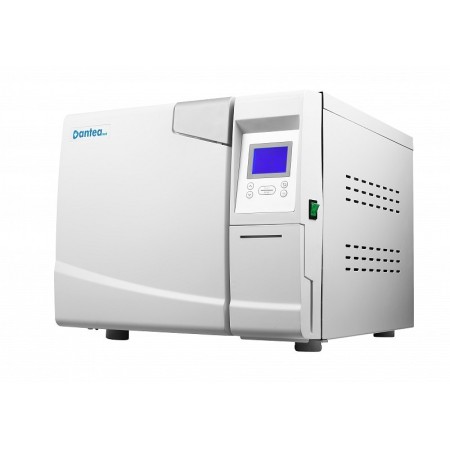

12 L DENEB 12 Class B autoclave with printer and USB port by AnteaMed is a professional class B fractional vacuum sterilizer, designed to ensure maximum effectiveness in the sterilization of solid, porous and hollow instruments, both bagged and unbagged.

Fully automatic and easy to use, this autoclave allows for rapid sterilization thanks to the ability to maintain the temperature between cycles, reducing overall time. The sterilization time is recordable, and the device supports Bowie & Dick and vacuum tests, which are essential for verifying the effectiveness of the process.

Available sterilization programs:

• 121°C - Solids: 24 minutes
• 121°C - Porous bodies: 30 minutes
• 121°C - Hollow bodies: 33 minutes
• 134°C - Solids: 8 minutes
• 134°C - Porous bodies: 14 minutes
• 134°C - Hollow bodies: 17 minutes
• Bowie & Dick Test: 4 minutes
• Vacuum test: 15 minutes

Cycles at 134°C are suitable for solid and ferrous materials, while cycles at 121°C are suitable for thermoplastics, textiles and sensitive materials. It is essential to always follow the manufacturer's instructions of the devices to be sterilized.

Technical features:

• Chamber volume: 12 liters
• Chamber diameter: 20 cm
• Chamber depth: 36 cm
• External dimensions: 65 x 50 x 42 cm (W x W x H)
• Minimum table top dimensions: 46 x 32 cm
• Net weight: 45 kg
• Operating temperature: 121°C and 134°C
• Maximum working temperature: 134 – 137°C
• Maximum working pressure: 0.21 – 0.23 MPa
• Temperature sensor accuracy: 0.1°C
• Pressure sensor accuracy: 0.1 KPa
• Voltage: 220V/230V
• Frequency: 50Hz
• Power consumption: 1.7 KW / 2500VA

Components and equipment:

• LED display (2.5 x 2 cm and 3.8 x 2 cm)
• Door Lock: Mechanical + Electric
• Integrated printer
• USB port
• Double Head Vacuum Pump
• 1 vacuum pump, 1 water pump
• 1 fresh water tank, 1 waste water tank (runtime: 3–4 cycles)
• 1 steam generator
• 1 safety valve
• Antibacterial filter
• Over-temperature and over-pressure protection systems

Environmental conditions of use:

• Ambient temperature: 5°C – 40°C
• Relative humidity: ≤80%
• Pressure: >70 kPa

Certifications and standards:

• EC 1023
• ISO 13485
• UNI EN 13060:2015 (BS EN 13060:2004 + A2:2010)

Warranty: 24 months for all customers.

Technical assistance: RAM Apparecchi Medicali Srl is an authorized service center. In the event of failures, even during the warranty period, you can contact the number 0105761476. Collection, repair or replacement and return are the responsibility of the company within 48 hours of the report.

Right of withdrawal: extended to 10 days also for customers with a VAT number.

The choice of sterilizer and sterilization cycle must be appropriate for the type of load. The suitability of the process must always be verified by validation. Unwrapped instruments are intended for immediate use or for non-sterile use.
