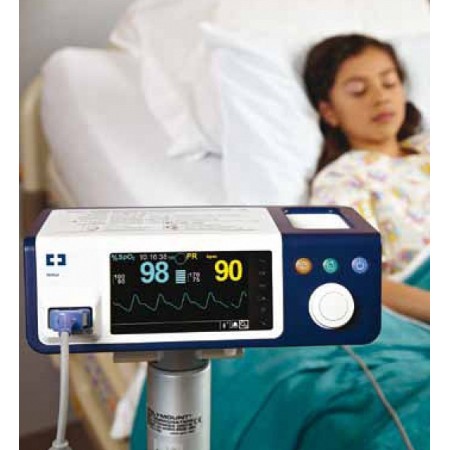

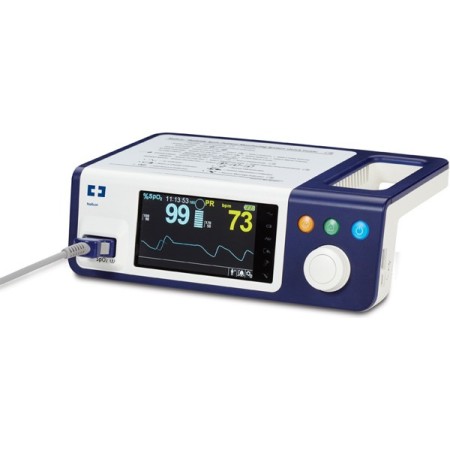

Nellcor Bedside Pulse Oximeter for Bedside Use

MAXIMUM SAFETY IN MONITORING
The Nellcor bedside SpO2 monitoring system features Nellcor’s most innovative digital signal processing technology to provide precise, reliable readings even under conditions of low perfusion and other signal interference, giving clinicians access to the most important information about patients’ respiratory status.

With enhanced features such as continuous SpO2 and heart rate monitoring,

trend data management and SatSeconds alarms, clinicians can reliably detect respiratory complications earlier and therefore intervene more quickly.

- Compact
- Cost-effective
- Intuitive

The Nellcor bedside SpO2 monitoring system offers a compact design with advanced features, an integrated handle and an intuitive color user interface that is easy to use and read, simplifying clinicians’ review and downloading of critical patient data.
Save time and space with this easy-to-use patient monitoring system.

SIMPLE SETUP AND MAINTENANCE
The Nellcor bedside SpO2 monitoring system enables hospital biomedical engineers and technicians to easily configure and efficiently set default values, replace the battery, run diagnostics to troubleshoot performance issues, and carry out general monitor maintenance within the hospital.

In addition, the new system meets standards for electromedical equipment and is RoHS compliant.

- Simple, compact, with intuitive operation.
- Nellcor’s distinctive digital signal processing technology.
- Variable-pitch audible signal lets clinicians perceive moment-to-moment changes in SpO2.
- Battery life of five hours (optional ten-hour battery).
- 96 hours of trends with data captured every four seconds.
- Patient trend data can be saved to a PC for storage and analysis.
- Easy-to-use knob for simple navigation and control of the monitoring system’s display and functions.
- Portable, lightweight, durable, easy to carry with an integrated handle.
- Multilingual graphical user interface.
- Displays plethysmographic waveform, pulse amplitude, SpO2 values and heart rate.
- Multicolor display with black background for ideal contrast.
- Backup audible alarm.
- On-screen help messages to help the user operate the monitor.

Measurement range
- SpO2: 1% - 100%
- Heart rate: 20 to 250 beats per minute (bpm)
- Pulse amplitude: 0.03% - 20%

Accuracy
- Saturation (% SpO2 ± 1 SD)
- Adults: from 70% to 100% ± 2 digits
- Neonates: from 70% to 100% ± 3 digits
- Low perfusion: from 70% to 100% ± 2 digits
- Heart rate: 20 to 250 bpm ± 3 digits
- Low perfusion: 20 to 250 bpm ± 3 digits

Device power supply
Power supply: 100 to 240 V AC, 50/60 Hz, 45 VA
Fuse rating: fast-acting 2 A, 32 V AC/DC; fast-acting 500 mA 32 V AC/50 DC

Battery
Type: lithium-ion
Runtime: at least 5 hours with a new, fully charged battery and no alarms

Operating temperature
Device: 5° C to -40 °C
Transport/storage temperature (in shipping package): -20° C to -60 °C

Weight: 1.6 kg
Dimensions: 82 H x 255 W x 165 D (mm)

Compliance with standards:
EN ISO 9919:2009, EN ISO 80601-2-61:2011
EN IEC 60601-1:2005
EN IEC 60601-1-2: 2nd edition
EN IEC 60601-1:1998 + A1:1991 + A2:1995
EN 60601-1:1990 + A11:1993 + A12:1993 + A13:1996
CAN/CSA C22.2 No. 601.1 M90
UL 60601-1: 1st edition

Equipment classification
Type of protection against electric shock: Class 1 (internally powered)
Degree of protection against electric shock: Type BF – Applied part
Mode of operation: continuous
Electromagnetic compatibility: IEC 60601-1-2:2007
Liquid ingress: IPX2
Degree of safety: not suitable for use in the presence of flammable anesthetics

Output
- Trend data download
- Nurse call function

Display/Indicators
- Pulse amplitude indicator (8 segments)
- Visual indicators: pulse search, audible alarms silenced or acknowledged, interference indicator, battery charging, SatSeconds, plethysmographic waveform.

Alarms
- Audible and visual alarms for high/low saturation and pulse rate values
- SatSeconds alarm management settings: 10, 25, 50 and 100, or OFF
- Audible and visual indicators for low battery and sensor off
- Audible and visual sensor disconnected alarms

- Monitor
- Power cord
- Quick Guide
- User manual
- Interface cable DOC10
- Assorted disposable sensors
