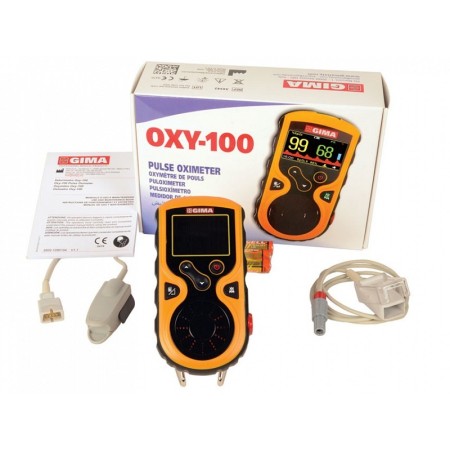

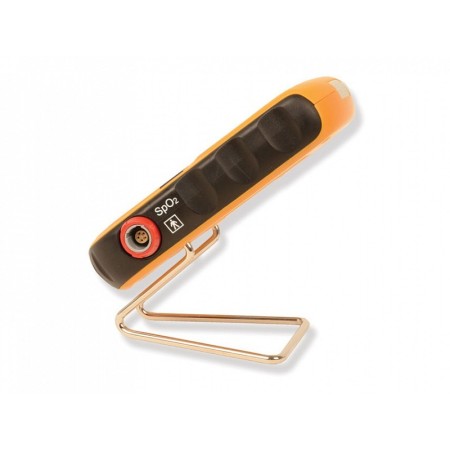

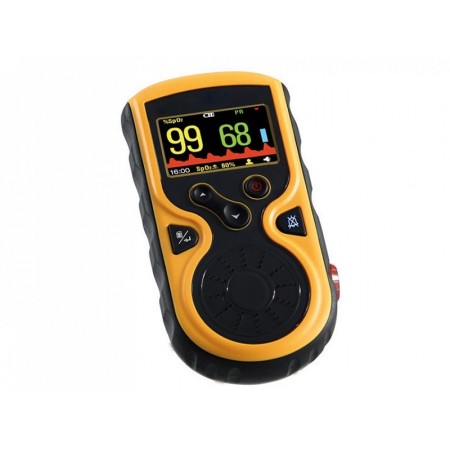

Handheld pulse oximeter OXY-100

The OXY-100 handheld pulse oximeter from GIMA is a compact device, ideal for outpatient applications and emergency operations. It is designed to measure blood oxygen saturation (SpO2), pulse rate and perfusion index (PI). SpO2 values can be displayed numerically with a bar graph or as a full-screen plethysmogram.

Technical features:
- High accuracy and repeatability of results
- Programmable visual and audible alarms
- Data storage for up to 384 hours for later viewing (1/2/4/8 sec.)
- Automatic shut-off
- Manual available in GB, FR, IT, ES, PT

Specifications:
- Oxygen saturation range: 35% - 100%
- Pulse rate range: 30 bpm to 240 bpm
- Perfusion index (PI) range: 0.2% - 20%
- Display: O2 saturation, pulse rate, pulse strength, low battery indicator, perfusion index
- SpO2 accuracy: no more than 3% for SpO2 range from 70 to 100%
- Pulse accuracy: ± 2% of full scale
- Alarm range settings:
- Upper SpO2 limit: 95%
- Lower SpO2 limit: 85%
- Upper pulse rate limit: 100-240 bpm
- Lower pulse rate limit: 30-60 bpm
- Power supply: 3 AA alkaline batteries 4.5 V
- Continuous operating time: over 30 hours
- Dimensions: 145 x 74 x 29 mm
- Weight: 210 g
