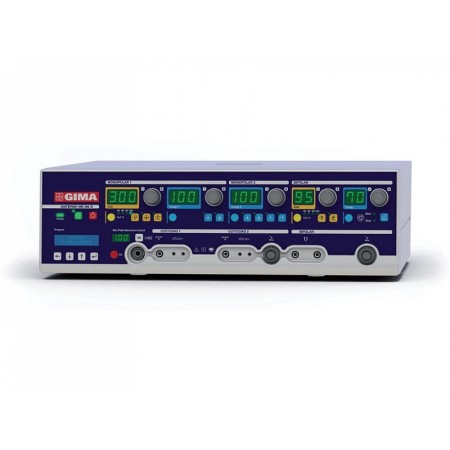

High-frequency electrosurgical unit designed to perform monopolar and bipolar surgery simultaneously. This device offers advanced operational versatility, ensuring precision and safety in various surgical procedures.

Dual operating functions:
- Two output channels for monopolar cutting
- Two settings and independent channels for frequent monopolar coagulation

Controlled cutting procedures:
- Intensified cutting currents for incisions without eschar
- Cutting current with coagulating properties for dissection with controlled bleeding
- Low capacitive coupling in endoscopic procedures with Slow BLEND current

Dual controlled coagulation procedures:
- SPEEDY and DEEP coagulation available for 2 operators
- SPRAY coagulation can be activated using the handpiece or foot pedal

Extensive bipolar features:
- Bipolar cutting with selectable bleeding control
- Slow BLEND cutting currents
- Automatic coagulation start and stop can be activated separately

Complete safety for patient and surgeon:
- Continuous verification of the contact impedance between the patient and neutral plate by means of Skin Plate Electronic Control (SPEC)
- Continuous monitoring of radiofrequency leakage current
- Automatic compensation for mains voltage variations before power and radiofrequency are delivered

Custom procedures:
- Independent selection of coagulation currents and power levels for each operator
- Ten personal procedures that can be configured and recalled immediately

Control of extensions and connection signals:
- Outputs for controlled connections to argon plasma units and smoke evacuators

Automatic self-diagnosis:
- Automatic diagnostic check of the functionality of the electronic unit and connected accessories, with coded indication of any malfunctions detected

Applications:
- Outpatient surgery
- General surgery
- Pediatric surgery
- Plastic surgery
- Thoracic surgery
- Vascular surgery
- Dermatology
- Endoscopy
- Gastroenterology
- Gynecology
- Neurosurgery
- Orthopedics
- Otorhinolaryngology
- Pulmonology
- Urology
- Veterinary medicine

Made in Italy.

Technical specifications:
- Max. monopolar pure cutting power CUT: 300 W - 300 Ohm
- Max. monopolar cut-coag power CUT80%: 250 W - 300 Ohm
- Max. monopolar cut-coag power CUT60%: 200 W - 300 Ohm
- Max. monopolar cut-coag power CUT40%: 150 W - 300 Ohm
- Max. monopolar cutting power ENHANCED: 200 W - 500 Ohm
- Max. monopolar cut-coag power BLEND: 200 W - 300 Ohm
- Max. monopolar SPEEDY coagulation power: 100 W - 500 Ohm
- Max. monopolar DEEP coagulation power: 100 W - 200 Ohm
- Max. monopolar SPRAY coagulation power: 70 W - 2000 Ohm
- Max. monopolar SPRAY ARGON coagulation power: 70 W - 2000 Ohm
- Max. bipolar CUT cutting power: 95 W - 150 Ohm
- Max. bipolar cut-coag cutting power CUT80%: 95 W - 150 Ohm
- Max. bipolar cut-coag cutting power CUT60%: 95 W - 150 Ohm
- Max. bipolar cut-coag cutting power CUT40%: 60 W - 150 Ohm
- Max. bipolar BLEND cut-coag cutting power: 90 W - 150 Ohm
- Max. bipolar COAG coagulation power: 70 W - 100 Ohm
- Monopolar/bipolar operating frequency: 425 kHz / 525 kHz
- Neutral electrode: F
- Selectable power supply: 115-230 Vac
- Mains frequency: 50-60 Hz
- Maximum power consumption: 1000 VA
- Dimensions LxHxD: 470 x 150 x 400 mm
- Weight: 17.5 kg
- Controls: Plate/patient circuit control OC, output power control, self-diagnosis
- Safety: EN60601-1, EN60601-1-2, EN60601-2-2
- Electrical Class: I CF, MDD 93/42/EC Class: II b

Supplied equipment:
- 1 Power cable 5 m
- 1 Autoclavable handpiece with two buttons (30536)
- 5 Handpieces, cold sterilization, with two buttons (30551)
- 1 Plate cable (30559)
- 5 Rem disposable plates (30493)
- 2 Double sealed HP foot pedals
- 3 Short blade electrodes 7 cm
- 3 Long blade electrodes 16 cm
- 3 Short ball electrodes Ø 4 mm, 6 cm
- 1 Electrode cleaning sponge
- 1 User manual (IT, GB)
