DIATERMO MB 160 - mono-bipolar - 160 Watt

High frequency electronic electrosurgical units suitable for medium monopolar surgery and bipolar coagulation.

The operating modes include clean cut, coagulated cut, forced coagulation, soft coagulation and bipolar coagulation with forceps.

It can be used with normal or neutral plate.

The Diatermo MB160 is particularly suitable for very moist operating environments, such as mucous membranes, or for tissues with highly variable compositions, requiring a usable power reserve. For these reasons, the Diatermo MB160 is recommended for gynecological and orthopedic surgery.

Cutting-edge technology: These devices enable highly professional surgical procedures thanks to the safety features derived from superior equipment.

Total safety: OC (open circuit) alarm: an audible signal and a flashing red light warn the user that the plate is not inserted. In this case, cutting and coagulation operations are set to OFF.

OVT Alarm: Control system that prevents the high frequency generating power module from overheating.

Made in Italy.

1 pc.

- Minimum selectable power: 0
- Power step: 1
- Maximum cutting power CUT (W): 160 250 Ohm
- Max cutting-coagulation power BLEND (W): 120 200 Ohm
- Max coagulation power COAG FORCED (W): 100 150 Ohm
- Max coagulation power COAG SOFT (W): 80 100 Ohm
- Maximum bipolar power BIPOLAR (W): 60 100 Ohm
- Working frequency: 600 kHz
- Weight kg: 7
- Dimensions WxHxD mm: 260 x 110 x 265
- Selectable power supply (Vac): 115 -230
- Mains frequency (Hz): 50-60
- 230Vac (5x20) delayed fuses: 2x 3.15A
- 115Vac (5x20) delayed fuses: 2x 6.3A
- Maximum power consumption (VA): 350
- Maximum current absorbed (A) at 230Vac: 1.5
- Maximum current absorbed (A) at 115Vac: 3
- Sound emission adjustable in 5 steps (from 55- to 75dBA): YES
- Self-diagnosis of faults: YES
- Power output control: YES
- Possibility of connecting single and split electrodes: YES
- Save last used settings: YES
- Electrical classification (EN60601-1): I CF
- MDD 93/42/EEC classification: II B
- Neutral electrode: F

- MB handpiece with 2 buttons, disposable
- Operating pedal 30577 (alternative to the use of the handpiece)
- Flat metal plate with cable 30564

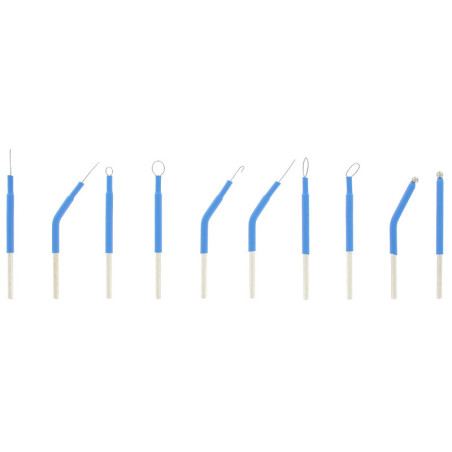

- Kit of 10 autoclavable electrodes diameter 2.4 mm
- User manual in IT, GB, ES, FR, PL.
- 2 meter power cable
