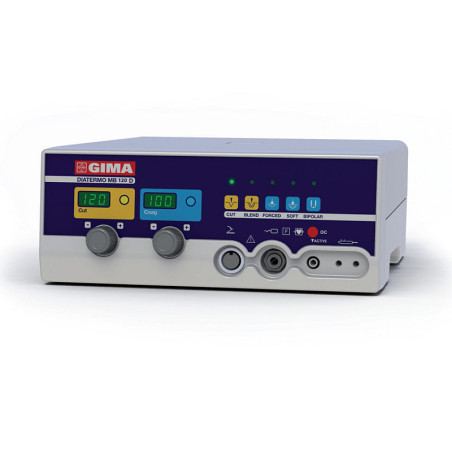

Diatermo MB 120D GIMA is a high-frequency electronic electrosurgical unit designed for minor and intermediate surgery, in both monopolar and bipolar modes, with a maximum power of 120 watts.

Thanks to intuitive selection of operating functions, it allows you to perform:

Operating functions:
- Pure cut (CUT): up to 120 W at 250 ohms
- Blend cut (BLEND): up to 90 W at 200 ohms
- Superficial coagulation (FORCED COAG): up to 80 W at 150 ohms
- Deep coagulation without charring (Soft COAG): up to 60 W at 100 ohms
- Bipolar coagulation (BIPOLAR): up to 40 W at 100 ohms (with dedicated adapter)

The device incorporates a microcontroller for continuous monitoring of operating functions and a digital display of the delivered power, ensuring maximum precision and safety during the procedure. It is also equipped with a system to check that the neutral electrode is functioning correctly, for safe and reliable surgery.

The functions can be switched directly from the electrode-holder handpiece, which also allows power activation, avoiding distractions from the surgical field. Alternatively, the watertight foot pedal included in the supply can be used.

Technical specifications:
- Operating frequency: 600 kHz
- Selectable power supply: 115 - 230 Vac
- Mains frequency: 50 - 60 Hz
- Maximum power consumption: 300 VA
- Dimensions (WxHxD): 254 x 104 x 288 mm
- Weight: 5 kg
- Neutral electrode: type F
- Checks: plate/patient circuit, emitted power, self-diagnosis
- Digital adjustment of power and sound intensity
- Automatic storage of the latest settings

Safety and compliance:
- Standards: EN60601-1, EN60601-1-2, EN60601-2-2
- Electrical classification: I CF
- Compliance: MDD 93/42/EC Class II b

Accessories included:
- Disposable MB handpiece with 2 buttons
- Watertight foot pedal (code 30577)
- Flat plate with cable (code 30564)
- Kit of 10 autoclavable electrodes Ø 2.4 mm
- Power cable, 2 m
- User manual in Italian and English (available on request in French, Spanish and Polish)

Made in Italy, Diatermo MB 120D is the ideal solution for healthcare facilities requiring precision, safety and versatility in the operating room.
