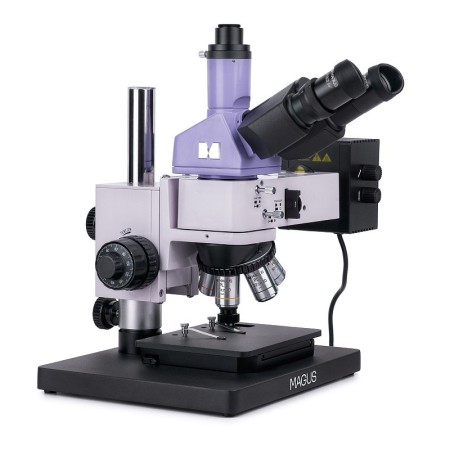

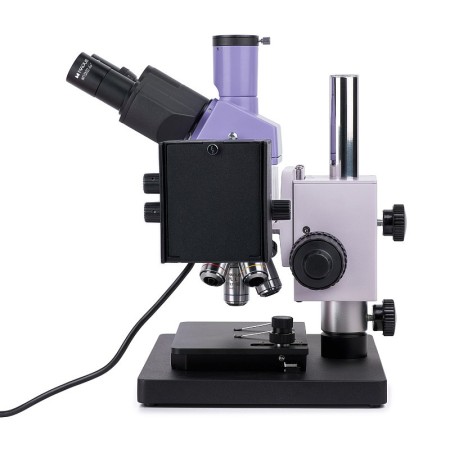

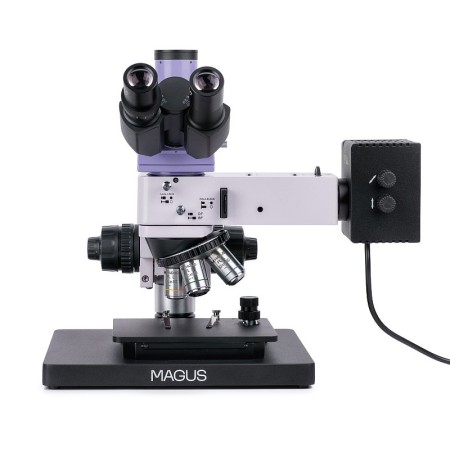

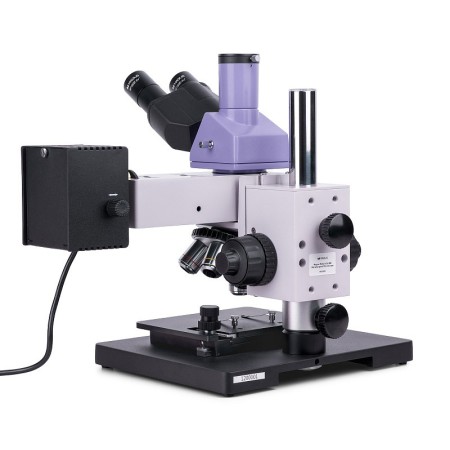

MAGUS Metal 630 BD metallurgical microscope for bright-field, dark-field, and polarization microscopy techniques. Powerful halogen illumination produces a high-quality image with any objective lens and microscopy method. The microscope is designed for quality control and the study of the microstructure of semiconductor materials, metals, and opaque objects. It is used for research at production facilities, research center laboratories, and university departments.

Microscope in use »

Optics

The trinocular head is equipped with a trinocular tube for mounting a digital camera (not included). The light beam can be directed to the eyepieces or the trinocular tube using the camera/eyepiece light-path selector knob. The trinocular head is inclined at 30° for comfortable observation. The diopter adjustment ring is located on the left optical tube.

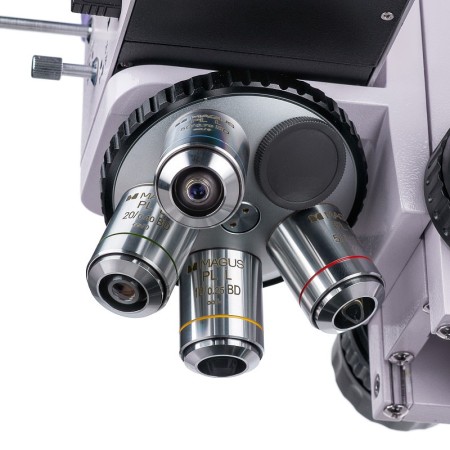

Once the objectives included in the kit are mounted on the revolving nosepiece, one slot will remain available for an additional objective. All standard objectives are plan achromatic, with a long working distance, and suitable for bright-field and dark-field microscopy.

Illumination

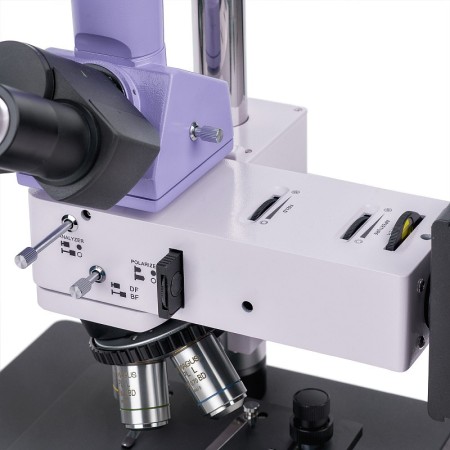

For dark-field observations, the microscope features a higher-power halogen lamp (50 W). The reflected-light illumination system also includes a set of filters, field and aperture diaphragms, a dark-field device, an integrated analyzer, and a removable polarizer. The apertures and light source can be centered. Köhler illumination can be configured.

Stage and focusing mechanism

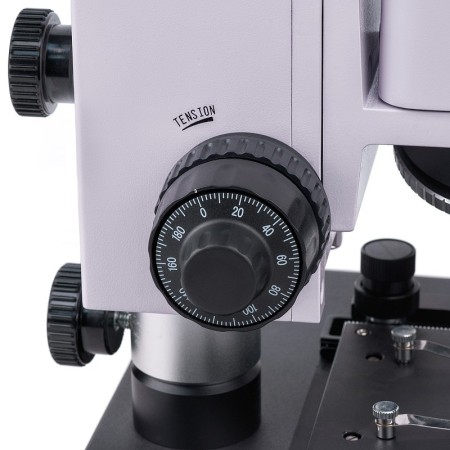

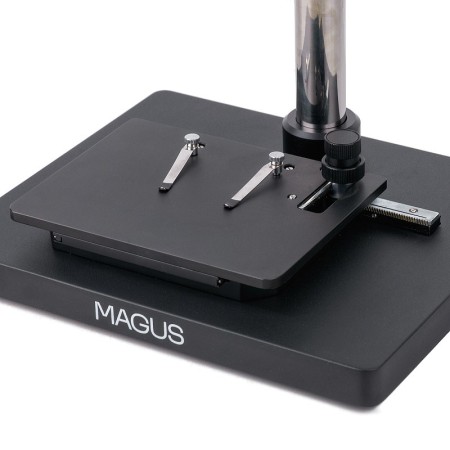

The microscope features an attractively designed stand and focusing mechanism, and the sample being analyzed can be of any size and height. It is also compact, allowing the microscope to be placed on surfaces up to 40 cm high. The coarse and fine focusing knobs are coaxial and located on both sides of the microscope body. Coarse focus tension can also be adjusted.

Accessories

Additional accessories for the MAGUS Metal 630 BD microscope can be ordered separately. These include compatible eyepieces, long-working-distance objectives for bright-field and dark-field techniques, calibration slides, and digital cameras.

Key features:

• Suitable for studying opaque samples of any height and size
• Trinocular head with a trinocular tube for mounting a digital camera and a 100:0 and 0:100 beam splitter
• Reflected-light observations using bright-field, dark-field, and polarization microscopy techniques
• The power of the halogen light source has been increased to 50 W (suitable for dark field)
• Aperture and field diaphragms for Köhler illumination and a set of color filters; centering of both diaphragms and the light source.
• Compactly designed stand for mounting the microscope in limited spaces
• A wide range of optional accessories

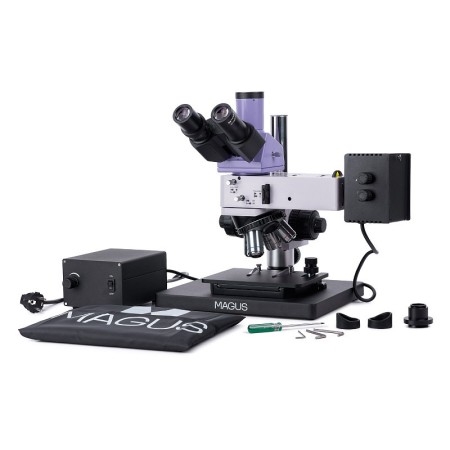

The package includes:

• Stand with focusing mechanism, stage, and revolving nosepiece
• Illuminator for reflected-light observations with a bulb housing
• Trinocular head
• Infinity-corrected plan achromatic objective: PL L5x/0.12 BD WD 9.7 mm
• Infinity-corrected plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
• Infinity-corrected plan achromatic objective: PL L20x/0.40 BD WD 7.2 mm
• Infinity-corrected plan achromatic objective: PL L50x/0.70 BD WD 2.5 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs.)
• 1x C-mount adapter
• Allen key
• Base with power input
• Power cord
• Power cord for reflected-light illuminator
• Dust cover
• User manual and warranty certificate

Available on request:

• 10x/22 mm eyepiece with reticle
• 12,5x/14 mm eyepiece (2 pcs.)
• 15x/15 mm eyepiece (2 pcs.)
• 20x/12 mm eyepiece (2 pcs.)
• 25x/9 mm eyepiece (2 pcs.)
• Infinity-corrected plan achromatic objective: PL L40x/0.60 BD WD 3.0 mm
• Infinity-corrected plan achromatic objective: PL L60x/0.70 BD WD 1.9 mm
• Infinity-corrected plan achromatic objective: PL L80x/0.80 BD WD 0.8 mm
• Infinity-corrected plan achromatic objective: PL L100x/0.85 (dry) BD WD 0.4 mm
• Digital camera
• Calibration slide
