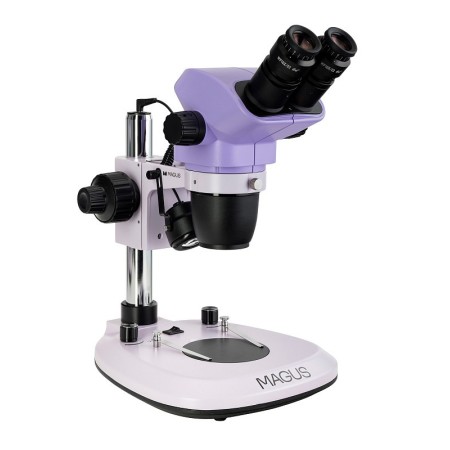

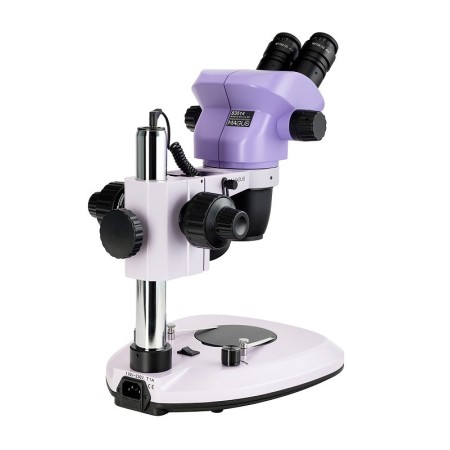

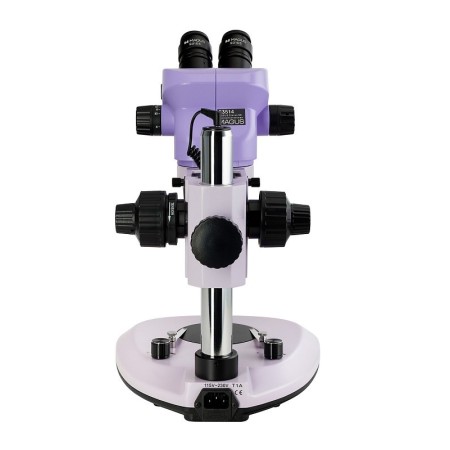

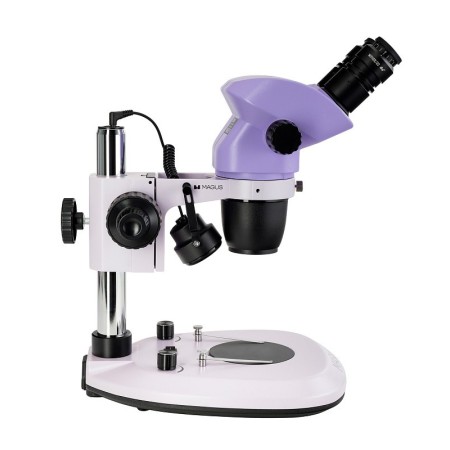

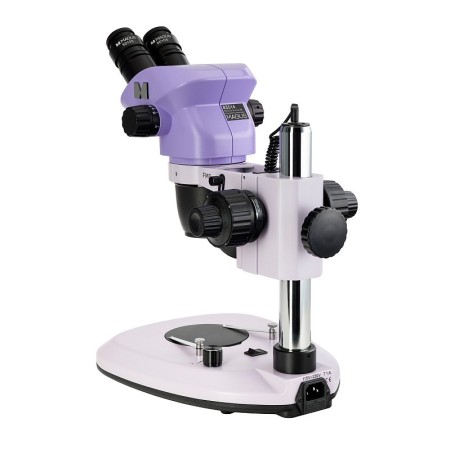

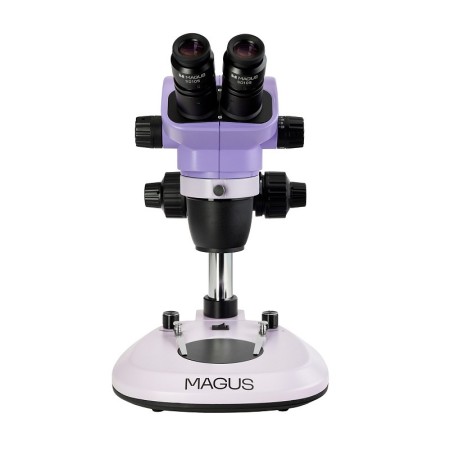

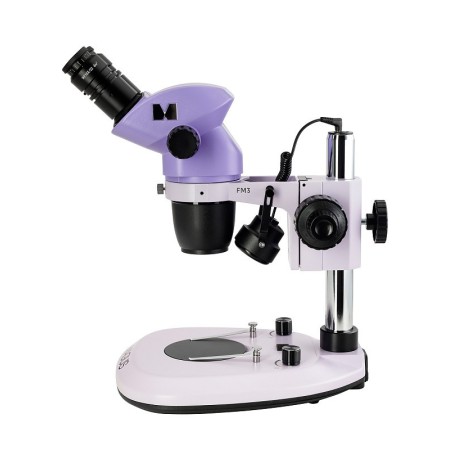

MAGUS Stereo 8B is a binocular stereoscopic microscope with a rotating head. Thanks to it, it is possible to work on three-dimensional samples. The microscope generates a three-dimensional image with a large depth of field and transmits an authentic image of the object. This allows you to perform the necessary manipulations on the object. The Greenough type microscope with independent optical channels has a stereoscopic angle of 15°, and the working area varies from 105 mm (basic configuration) up to 177 mm (optional). The basic methods of observation with the device in transmitted and reflected light (bright field) can be supplemented by the dark field method and simple polarization with accessories.

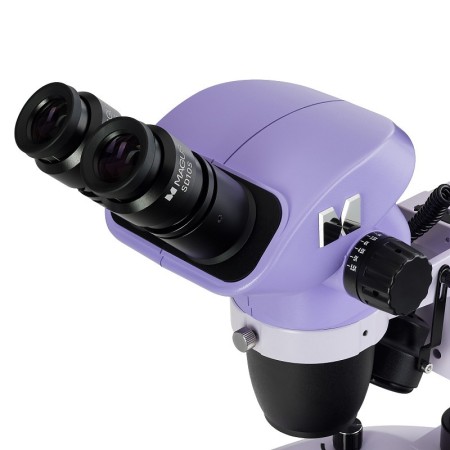

The microscope head includes two tubes and is completed with 10x magnification eyepieces with a 22 mm field of view. A digital camera can be mounted on one of the tubes instead of an eyepiece. The head rotates around its axis and can be placed in any position.
The main magnification is provided by the zoom lens. Together with the smooth zoom, it adjusts the focal length of the optical system so that the object is always in focus. The MAGUS Stereo 8B microscope has a zoom ratio of 8.4:1. You can change the magnification or field of view as well as adjust the working distance by means of auxiliary objective lenses.
The sharpness is adjustable by coaxially positioned knobs, which regulate the fine and coarse focus. The fine focus is recommended for magnifications greater than 40x. The handles are on the sides of the stand. The user can adjust the stiffness of the coarse focus path.

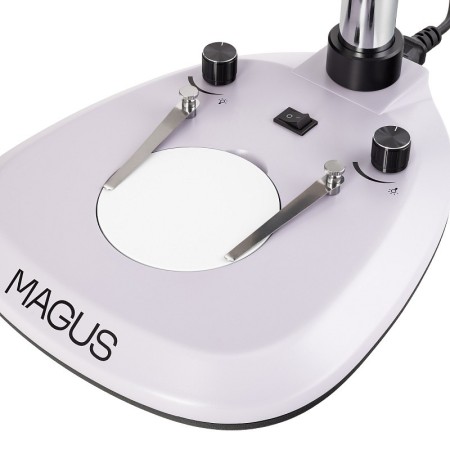

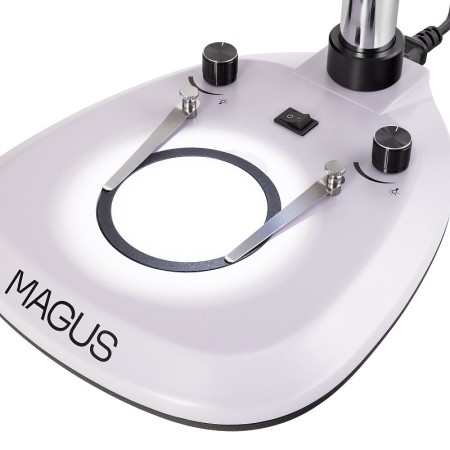

The microscope can be used to observe transparent and opaque samples. For this reason, the stage is equipped with two plates: a transparent one and a black and white one. The first one is necessary for observations in transmitted light conditions: The object receives a soft and homogeneous illumination. The second plate is installed when using reflected light. The surface of the plate must be in contrast with the object.

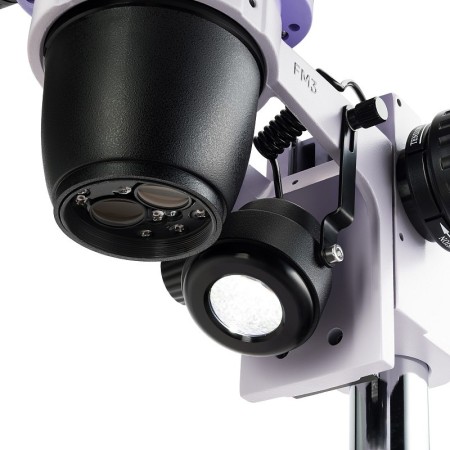

The object is illuminated by two LED illuminators, transmitted and reflected light. Both have a power of 3 W with a lifespan of 50,000 hours.
This line of microscopes is complemented by a wide range of accessories. The user can purchase the necessary eyepieces and auxiliary objective lenses to adjust the magnification, field of view and working distance. Complete the set with a digital camera to capture observations or display them on a large screen. Together with a camera or an eyepiece with a graduated scale, you can use a calibration slide to measure a sample or its individual elements. For effective observation of a sample, there are several types of illuminators: a classic ring illuminator, a ring illuminator with a polarizer for studying smooth metal objects (removes reflections), a ring illuminator with sector control to adjust the correct incidence of light and shadow, and a flexible neck illuminator that can be aimed at a specific point. To install the microscope head in the optimal position, you can select a correct stand. Placing the object on the mechanical stage allows it to move along the two axes smoothly and regularly. For polarized light or dark field observations, the microscope can be equipped with a dark field condenser and a polarization device. If the condenser is used with a gem clip, the stereoscopic microscope becomes an excellent tool for jewelry work.
Key Features:
- The Greenough optical scheme provides a stereoscopic angle of 15°: the objects of the observations are visible in volume and with clear relief.
- The zoom lens smoothly changes the object magnification by 8.4x while simultaneously adjusting its sharpness.
- The main observation methods are in transmitted and reflected light in bright field, with integrated 3 W illuminators.
- Additional methods can be used with optional accessories, such as dark field and simple polarization methods.
- A wide range of accessories can make microscope observations more effective
The package contains:
- Base with light source for transmitted light observations, integrated power supply and a stand with a focusing mechanism
- Microscope head – objective with binocular head
- 10x/22 mm eyepiece with long eye relief and diopter adjustment (2 pcs.)
- Black and white plate
- Transparent plate
- Oblique reflected light illuminator
- AC power cord
- Dust cover
- User manual and warranty certificate
Available on request:
- 10x/22 mm eyepiece with graduated scale
- Eyepiece 15x/16 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Eyepiece 30x/8 mm (2 pcs.)
- 0.5x auxiliary objective lens
- 1.5x auxiliary objective lens
- 2x auxiliary objective lens
- Polarizer tool
- Dark field condenser
- Ring illuminator
- Ring light with polarizing filter
- Ring illuminator with sector shift
- Flexible neck illuminator
- Mechanical table
- Universal stage with focusing attachment
- Gem clip
- Digital camera
- Calibration slide
Brand | MAGUS |
Warranty | 5 letters |
EAN | 5905555019796 |
Package size (LxWxH) | 52x37x36 cm |
Shipping weight | 7.5 kg |
Type | stereo/instrumental |
Header | binocular |
Vertical tube | 360° rotatable, lockable in any position |
Head tilt angle | 45° |
Magnification, x | 8.4:1 zoom ratio, 6.5–55 in basic configuration (*optional: 3.25–330) |
Magnification range | up to 200x |
Eyepiece tube diameter, mm | 30 |
Eyepieces | 10x/22 mm, long eye relief (*optional: 10x/22 mm with graduated scale, 15x/16, 20x/12, 25x/9, 30x/8) |
Goals | 0.65–5.5х (*optional: when using additional eyepieces and auxiliary objectives: 3.25–330х) |
Working distance, mm | 105 ((*optional: with the use of additional eyepieces and auxiliary objectives: 177, 47, 26) |
Interpupillary distance, mm | 54 — 75 |
Linear field of view, mm | 33.8 — 4 |
Coffee table, mm | Ø95 |
Coffee table features | white/black plate, transparent plate |
Eyepiece diopter adjustment, diopters | ±5D on each eyepiece |
Eyepiece diopter adjustment | yes |
Fire | coaxial, coarse (45 mm, with coarse focus tension adjustment) and fine (0.002 mm)współosiowy, zgrubny (z regulacją napięcia zgrubnej regulacji ostrości) i precyzyjny (0.002 mm) |
Lighting | LED |
Brightness adjustment | yes |
Diet | AC mains, 115–230 V, 50/60 Hz |
Type of light source | Reflected light: oblique illuminator – 3 W LED Transmitted light: 3 W LED |
Operating temperature range, °C | 0 — 40 |
Possibility to connect additional equipment | polarizing instruments, dark field condenser, auxiliary objectives (0.5х, 1.5х, 2х) |
User level | expert users, professionals |
Assembly and installation difficulty level | complicated |
Optical scheme | Greenough stereomicroscope |
Application | for applied research |
Lighting position | double |
Research method | clear field |
Set with pencil case/case/bag | dust cover |
