A stereoscopic microscope is an indispensable instrument for the detailed study of three-dimensional specimens, as it reproduces an object's virtual volume and allows its structure to be examined, providing a clear image of its topography. The device is equipped with illuminators for reflected- and transmitted-light observation, enabling work with opaque and transparent specimens. Polarized-light and dark-field methods are also available for observation.
The advantages of the Greenough-type optical system are its great depth of field and the three-dimensional image, thanks to the stereoscopic angle of 15°. A stereoscopic microscope magnifies an object and shows its spatial position, producing an upright image. The microscope is therefore ideal for manipulating objects within a working area from 105 to 177 millimeters. Stereoscopic microscopes are widely used for quality control in restoration, assembly, welding, jewelry-making, and similar processes.

Microscope in use »

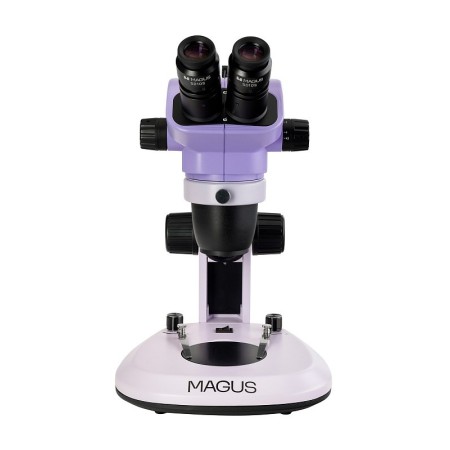

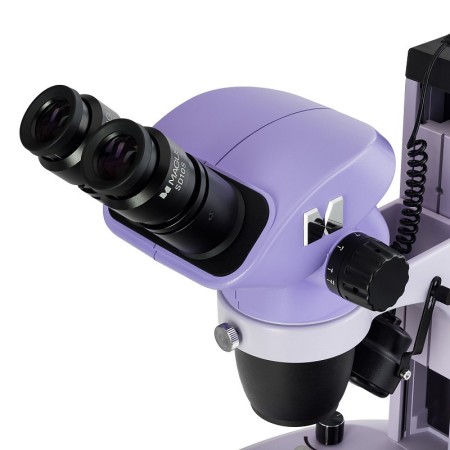

The MAGUS Stereo 7B microscope head has 2 eyepiece tubes. If necessary, a digital camera can be inserted into either tube. For comfortable and effective observation, the head can be rotated by 360° and locked in any position. The microscope is supplied with 2 10x eyepieces with a field of view of 22 mm. Diopter adjustment is available directly on the eyepieces, and the eye relief is a convenient distance for eyeglass wearers.

The zoom objective changes the magnification of the object by 6,7x without blurring the image. The image is three-dimensional and upright. Magnification or field of view can be increased, and the working distance changed, by using auxiliary objectives with different magnifications.

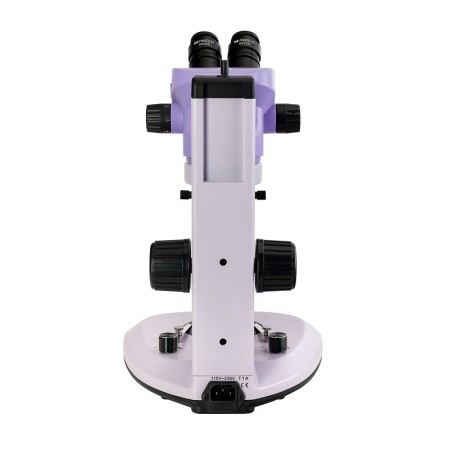

The MAGUS Stereo 7B model has coarse focusing only. There are two focusing knobs, one on each side of the stand. The tension of the focusing movement can be adjusted.

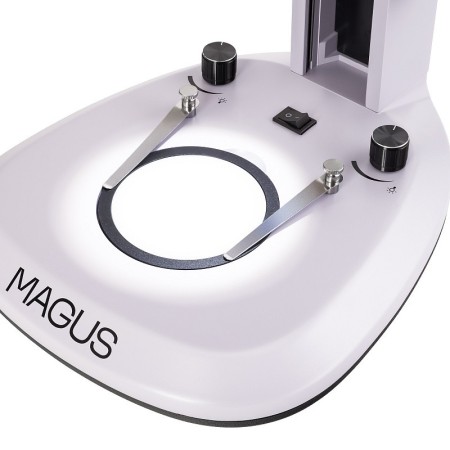

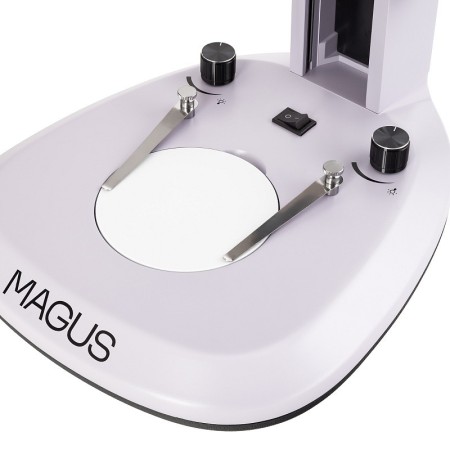

The stage comes with two different plates. One is transparent for observations in transmitted light, when the light is diffused to provide the object with soft, even illumination. The other plate is black and white; it is placed on the stage according to the contrast of the object being observed and is used for opaque specimens.

The microscope is equipped with illuminators for transmitted- and reflected-light observation. Reflected light provides oblique illumination. Both illuminators use 3 W LEDs with a service life of 50000 hours.

The microscope can be equipped with a wide range of separately purchased accessories. These include eyepieces and auxiliary objectives that provide different magnifications and change the microscope's field of view and working distance. Digital cameras with a wide range of features allow images to be viewed on a screen or observations to be documented. Calibration slides are available for measuring objects. For studies using dark-field or polarized-light methods, the microscope can be equipped with a dark-field condenser or a polarizing device, respectively. Several illuminators are available to expand the microscope's capabilities: a conventional ring illuminator, a ring illuminator with a polarizer or sector switch, and a flexible illuminator. Different types of stands allow the microscope head to be positioned optimally over the work surface, thereby expanding the working area.

Key features:

• Stereoscopic microscope with a Greenough-type optical system and a stereoscopic angle of 15°
• Equipped with transmitted- and reflected-light illuminators for observing transparent and opaque objects
• Supports observation using polarized-light or dark-field methods
• The binocular head rotates by 360° and can be locked in any intermediate position
• The microscope produces an image magnified from 6.7 to 45x without changing the object's spatial orientation, making it convenient for object manipulation
• Working area from 105 to 177 mm
• The model features a coarse focusing mechanism with two knobs

The package includes:

• Base with a light source for transmitted-light observation, built-in power supply, and stand with a focusing mechanism
• Microscope head – objective with binocular head
• 10x/22 mm eyepiece with long eye relief and diopter adjustment (2 pcs.)
• Black-and-white plate
• Transparent plate
• Oblique reflected-light illuminator
• AC power cable
• Dust cover
• User manual and warranty certificate

Available on request:

• 10x/22 mm eyepiece with scale
• 15x/16 mm eyepiece (2 pcs.)
• 20x/12 mm eyepiece (2 pcs.)
• 25x/9 mm eyepiece (2 pcs.)
• 30x/8 mm eyepiece (2 pcs.)
• Auxiliary objective lens 0,5x
• Auxiliary objective lens 1,5x
• 2x auxiliary objective lens
• Polarizer
• Dark-field condenser
• Ring illuminator
• Ring illuminator with polarizing filter
• Ring illuminator with sector switch
• Flexible-neck illuminator
• Mechanical stage
• Universal stage with focusing mount
• Gem clip
• Digital camera
• Calibration slide
