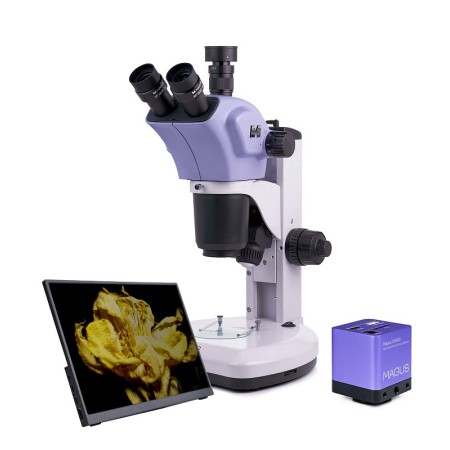

MAGUS Stereo D9T LCD digital stereoscopic microscope

The MAGUS Stereo 9T stereomicroscope produces an upright, three-dimensional image and has a large working distance. You can examine samples and also perform experiments on them. The Greenough-type optical design produces sharp, three-dimensional images, essential for high-precision observations. The microscope features zoom and two illuminators (transmitted and reflected light), and can be upgraded with additional accessories. An excellent choice for restoration work, soldering, model making, machinery repairs, and quality control.

Microscope in use »

Digital camera

MAGUS CHD10 is a camera with an HDMI interface.
The camera is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 pixels.
This is a standalone camera that does not require a computer connection or the installation of additional software. The camera can be connected directly to a TV, monitor, or projector to display an image.
The HDMI interface enables fast and stable transfer from the camera to an external screen. Video is recorded at 60 fps.
The camera combines a high FPS rate and high HDMI bandwidth. As a result, videos are vivid, with no freezing or dropped frames. At maximum resolution, the image is highly detailed, moving objects are visible without errors, and motion is displayed without delays.

Monitor

The MAGUS MCD monitors work with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The camera is connected via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. Even when viewing the screen from a wide angle, the image is not distorted. The screen size is 13.3".
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.

Optics

The microscope features a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included; however, the digital camera must be purchased separately. The trinocular head rotates 360°. The zoom objective used with a 10x eyepiece offers magnification from 7x to 63x. Thanks to the zoom objective, magnification can be changed without losing focus. Using additional objectives (not included), you can change the microscope's magnification range, working distance, and field of view. Optional accessories allow you to increase the microscope's magnification up to 315x.

Illumination

The work area is illuminated by two LED illuminators: a 5 W transmitted-light illuminator and a 3 W (oblique) reflected-light illuminator. Both illuminators are powered by an AC source, are bright, and do not change color temperature when the brightness is adjusted. They have a service life of 50000 hours.

Stage and focusing mechanism

One of the included plates is placed on the stage: a plate that is black on one side and white on the other, a white plate, or a transparent plate. The first plate is used for observing opaque objects and produces a high-contrast image. Dark-colored samples are examined on the white side, while light-colored samples are examined on the black side. The white and transparent plates are used to observe translucent or transparent samples when maximum brightness and even illumination of the work area are desired.

The microscope features coarse and fine focusing mechanisms. Fine focusing is used at magnifications greater than 40x. Coarse focusing has tension adjustment.

Accessories

Additional accessories such as eyepieces, auxiliary lenses, calibration slides, and digital cameras can be used to expand the capabilities of the microscope. A device for polarized-light observations can also be installed.

Key microscope features:

• Zoom objective with a ratio of 9:1
• Trinocular head rotates 360°, trinocular tube for capturing photos and videos
• Greenough-type optical design, three-dimensional image with a large depth of field
• Transmitted and (oblique) reflected-light illumination, two LED illuminators
• Optional accessories to enhance microscope performance

Key camera features:

• Standalone camera operation without a PC connection or software installation
• HDMI interface for stable, high-speed data transfer
• Resolution of 1920x1080 pixels, an ideal choice for displaying images on a Full HD monitor
• 60 fps for observing moving samples, video recording, and moving the sample without delays or jerks
• The back-illuminated color SONY Starvis CMOS sensor provides low-noise images and high light sensitivity, even in low-light conditions. It can produce sharper, brighter images with saturated colors
• Software for recording and editing photos and videos, external display, linear and angular measurements

The package includes:

• MAGUS CHD10 digital camera (digital camera, HDMI cable (1.5 m), mouse with USB, 32 GB SD memory card, 12 V/1 A AC power adapter (Euro), user manual and warranty certificate)
• MAGUS MCD20 LCD monitor
• Base with light source for transmitted-light observations and power supply
• Stand with focusing mechanism
• Trinocular head
• 10x eyepiece/22 mm (2 pcs.)
• Black-and-white stage plate
• White plate
• Transparent plate
• Oblique reflected-light illuminator
• C-mount adapter
• AC power cable
• Dust cover
• User manual and warranty certificate

Available on request:

• 15x eyepiece/15 mm (2 pcs.)
• 16x eyepiece/15 mm (2 pcs.)
• 20x eyepiece/12 mm (2 pcs.)
• 25x eyepiece/9 mm (2 pcs.)
• 0.5x auxiliary objective
• 2x auxiliary objective
• Reflected-light ring illuminator
• Polarization accessories
• Calibration slide
