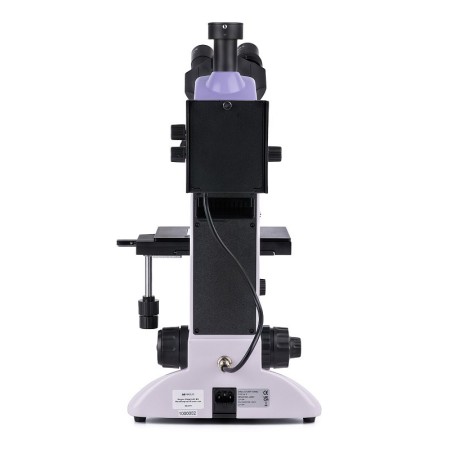

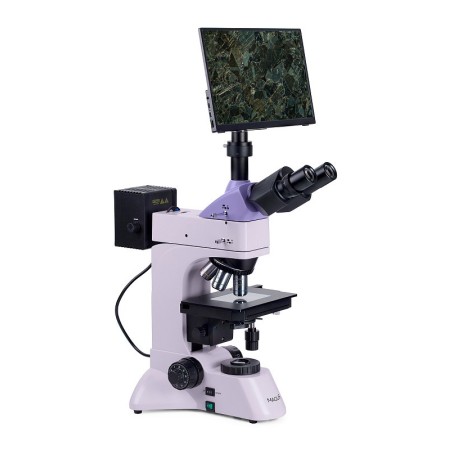

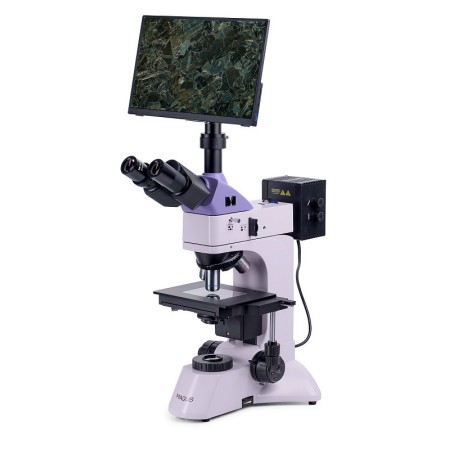

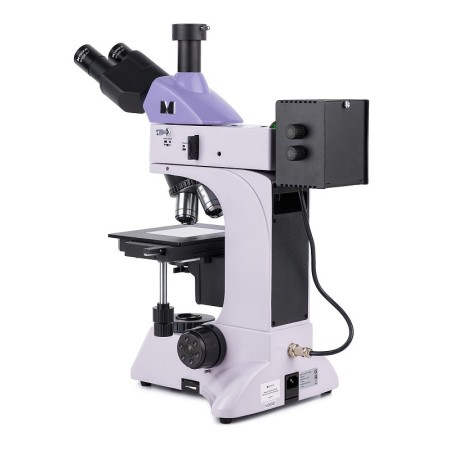

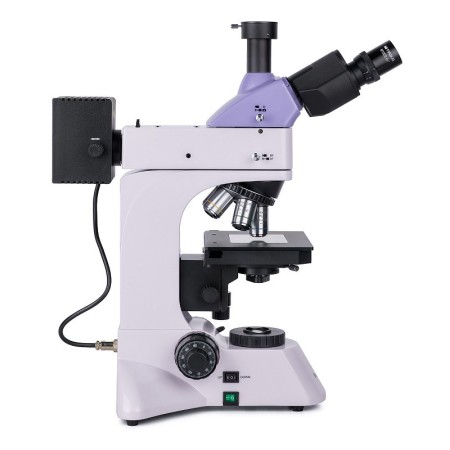

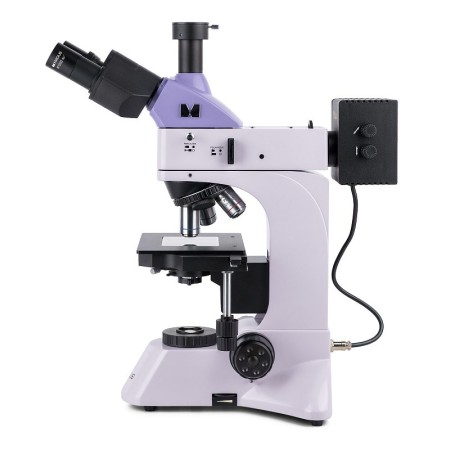

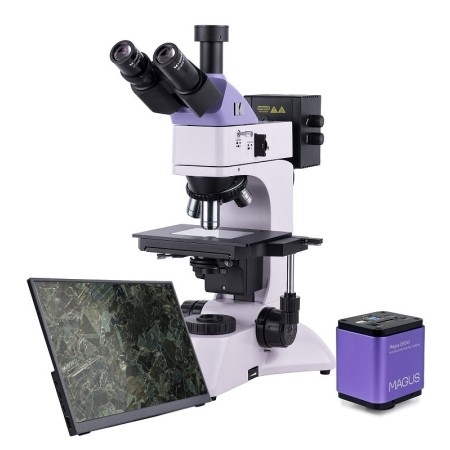

The MAGUS Metal D600 digital metallographic microscope BD LCD is designed for the study of objects in reflected light using bright-field, dark-field and polarization microscopy techniques. The microscope is used to examine metal and semiconductor samples, as well as other highly reflective polished and flat samples. The transmitted light technique allows the examination of translucent samples such as thin films and particles stuck on filters. The microscope can be used in mechanical and metallurgical engineering, engineering and quality control laboratories and polytechnics.
Digital camera

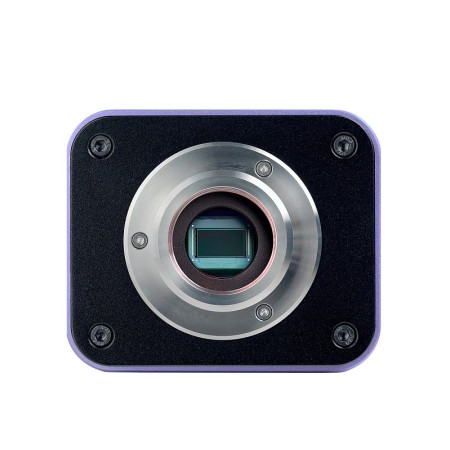

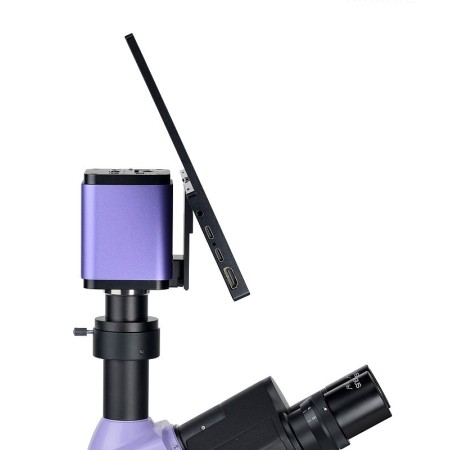

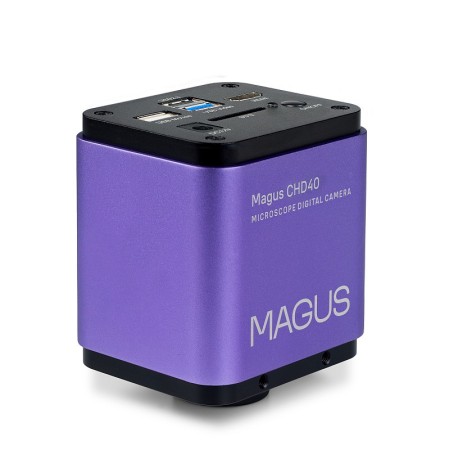

MAGUS CHD40 is an HDMI digital camera with three video interfaces and automatic switching between Full HD and 4K based on the monitor resolution.
The camera features an 8 MP sensor and produces lifelike images at 4K resolution (3840x2160 px) when connected via HDMI or USB 3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080 px).
The camera uses an HDMI interface to connect directly to a TV, monitor or projector. This way, the camera works independently without a connection to a PC. The HDMI interface enables fast and stable transfer speed from the camera to the external display. You can connect the camera to a PC via Wi-Fi or USB 3.0. The video is recorded at 30 fps.
The camera combines high FPS speed and high HDMI bandwidth. Videos are therefore brilliant without any blocks or jumps between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors and the moving object is displayed without delays.
Monitor

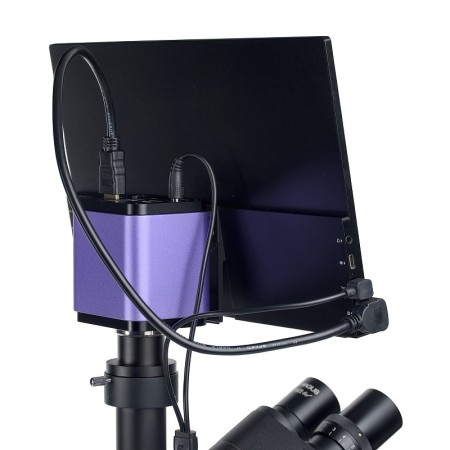

The MAGUS MCD40 monitor is designed to use a MAGUS microscope display system. It is connected to a camera mounted on the microscope to display images in real time. It supports cameras with HDMI connection and 4K resolution. The screen is 13.3 inches. The IPS matrix provides bright images with wide viewing angles. When looking at the display from the side, the color reproduction is not distorted. You can place the display on a table or shelf using a foldable stand or install it directly on the camera or microscope base.
Optics
The trinocular head is equipped with a trinocular tube to accommodate a digital camera. The beam splitter directs the light onto the camera, in two positions: 100:0 and 0:100. The light beam reaches the eyepiece or the trinocular tube. Diopter adjustment ring on the left eyepiece.

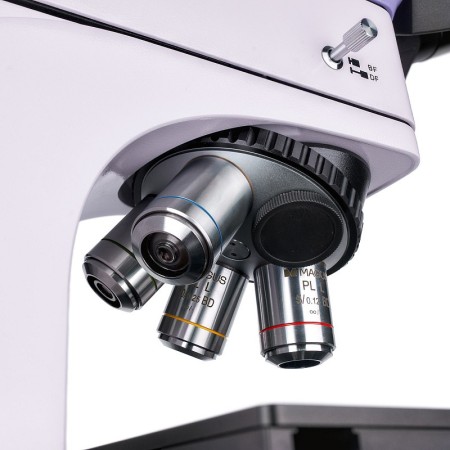

The magnification of the microscope in the basic configuration is 50–400x. Additional objectives and eyepieces will increase the magnification range. The microscope uses plan achromatic objectives with a long working distance suitable for bright and dark field microscopy techniques. There are five slots in the nosepiece to mount objectives. Four objectives are included and one is optional. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.
Lighting

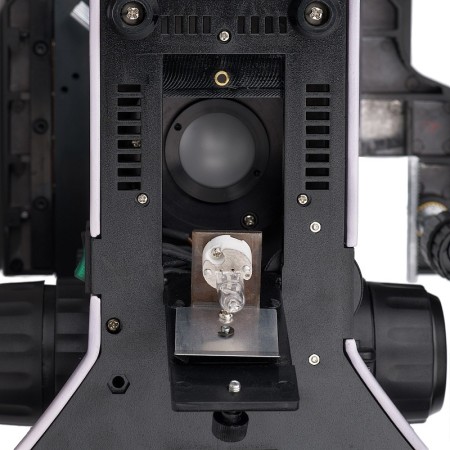

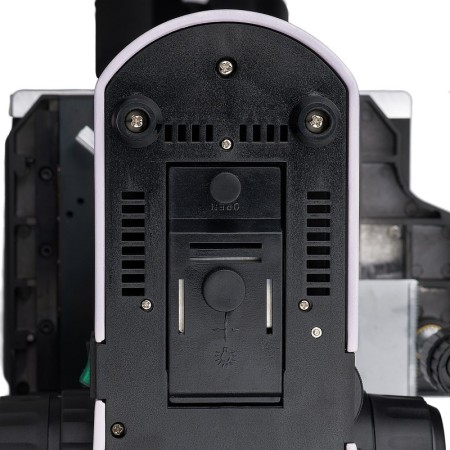

The illumination uses warm halogen lamps that do not tire the eye during long-term observations. The transmitted light illuminator has a power of 30 W and the reflected light illuminator has a power of 50 W, which ensures comfortable observation by dark field microscopy.

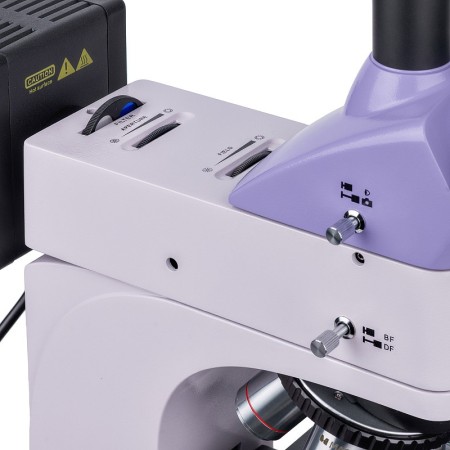

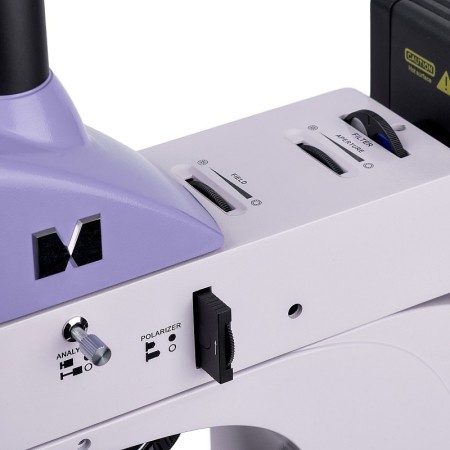

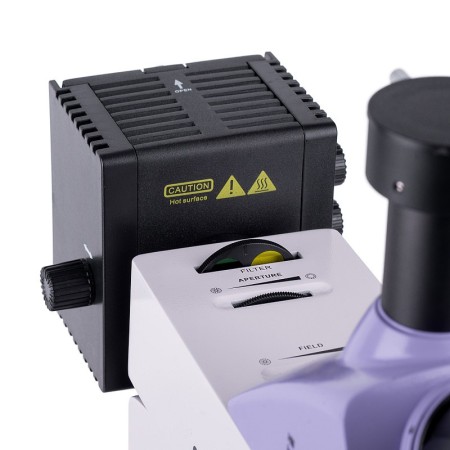

The reflected light illumination system contains: a dark field device, polarization device, centerable field and aperture diaphragms for the Köhler illumination method and color filters. The light source can also be centered.

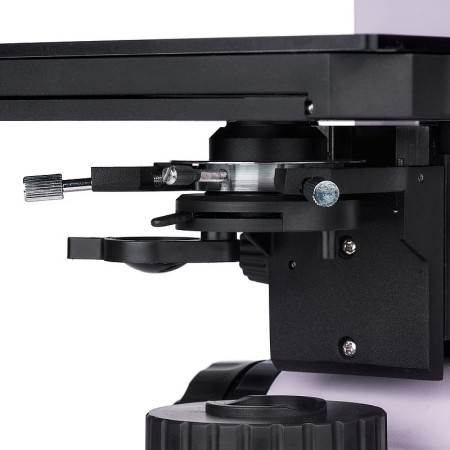

The transmitted light illumination system includes: a condenser with a flip-up lens for low magnification objectives, an aperture and a field diaphragm for the Köhler method.
Stage and focusing mechanism

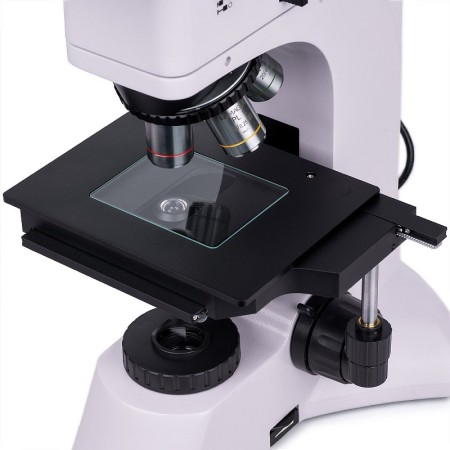

The sample moves with the stage along the two axes. The height of the examined sample must not exceed 20 mm. The stage has a transparent slide for the observation of translucent samples.

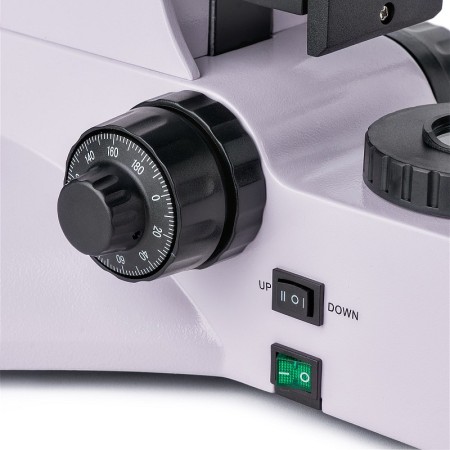

The focus is adjusted by means of coarse and fine focusing knobs located on both sides of the bottom of the microscope, allowing the observer to place his hands freely on the table rather than holding them in the air. The coarse focusing mechanism has a locking knob on the right and a tension adjustment knob on the left.
Accessories
The range of accessories compatible with the MAGUS Metal 600 microscope BD includes: long-distance objectives for dark and bright field observations, eyepieces, calibration slides and digital cameras.
Key Features of the Microscope:
- Observations of flat opaque and polished samples up to 20 mm in reflected light using dark-field, bright-field and polarization microscopy techniques
- Observations of translucent samples in transmitted light
- Trinocular tube for mounting a digital camera and a beam splitter with two positions (100:0 and 0:100)
- Planachromatic objectives with a long working distance. The acronym BD means it is suitable for dark and light field techniques
- Transmitted light illuminator with 30 W halogen lamp and reflected light illuminator with 50 W halogen lamp allow comfortable dark field observation under the microscope
- Köhler illumination (reflected light) with the option to center the light source, aperture and field diaphragms, color filters
- Köhler illumination (transmitted light) with centerable and height-adjustable Abbe condenser, flip-up condenser lenses for low-magnification objectives
- Wide range of fully compatible eyepieces and objectives
Key camera features:
- The camera works autonomously without a connection to a PC via HDMI interface. It is possible to connect to a PC via Wi-Fi and USB 3.0 interface
- Automatic switching between 4K and Full HD based on monitor resolution
- 30 fps for observation of moving objects, video recording, and sample movement without delays or jerks
- The CMOS sensor SONY Exmor/Starvis color back-illuminated provides low noise images and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements

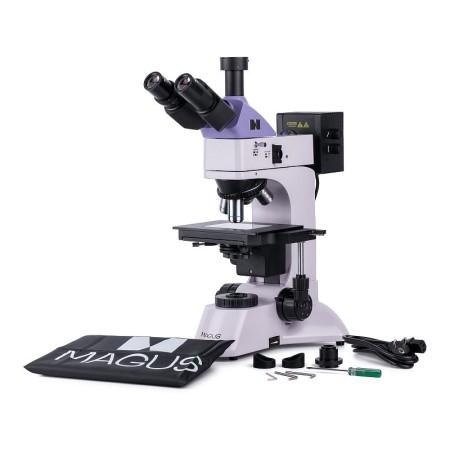

The package contains:
- MAGUS CHD40 Digital Camera (Digital Camera, HDMI Cable (1.5m), USB 3.0 Cable (1.5m), USB Mouse, 32GB SD Memory Card, USB Wi-Fi Adapter (2pcs), AC Power Adapter 12V/1A (Euro), Installation CD with Drivers and Software, User Manual and Warranty Certificate)
- MAGUS MCD40 LCD Monitor
- Base with power input, transmitted light source and condenser, focusing mechanism, stage and nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Planachromatic objective at infinity: PL L5x/0.12 BD WD 9.7mm
- Planachromatic objective at infinity: PL L10x/0.25 BD WD 9.3mm
- Planachromatic objective at infinity: PL L20x/0.40 BD WD 7.2mm
- Planachromatic objective at infinity: PL L40x/0.60 BD WD 3.0mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Transparent table plate
- 1x C-mount adapter
- Allen key
- AC power cord
- Reflected light illuminator power cable
- Dust cover
- User manual and warranty certificate
Available on request:
- 10x/22 mm eyepiece with graduated scale
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Planachromatic objective at infinity: PL L50х/0.70 BD WD 2.5mm
- Planachromatic objective at infinity: PL L60x/0.70 BD WD: 1.9mm
- Planachromatic objective at infinity: PL L80x/0.80 BD WD: 0.8mm
- Planachromatic objective at infinity: PL L100х/0.85 (dry) BD WD: 0.4mm
- Calibration slide
Brand | MAGUS |
Warranty | 5 letters |
EAN | 5905555018317 |
Package size (LxWxH) | 35x30x75 cm |
Shipping weight | 17.25 kg |
Delimiter | MAGUS Metal 600 metallographic microscope BD |
Type | light/optical, metallographic |
Header | trinocular |
Vertical tube | Siedentopf |
Head tilt angle | 30° |
Magnification, x | 50–400 base (*optional: 50–1000/1250/1500/2000/2500) |
Magnification range | from 200x to 800x |
Eyepiece tube diameter, mm | 30 |
Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14 15x/15 20x/12 25x/9) |
Goals | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/0.40 BD, PL L40x/0.60 BD parfocal height 45 mm (*optional: PL L50x/0.70 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry) |
Revolver objective lens | for 5 goals |
Working distance, mm | 9.7 (5x) 9.3 (10x) 7.2 (20x) 2.5 (50x) 3.0 (40x) 1.9 (60x) 0.80 (80x) 0.40 (100x) |
Interpupillary distance, mm | 48 — 75 |
Coffee table, mm | 210x140 |
Table motion range, mm | 75/50 |
Coffee table features | two-axis mechanical stage, with a slide |
Eyepiece diopter adjustment, diopters | ±5 (on left barrel) |
Capacitor | Transmitted light: centerable and height-adjustable Abbe condenser, NA 1.25, adjustable aperture diaphragm and flip-up lenses, with fixing screws |
Diaphragm | Transmitted and reflected light: integrated aperture and field diaphragms |
Fire | coaxial, coarse focus (25mm, with fixing knob and tension adjustment knob) and fine focus (0.002mm) |
Lighting | halogen |
Brightness adjustment | yes |
Diet | 220±22 V, 50 Hz, AC mains |
Optical filters | green, blue, yellow, satin |
Operating temperature range, °C | 5 — 35 |
Extra elements | Integrated analyzer and removable polarizer, dark field device |
User level | expert users, professionals |
Assembly and installation difficulty level | complicated |
Application | metallographic |
Lighting position | double |
Research method | bright field, dark field, polarized light |
Set with pencil case/case/bag | dust cover |
Weight, kg | 11 |
=== Delimiter === | Digital camera |
Sensor | Sony Exmor/Starvis CMOS |
Color/monochrome | in color |
Megapixels | 8 |
Maximum resolution, px | 3840x2160 |
Sensor size | 1/1.2'' (11.14x6.26mm) |
Pixel size, µm | 2.9x2.9 |
Interface Connectors | Wi-Fi, HDMI 1.4, USB 3.0 |
Memory card | SD up to 32GB |
Possibility to connect additional equipment | USB mouse, USB stick, Wi-Fi adapter (USB) |
Sensitivity to light | 1028 mV with 1/30 s |
Signal to noise ratio | 0.13 mV with 1/30 s |
Exposure time | 0.14ms – 1000ms |
Video recording | yes |
Frame rate, fps@resolution | 30@3840x2160 (HDMI), 30@1920x1080 (Wi-Fi), 30@3840x2160 (USB 3.0) |
Place of installation | trinocular tube, optical tube instead of eyepiece |
Image format | *.jpg, *.tif |
Video format | *.h264/*.h265, *.mp4 |
Spectral range, nm | 380-650 (built-in IR filter) |
Shutter type | ERS (Electronic Curtain Shutter) |
Software | HDMI: Integrated USB: MAGUS View |
System Requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS X, Linux, up to 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger display |
Frame type | step C |
Body | CNC aluminum alloy |
Camera power supply | DC adapter 12V, 1A |
DC Power Adapter Specifications | Input: AC voltage 100–240 V, 50/60 Hz, Output: DC voltage 12 V/1 A |
Camera operating temperature range, °C | -10 — 50 |
Humidity operating range, % | 30 — 80 |
=== Delimiter === | Monitor |
Matrix type | IPS |
Display diagonal, inches | 13.3 |
Display resolution, px | 3840x2160 (4K) |
Format | 16:9 |
Brightness, cd/m² | 400 |
Number of colors displayed | 16.7 m |
Contrast | 1000:1 |
Horizontal/vertical viewing angle, ° | 178/178 |
Size of the visible screen area (WxH), mm | 295x165 |
Pixel pitch (WxH), mm | 0.154x0.154 |
Optical source frequency, Hz | 60 |
Matrix type backlight | LED |
Backlight duration LED, h | 50000 |
Interface | HDMI |
Operating temperature range, °C | -15 — 55 |
Humidity operating range, % | 10 — 90 |
Diet | AC 110–220V, DC 5–12V/1A (Type C) |
Energy consumption, W | 12 (max.) |
