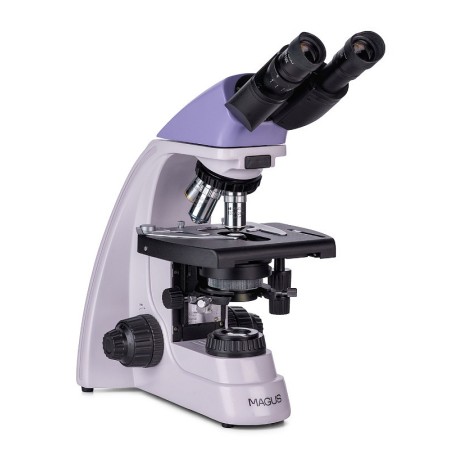

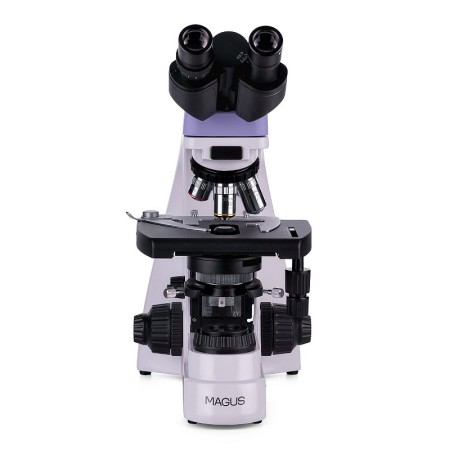

Biological microscope MAGUS Bio 230B
The MAGUS Bio 230B microscope is designed for use in technical and research laboratories to observe biological samples such as thin cross-sections or smears. Samples are analyzed using transmitted-light microscopy (brightfield). If necessary, the microscope can be equipped with additional accessories for darkfield, polarized-light, and phase-contrast observations. This microscope is suitable for use in fields such as the pharmaceutical industry, medical research, biotechnology, environmental protection, forensic science, and agriculture.
- Secure payments: credit card, Paypal and bank transfer
- Fast shipping: Poste Delivery Express, FedEx, UPS
- Customer support Whatsapp +39 371 43 61 201
The MAGUS Bio 230B microscope is designed for use in technical and research laboratories to observe biological samples such as thin cross-sections or smears. Samples are analyzed using transmitted-light microscopy (brightfield). If necessary, the microscope can be equipped with additional accessories for darkfield, polarized-light, and phase-contrast observations. This microscope is suitable for use in fields such as the pharmaceutical industry, medical research, biotechnology, environmental protection, forensic science, and agriculture.
Optics

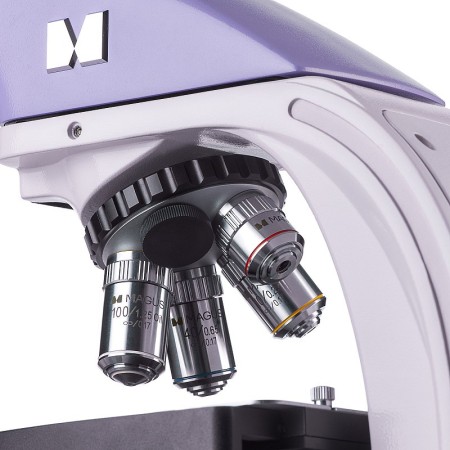

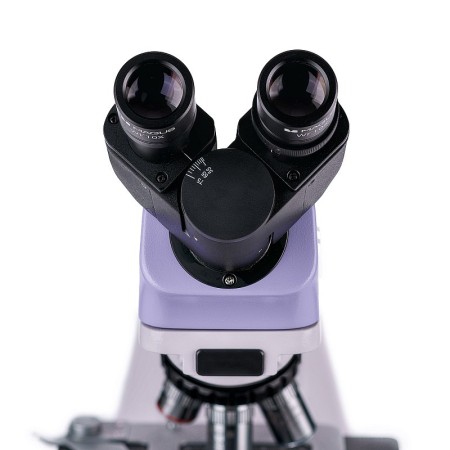

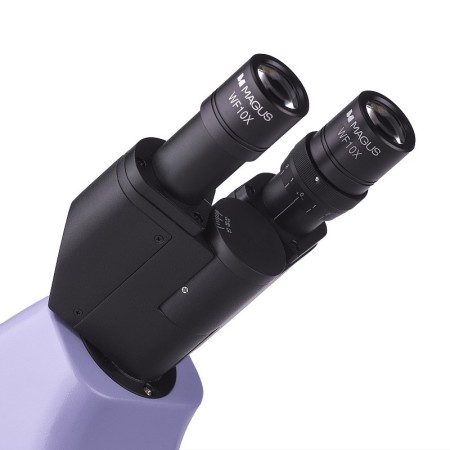

The microscope is equipped with a binocular head. The optical tubes can rotate by 360°, allowing users to adjust their position according to their height. A diopter adjustment ring is located on the left tube. The revolving nosepiece has 5 slots and is oriented inward: this allows users to see which objective is in the optical path while keeping the space above the stage clear. Four achromatic objectives are included, and the fifth slot can be used to hold an additional objective.
The optics are infinity-corrected. The microscope's basic magnification ranges from 40x to 1000x. With additional eyepieces, it can be extended to 1500x, 1600x, and 2000x. If necessary, a digital camera (not included) can be mounted in the optical tube.
Illumination

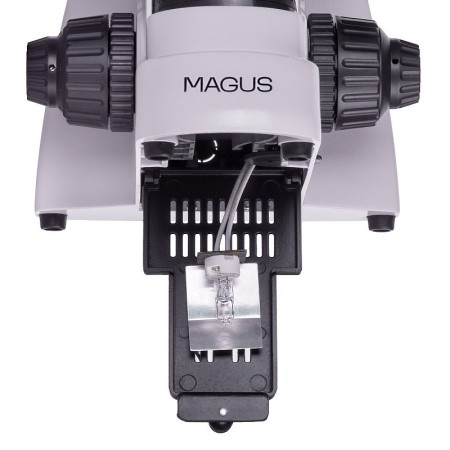

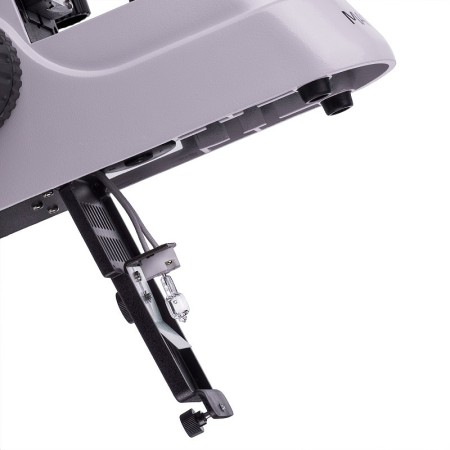

The light source is a halogen lamp located in the microscope base. Its warm light reduces eye strain and is ideal for long hours of microscope use. The 30 W halogen lamp produces bright, high-contrast images with any type of objective and microscopy technique (including darkfield and phase contrast).

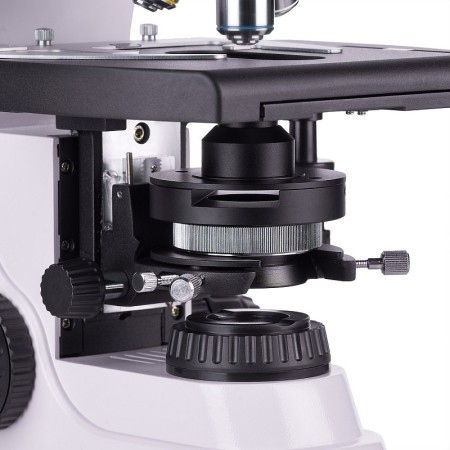

The Abbe condenser can be centered and its height adjusted. A darkfield or phase-contrast slider can be inserted into a dedicated slot, making it easy to switch between observation techniques. The field diaphragm enables Köhler illumination.
Stage and focusing mechanism

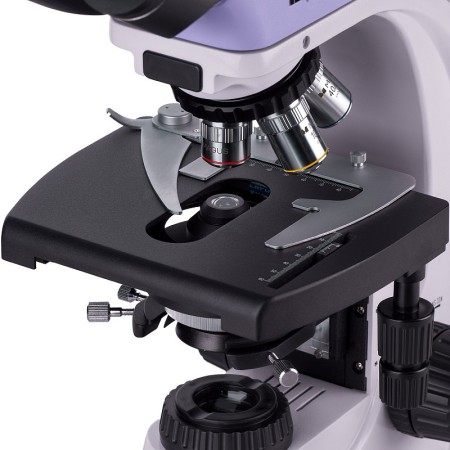

The stage has no positioning rack, making the microscope easier to use. A mechanical insert, which can be removed if necessary, ensures smooth movement of the sample on the stage.

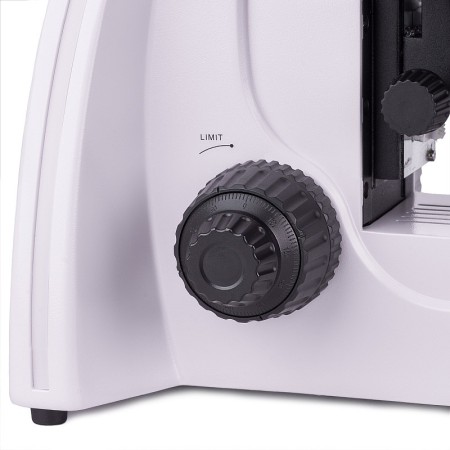

The coarse and fine focus knobs (macro- and micrometer screws) are coaxial and located on both sides of the microscope, near the bottom. The position of the focus knobs lets users rest their hands comfortably on the table and sit comfortably during prolonged observations. Focusing is smooth and requires no effort. The coarse focus has a locking knob, and the tension of the coarse focus screw can be adjusted.
Accessories
Additional equipment, such as objectives, eyepieces, phase-contrast devices, darkfield condensers, polarization devices, digital cameras, or other accessories, can expand the capabilities of the microscope. They are designed for the MAGUS Bio 230B and are available on request.
Key features:
- Infinity-corrected achromatic optics
- Binocular head with optical tubes that rotate by 360°, diopter adjustment on the left tube
- Revolving nosepiece with 5 objectives, stage without a positioning rack
- Coarse and fine focus knobs (macro- and micrometer screws), tension adjustment knob for the coarse focus screw, locking knob for the coarse focus screw
- Condenser with a slot for a darkfield slider or phase-contrast slider, field diaphragm for Köhler illumination
- 30 W halogen lamp (transmitted-light illumination source), with adjustable brightness and powered by AC mains
- Option to install additional accessories to expand the microscope's capabilities

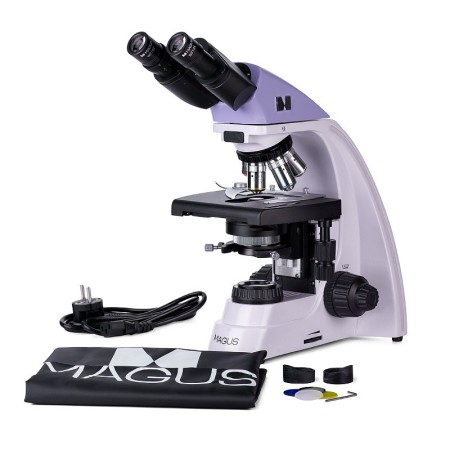

The package includes:
- Base with power input, light source for transmitted-light observations, focusing mechanism, stage, condenser mount, and revolving nosepiece
- Abbe condenser
- Binocular head
- Infinity-corrected achromatic objective: 4x/0.10
- Infinity-corrected achromatic objective: 10x/0.25
- Infinity-corrected achromatic objective: 40x/0.65 (spring-loaded)
- Infinity-corrected achromatic objective: 100x/1.25 oil (spring-loaded)
- 10x/18 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.)
- Immersion oil vial
- AC power cord
- Dust cover
- User manual and warranty certificate
Available on request:
- 10x/20 mm eyepiece with reticle
- 15x/11 mm eyepiece (2 pcs.)
- 16x/11 mm eyepiece (2 pcs.)
- 20x/11 mm eyepiece (2 pcs.)
- Infinity-corrected achromatic objective: 20x/0.40
- Infinity-corrected plan achromatic objective: 20x/0.40
- Infinity-corrected plan achromatic objective: 60x/0.80 (spring-loaded)
- Phase-contrast device
- Phase-contrast slider
- Darkfield condenser with N.A. 0.9
- Oil darkfield condenser with N.A. 1.36–1.25
- Darkfield slider
- Polarization instruments
- Digital camera
- Calibration slide
- C-mount adapter
- LCD monitor
| Brand | MAGUS |
| Warranty | 5 years |
| EAN | 5905555017921 |
| Package size (LxWxH) | 43x27x63 cm |
| Shipping weight | 10 kg |
| === Delimiter === | Microscope specifications |
| Type | biological, transmitted-light/optical |
| Microscope head type | binocular |
| Head | Gemel head (Siedentopf type, with 360° rotation) |
| Head inclination angle | 30° |
| Magnification, x | 40 — 1000 |
| Magnification range | from 800x to 1280x |
| Magnification, x (optional) | 40–1500/1600/2000 |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | 10x/18 mm, eye relief: 10 mm (*optional: 10x/20 mm with reticle, 15x/11 mm, 16x/11 mm; 20x/11 mm) |
| Objectives | infinity-corrected achromatic: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45 mm (*optional: 20x/0.40; 60xs/0.80) |
| Revolving nosepiece | for 5 objectives |
| Working distance, mm | 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Stage travel range, mm | 75/50 |
| Stage features | two-axis mechanical stage drive, without positioning rack |
| Eyepiece diopter adjustment, diopters | ±5 (on the left eyepiece tube) |
| Condenser | Abbe condenser, N.A. 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark-field slider and phase-contrast slider, dovetail mount |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focusing (21 mm, 39.8 mm/turn, with a locking knob and a tension adjustment knob for the fine-focus mechanism) and fine focusing (fine-focus mechanism of 0.002 mm) |
| Illumination | halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Light source type | halogen lamp 12 V/30 W, G4 socket |
| Optical filters | yes |
| Option to connect additional equipment | phase-contrast devices (condenser and objectives), dark-field condenser (dry or oil-immersion), polarization instruments (polarizer and analyzer) |
| User level | professionals, experienced users |
| Assembly and installation difficulty level | complicated |
| Application | laboratory/medical |
| Illumination position | lower |
| Research method | bright field |
| Set with case/cover/bag | dust cover |
| Weight, kg | 8 |
| Dimensions, mm | 200x436x400 |
| === Delimiter === | Digital camera |
| Camera operating temperature range, °C | 5 — 35 |
