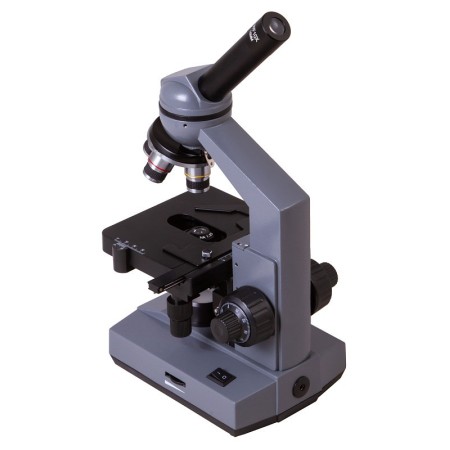

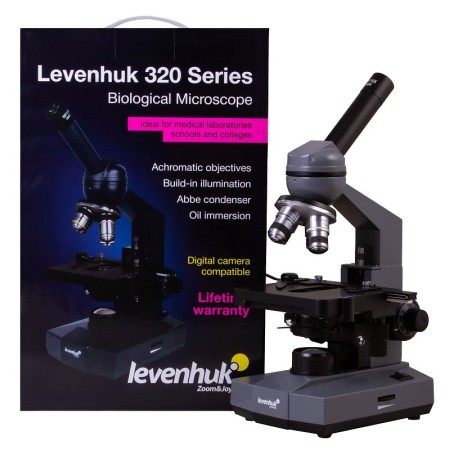

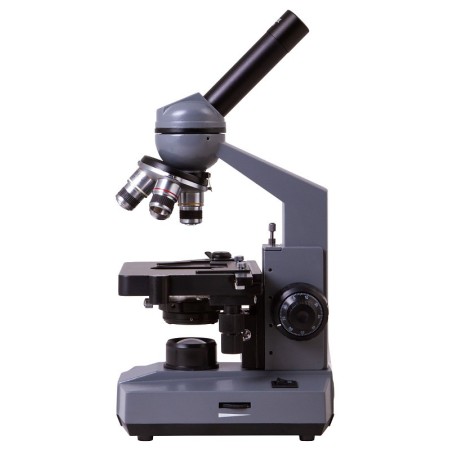

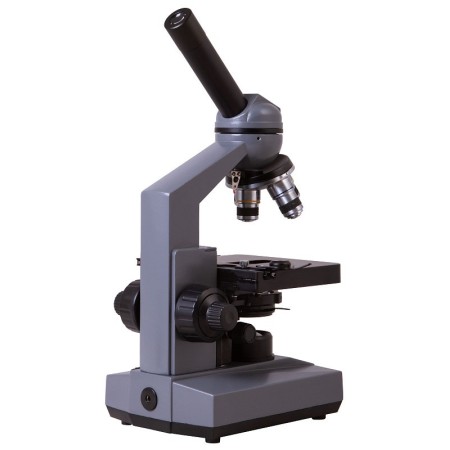

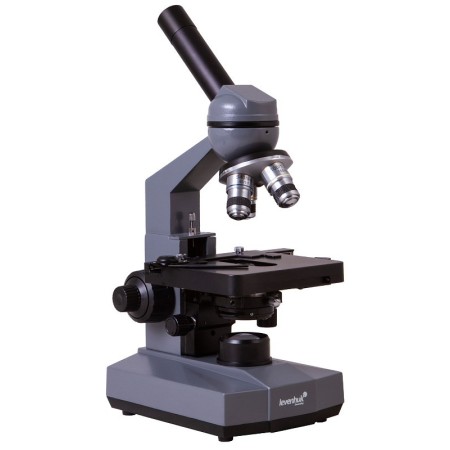

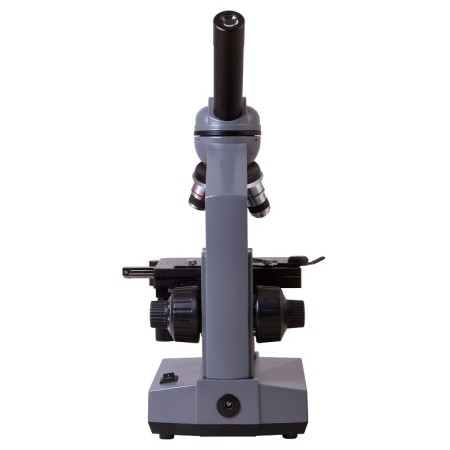

Levenhuk 320 PLUS Monocular Biological Microscope
zoom_out_map

Levenhuk 320 PLUS Monocular Biological Microscope

€319.96 Tax included

€262.26 Tax excluded

Shipping in 3/7 days.
local_shipping Shipping in 3/7 days.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description

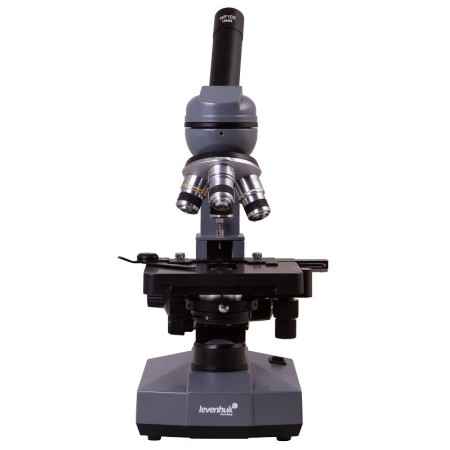

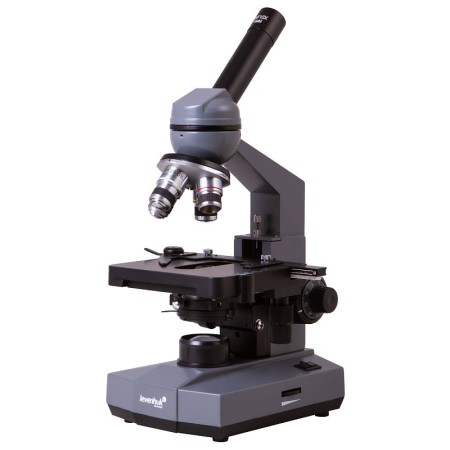

Levenhuk 320 PLUS Microscope is a laboratory model for professional observations. It is suitable for conducting morphological, hematological, biochemical and other research in laboratories of medical institutions and scientific and research centers. University assistants and professors can use Levenhuk 320 PLUS for their lectures to students of medicine and health professions.

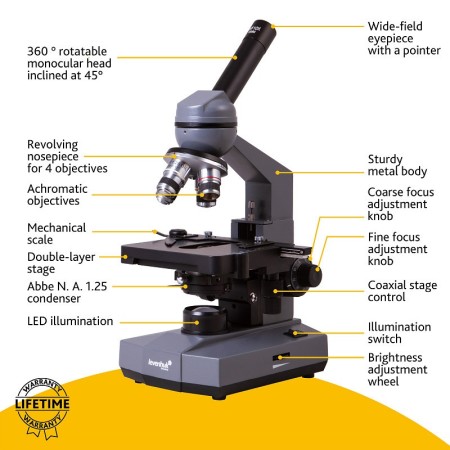

The microscope features achromatic optics that provide a high-contrast, sharp, and detailed image without optical aberrations. With the included eyepieces, the microscope creates a wide, planar field of view, allowing you to observe large and intricately structured objects. The monocular microscope head is rotatable 360°. The microscope features a magnification range of 40–1600x. The 100x objective lens allows you to use the oil immersion method; a bottle of immersion oil is included in the kit.

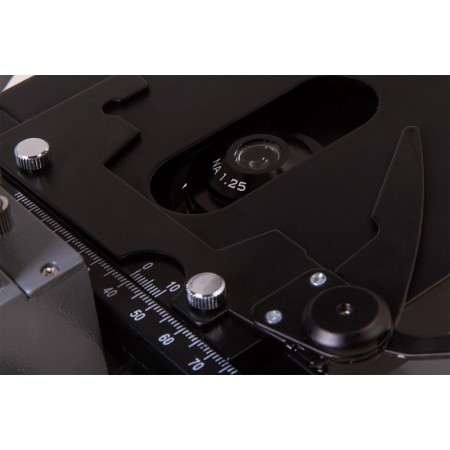

The samples are fixed on a stage. The stage can be moved along two axes: the mechanical translator is used for the precise positioning of the samples under the objective. A coaxial mechanism for coarse and fine adjustment of the focus is used for the sharpness adjustment.

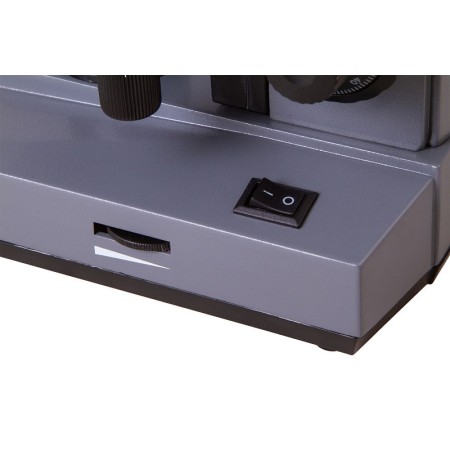

The LED illumination at the bottom of the microscope is used to illuminate the specimen under examination and is equipped with brightness adjustment. The optical beam passes through an Abbe condenser that regulates its brightness via an iris diaphragm. The kit includes optical filters that increase the contrast and sharpness of the observed image. The illumination can be powered by AC mains or batteries. Therefore, you can use Levenhuk 320 PLUS also outdoors, during field expeditions and seminars.

Characteristics:

  • Rotating monocular head
  • Magnification: 40–1600x
  • Achromatic wide angle optics
  • 0.75W LED lighting with brightness adjustment
  • Powered by AC mains or batteries

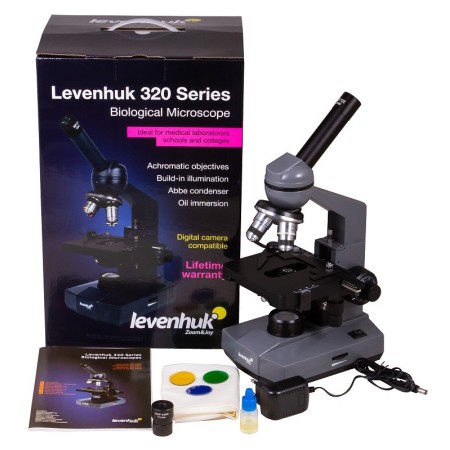

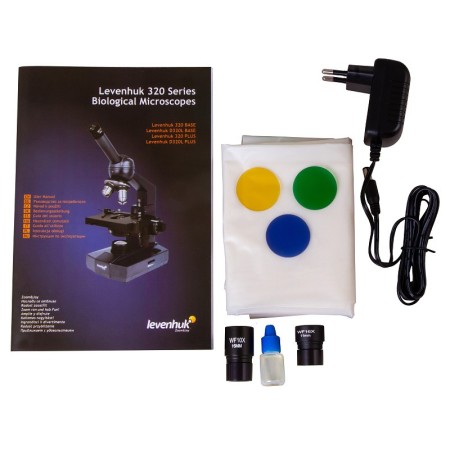

The kit includes:

  • Microscope

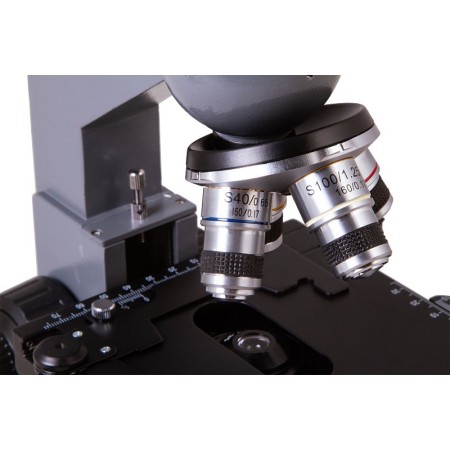

  • Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)
  • Wide Angle Eyepieces with Pointer: WF10x and WF16x
  • Filters: blue, green, yellow
  • Bottle of immersion oil
  • AC adapter
  • Dust cover
  • User manual and lifetime warranty

Caution: Refer to the specification table for the correct mains voltage and never attempt to plug a 110V device into a 220V outlet and vice versa without using a converter. Remember that the mains voltage in the USA and Canada is 110V and 220–240V in most European countries.

Some of the things you can observe under the microscope:


Levenhuk 320 PLUS Microscope is also compatible with other Levenhuk digital cameras (additional cameras purchased separately). Levenhuk cameras are installed in the eyepiece tube, instead of an eyepiece.

Brand Levenhuk Inc , USA
Warranty, years for life
EAN 5905555004495
Package size (LxWxH), cm 39x25x21
Shipping weight, kg 3.26
Header monocular
Head tilt angle 45°
Magnification, x 40 — 1600
Magnification range from 1280x and above
Eyepiece tube diameter, mm 23.2
Goals achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolver objective lens for 4 goals
Coffee table, mm 110x125
Table motion range, mm 58/25
Capacitor Abbe condenser with NA 1.25 and iris diaphragm
Diaphragm iris
Fire Coaxial coarse (20 mm) and fine (0.02 mm)
Brightness adjustment yes
Type of light source 0.75W
Assembly and installation difficulty level easy
Lighting position inferior
Power supply: batteries/built-in battery Yes
Type organic, light/optical
Material of the optics optical glass
Vertical tube 360° rotatable
Eyepieces WF10x with pointer, WF16x with pointer
Coffee table features double mechanical layer
Body metal
Lighting LED
Diet 220V/50Hz or 3 AA batteries (not included)
Optical filters blue, green, yellow
Extra elements immersion oil included
User level expert users
Application laboratory/medical
Research method clear field
Set with pencil case/case/bag dust cover
