The Levenhuk 850B is a biological binocular microscope equipped with plan achromatic optics for brightfield observations in transmitted light. It is used in various types of medical centers for urological, dermatological, biological, biochemical, anatomical-pathological, cytological and general clinical laboratory research.

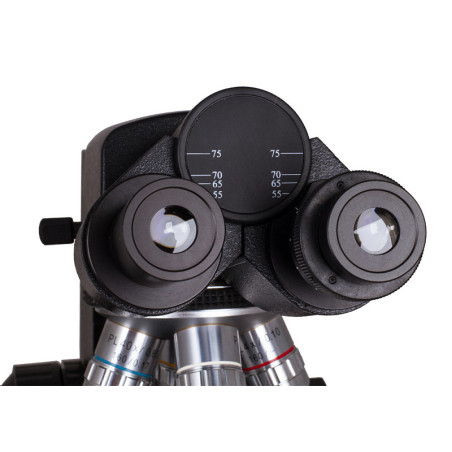

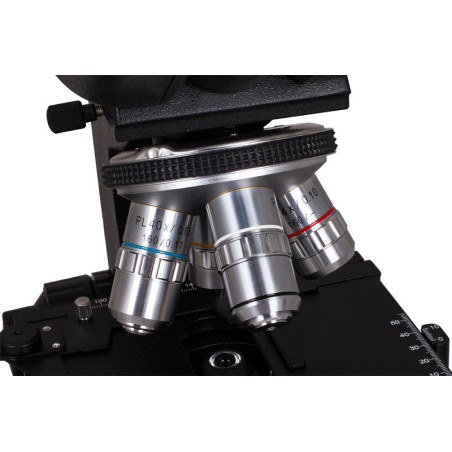

The microscope is equipped with a 360º rotating binocular head with a 30º inclination angle and a nosepiece for 4 objectives. The nosepiece and its objectives face inward: the user can see which objective is in the optical path, and the space above the stage remains clear. The interpupillary distance is adjustable over a wide range. The set includes 10x eyepieces with a field of view of 22 mm, allowing a large area of the specimen to be viewed.

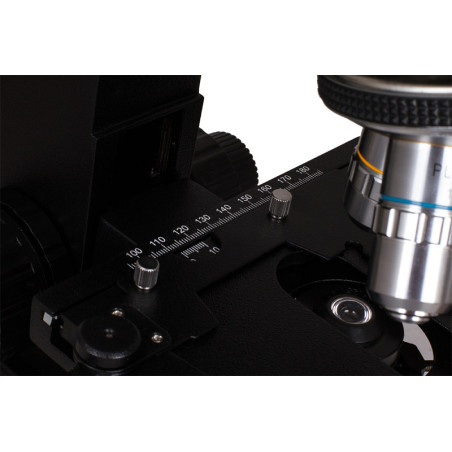

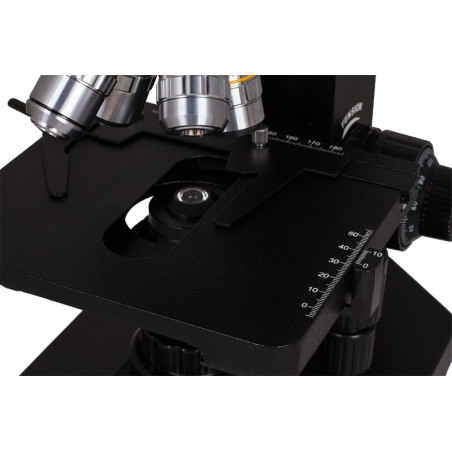

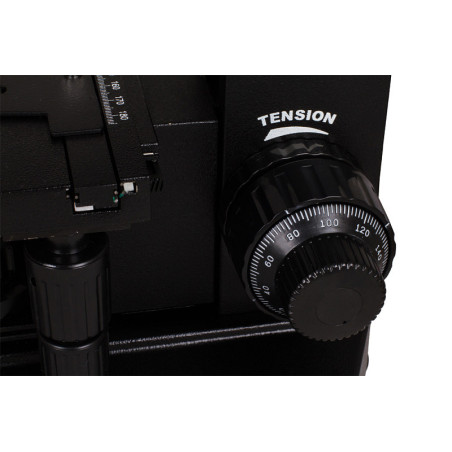

The microscope is focused using coarse and fine focusing knobs. The focusing handles move the stage vertically and horizontally along two perpendicular axes. The stage has no positioning rack. The stage knob is located at the bottom for improved user comfort. The specimen holder is designed to hold two specimens. Thanks to the smooth focusing adjustment and stage movement mechanism, movements are simple and quick.

Using an LED light source increases the microscope's resolution. The LED is mounted on the base, its brightness can be adjusted, and it has a long service life before replacement is needed. The field and aperture diaphragms enable the Köhler illumination method. The illuminator operates on AC power (a 220 V power cable is included).

Key features:

• Binocular head, digital camera mounted on one of the eyepiece tubes
• Magnification range: 40–1000x, plan achromatic optics
• Abbe condenser, field and aperture diaphragms, Köhler illumination
• Stage without positioning rack and two specimen holders
• Coaxial coarse and fine focusing
• LED illumination (transmitted light) with brightness adjustment
• Retractable collector for easy LED replacement
• AC power supply

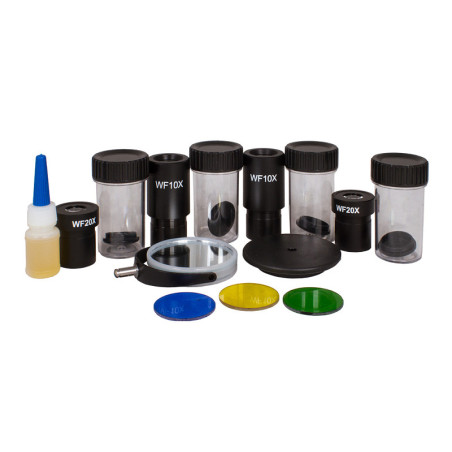

The package contains:

• Microscope base, nosepiece, condenser, stage, integrated transmitted-light illuminator and power supply
• Binocular head
• Plan achromatic objectives: 4x, 10x, 40xs, 100xs (oil)

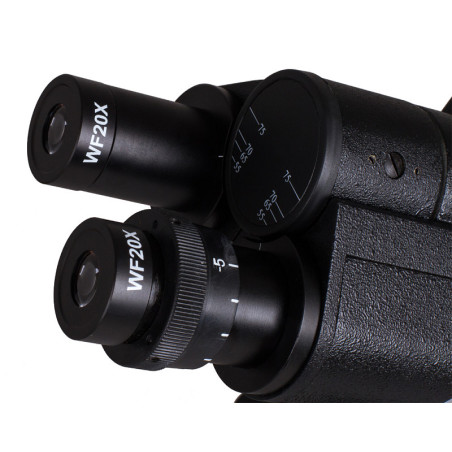

• WF10x/22 mm eyepiece (2 pcs.)
• Blue filter
• Bottle of immersion oil
• AC adapter
• Dust cover
• User manual and warranty certificate

Warning: For information about the correct mains voltage, consult the specifications table. Never attempt to connect a 110 V device to a 220 V power outlet, or vice versa, without using a voltage converter. Remember that the mains voltage in the United States and Canada is 110 V, and 220–240 V in most European countries.

Some things you can observe under a microscope:

The photo shows slides from ready-to-use specimen kits by Levenhuk.
The Levenhuk 850B microscope is compatible with Levenhuk digital cameras (not included). Levenhuk cameras are installed on the eyepiece tube rather than on an eyepiece.
