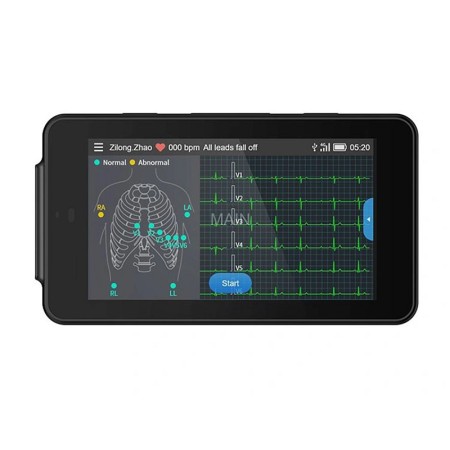

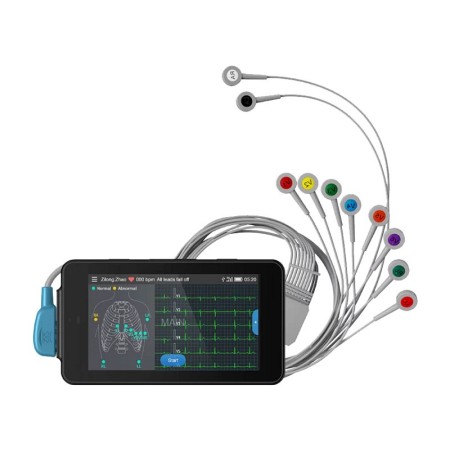

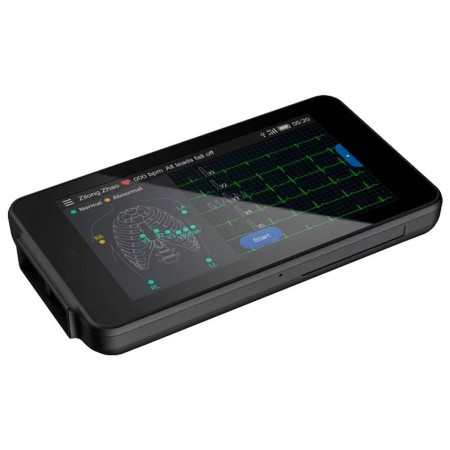

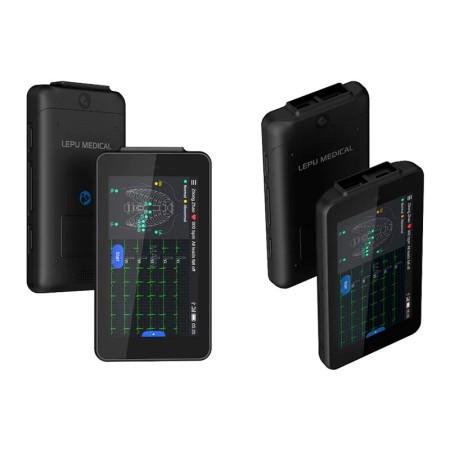

Pocket handheld electrocardiograph PCECG-500 with Glasgow interpretation of Lepu Medical is a professional, compact and lightweight ECG device, designed for quick and reliable use in healthcare settings. Thanks to its advanced technology, it enables the synchronous acquisition and analysis of ECG tracings at 6 or 12 leadswith heart rate measurement and automatic detection of faulty electrode contact.

The device integrates theGlasgow algorithm, which provides automatic interpretation of tracings, measured parameters and diagnostic results, offering immediate and precise clinical support. It is also equipped with automatic detection and marking function for pacemaker pulses.

Main features:
- 4.46" color LCD touchscreen, 480x854 pixel resolution
- Integrated HD camera
- Acquisition mode: automatic and R-R
- More than 24 hours of continuous operation
- Data transfer via Wi-Fi and email
- Compatible with external printers via Wi-Fi

- Storage: 5000 examinations

Technical specifications:
- Detection method: peak-to-peak
- Measurement range: 30–300 bpm; ±1 bpm
- Sensitivity: 2.5, 5, 10, 20 mm/mV; ±5%
- Input impedance: ≥50 MΩ (10 Hz)
- Sampling rate: 2000 samples/sec
- Sampling modes: pre-sampling, real-time, periodic, trigger
- CMRR: ≥100 dB (AC filter active)
- Frequency response: 0.05–150 Hz +0.4 dB (–3.0 dB), 10 Hz
- Time constant: ≥3.2 s
- Configurable filters:
- AC filter: 50 Hz, 60 Hz, off
- EMG filter: 25 Hz, 35 Hz, 45 Hz, disabled
- ADS (Anti-Drift System) filter: 0.05 Hz, 0.32 Hz, 0.67 Hz
- Low-pass filter: 75 Hz, 100 Hz, 150 Hz, off
- Sweep speed: 5, 6.25, 10, 12.5, 25, 50 mm/s; ±3%

Power supply: built-in rechargeable lithium-ion battery, 3.8 V - 6000 mAh, with a charging time of approximately 8 hours.

Dimensions and weight: 134 × 74 × 17 mm; weight 250 g (battery included), comparable to a smartphone, ideal for use on the go.

Standard equipment:
- 1 ECG lead cable
- U-Disk with Type-C port and USB
- 2 set of 10 disposable ECG electrodes for adults
- Cable USB
- Rechargeable lithium-ion battery
- Multilingual manual (GB, FR, IT, ES, PT, DE, PL, GR, RU)

The PCECG-500 is the ideal solution for doctors, nurses and healthcare professionals who need a portable ECG instrument, accurate and with advanced diagnostic capabilities, perfect for use in the clinic, at home, or in an emergency.
