Cardio B Bluetooth handheld ECG with software and 17 reports

GIMA
Price: €142.50
Tax included
Availability Shipping in 1/2 days
Code ECG33259 Brand GIMA EAN 8023279332599

Cardio B Bluetooth by GIMA is a compact, portable handheld ECG designed for daily monitoring of cardiac activity. Ideal for general practitioners, occupational physicians and home use by patients with cardiovascular conditions such as hypertension or coronary artery disease, it allows ECG tracings to be taken and recorded simply and reliably.

The device offers four measurement modes: using the palm, leg, chest or cable and electrodes (optional), providing flexibility to meet clinical or personal needs. Each measurement lasts 30 seconds and can be saved in the internal memory, which supports up to 1200 ECGs or 10 hours of continuous tracing.

Equipped with Bluetooth connectivity, Cardio B enables wireless transmission of data to Android devices (smartphones or tablets). Communication protocols are available upon request. It is also compatible with PCs via USB 2.0 interface and included dedicated software (optional USB cable).

Automatic reports:
- No irregularities
- Suspected slightly fast heartbeat
- Suspected fast heartbeat
- Suspected short cycle of fast heartbeat
- Suspected slightly slow heartbeat
- Suspected slow heartbeat
- Suspected occasional short heartbeat interval
- Suspected irregular heartbeat interval
- Suspected fast heartbeat with short interval
- Suspected slow heartbeat with short heartbeat interval
- Suspected slow heartbeat with irregular heartbeat interval
- Arrhythmia
- Suspected fast heartbeat with arrhythmia
- Suspected slow heartbeat with arrhythmia
- Suspected occasional slow heartbeat interval with arrhythmia
- Suspected irregular heartbeat interval with arrhythmia
- Weak signal; take a new measurement

Technical specifications:
- ECG bandwidth: 1 Hz – 40 Hz
- Heart rate measurement range: 30 – 240 bpm ± 2 bpm
- Dot-matrix LCD display: 240 x 160 pixels
- Display dimensions: 57,6 x 40 mm
- Power supply: 2 AAA batteries
- Dimensions: 125 x 70 x 21,5 mm
- Weight: 106 g

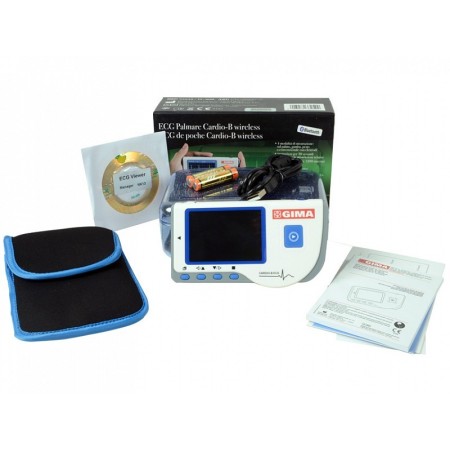

Supplied with user manual and multilingual box (English, French, Italian, Spanish), Cardio B provides an effective, professional solution for non-invasive monitoring of cardiac health in both clinical and home settings.

Attachments

Catalog page

Catalog page

User Manual

User Manual

Certification

Certification

User Manual (EN)

User Manual (EN)

Manuel d'utilisation (FR)

Manuel d'utilisation (FR)

Manuale d'uso (IT)

Manuale d'uso (IT)

Manual de uso (ES)

Manual de uso (ES)

Declaration of Conformity (EN)

Declaration of Conformity (EN)
