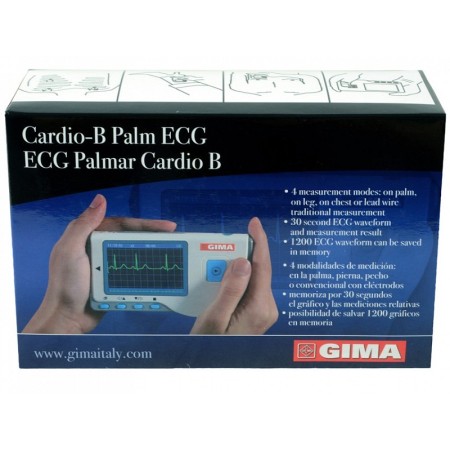

GIMA's Cardio B handheld ECG is a compact and portable device designed for daily monitoring of cardiac activity. It is ideal for general practitioners, occupational physicians, and for home use by patients with cardiovascular conditions such as hypertension or coronary heart disease.

Usable only as a first screening tool, it is not indicated for use on newborns and does not replace a multi-lead ECG for in-depth clinical analysis.

The device allows ECG detection in four modes:

Detection mode:
- On the palm
- On the leg
- On the chest
- Via cable and electrodes (optional accessory)

The measurements, lasting 30 seconds, can be stored up to a maximum of 1200 traces or 10 hours of continuous recording. The data collected can be used as a reference for clinical applications and analyzed through automatic reports of 17 different types.

The device is equipped with a USB 2.0 interface for connection to a PC (optional cable and software), allowing advanced data management.

Technical features:
- ECG bandwidth: 1 Hz – 40 Hz
- Pulse measurement range: 30 – 240 bpm ± 2 bpm
- Dot matrix LCD display: 240 x 160
- Display size: 57.6 x 40mm
- Power supply: 2 AAA batteries
- Dimensions: 125 x 70 x h 21.5 mm
- Weight: 106 g

Equipment:
- User manual
- Multilingual box (GB, FR, IT, ES)
