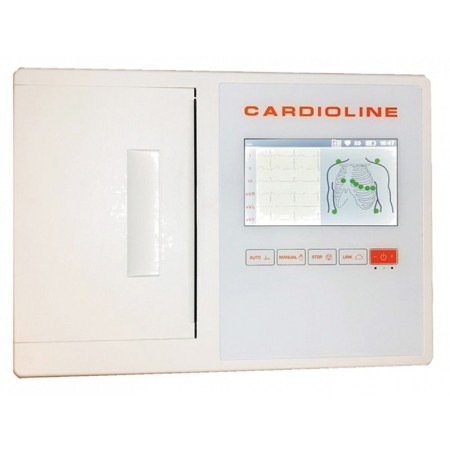

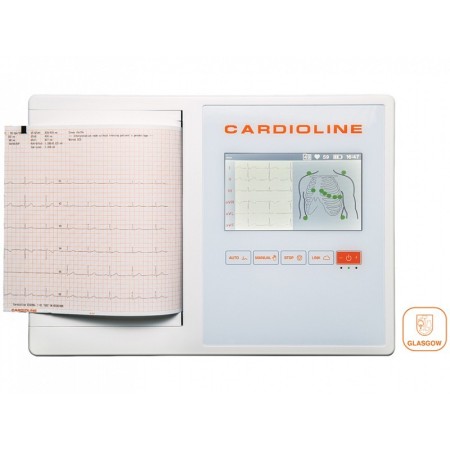

The CARDIOLINE ECG200L electrocardiograph is a fully diagnostic portable 12-lead device, suitable for both adults and children. Designed to display, acquire, print and store ECG tracings, it offers an intuitive user interface via a 7" color touchscreen display. The system guides the user during electrocardiogram acquisition, indicating any errors such as detached electrodes.

The device includes a USB port for exporting saved ECGs and incorporates the Glasgow interpretation algorithm for resting 12-lead ECGs, with criteria specific to age, sex and race. This enables detailed interpretations and recognition of acute myocardial infarction. The included EasyAPP software facilitates the archiving and management of ECG examinations, with options to save in PDF format.

ECG acquisition:
- Leads: 12
- Patient cable: standard 15D, 10-wire
- CMRR: > 100 dB
- A/D converter: 16 bit, 32000 samples/second/channel
- Sampling rate: 32000 samples/second/channel
- Sampling rate for analysis: 500 samples/second/channel
- Bandwidth: 0.05-150 Hz
- Pacemaker detection: hardware with digital filter
- Acquisition mode: automatic, manual, stat
- Lead configuration: standard, Cabrera

Processing:
- Lead-fail detection: on all leads
- Heart rate range: 30 - 300 bpm
- Filters: high-pass, adaptive AC, low-pass
- ECG measurements: HR, RR, PR, QRS, QT, QTc, max R and S, Sokolow-Lyon index, PRT axes
- ECG interpretation: Glasgow
- Memory: 50 ECGs
- Export formats: SCP, PDF
- Connectivity: USB

Display:
- Type: 7" TFT color LCD
- Resolution: 800x480
- Data displayed: 3/6/12 leads in real time
- Display formats: 12x1, 6x2, 6x1, 3x1

Keyboard:
- Type: touchscreen with dedicated keys
- Dedicated keys: AUTO, MANUAL, STOP, LINK

Printer:
- Technology: thermal printhead 216 mm
- Resolution: 8 dots/mm
- Paper type: 210 mm x 30 m
- Sensitivity/gain: 5, 10, 20 mm/mV
- Automatic print speed: 5, 10, 25, 50 mm/s
- Automatic printing: 3, 3+1, 6, 6+6, 12 channels
- Manual print speed: 5, 10, 25, 50 mm/sec
- Manual printing: 3/6/12 channels
- Rhythm printing: 1 minute 3 leads
- Print formats: 12x1, 6x2, 3x4, 3x4+1, 3x4+3

Power supply:
- Power supply: internal AC and rechargeable battery
- Input voltage: 100-240 Vac
- Input current: 1.5 - 0.75 A
- Input frequency: 50/60 Hz
- Protection class: I
- Battery type: NiMH
- Battery life: > 500 ECGs, > 6 h
- Charging time: 4 hours up to 85%

Dimensions and Weight:
- Dimensions: 413 x 295 x 60 mm
- Weight: 4.17 kg

Supplied equipment:
- User manual
- Glasgow interpretation
- IEC patient cable, 10-wire
- 120 electrodes
- Easy App software
- 1 pack of z-fold paper 210x295mm, 180 sheets
- 24-month warranty
