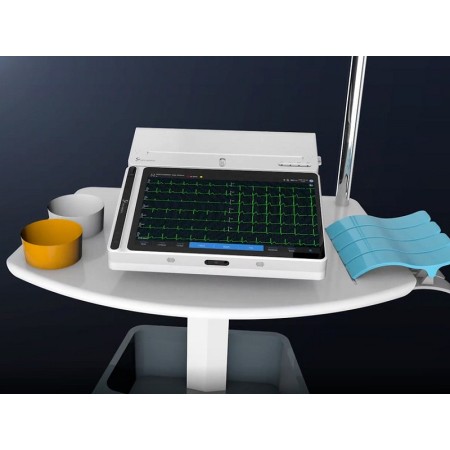

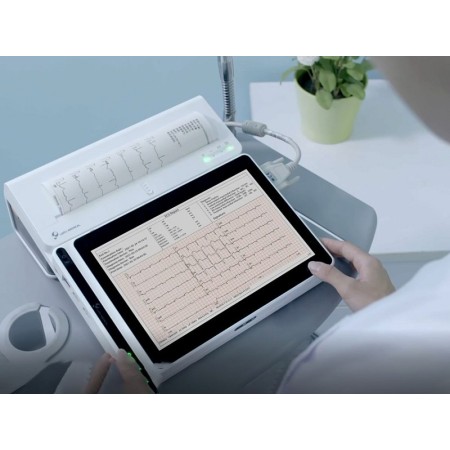

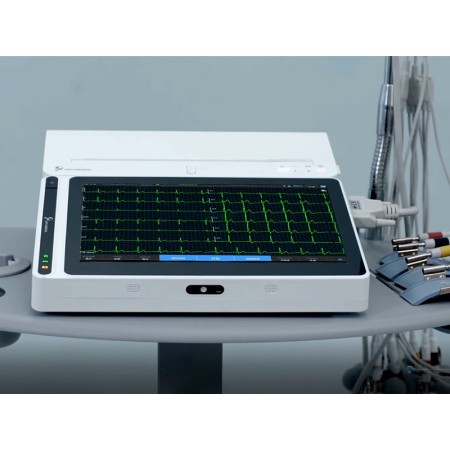

NeoECG T180 ECG with 12 leads, Glasgow interpretation and printer by Lepu Medical is an advanced portable electrocardiograph designed for the acquisition, display and professional management of ECG traces in clinical settings. Thanks to its compact design and integrated technology, it is an ideal solution for healthcare facilities that require mobility, diagnostic accuracy and connectivity.

Equipped with a high-resolution 10.1” color touchscreen, the device enables intuitive interaction and clear display of ECG traces with 9 or 12 leads acquired synchronously. The integrated Glasgow interpretation algorithm ensures accurate automatic analysis, supporting healthcare professionals in cardiac diagnosis.

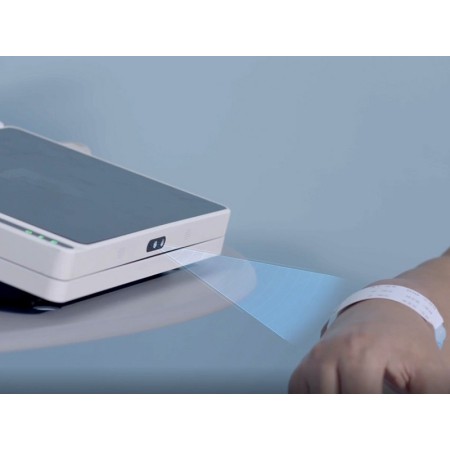

The system offers four sampling modes (pre-sampling, real-time, periodic, trigger), automatic pacemaker detection and advanced functions such as RR auto-analysis, HRV, drug tests and ECG event mode. The trace can be frozen on screen for detailed review, while the virtual keyboard and the barcode reader simplify patient data entry.

The storage, review, editing and transmission of ECG data take place via Wi-Fi or mobile network, with the option to export to a USB flash drive. Files can be saved in various formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP.

The device features a high-performance thermal printer high-performance, with selectable speeds (5, 6.25, 10, 12.5, 25, 50 mm/s, error < ±3%) and adjustable sensitivity (auto, 2.5, 5, 10, 20, 40 mm/mV, error < ±5%).

Main technical specifications:
- Heart rate: 30–300 bpm ±1
- A/D resolution: 24 bits
- Sampling frequency: 32000 samples/sec
- Filters: AC (50–60 Hz), EMG (25–45 Hz), ADS (0.01–0.67 Hz), low-pass (75–300 Hz)
- Frequency response: 0.01–350 Hz (+0.4–3.0 dB)
- Minimum detectable signal: 20 µVp-p
- Internal noise: ≤12.5 µV
- Input impedance: ≥100 MΩ (10 Hz)
- Input circuit current: ≤10 nA
- Calibration voltage: 1 mV ±2%
- Depolarization voltage: ±900 mV ±5%
- Common-mode rejection: ≥140 dB (AC filter on), ≥120 dB (AC filter off)
- Amplitude quantization: 0.95 µV/LSB
- Discharge recovery time: <10 s

The NeoECG T180 is powered by an external DC power supply and an integrated rechargeable lithium battery. It includes a recorder charging port and multilingual software that can be selected (GB, FR, IT, ES, PT, DE, GR, PL).

Dimensions and weight: 27,4 x 28,8 x h 11,1 cm – 2.5 kg

Standard equipment:
- 1 ECG cable (IEC, Ø 4 mm, banana connector)
- 6 adult suction-cup precordial electrodes (Ø 4 mm)
- 4 limb clamp electrodes (arms/legs)
- 1 roll of thermal paper (20 m x 216 mm)
- 1 rechargeable lithium battery
- 1 power adapter
- Multilingual manual (GB, IT; on request: FR, ES, PT, DE, GR, PL)

The NeoECG T180 ECG Tablet is the ideal choice for clinics, medical practices and hospital departments that require a professional, reliable and easily transportable ECG, with advanced features and full compatibility with the main healthcare interoperability standards.
