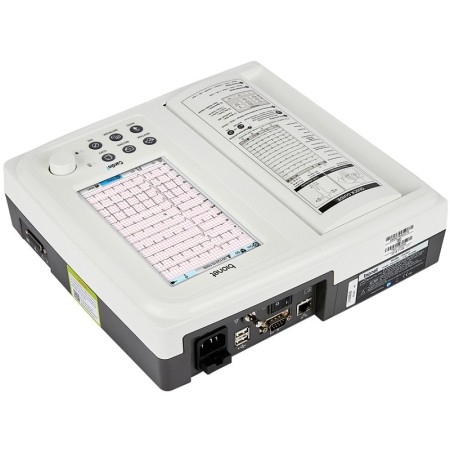

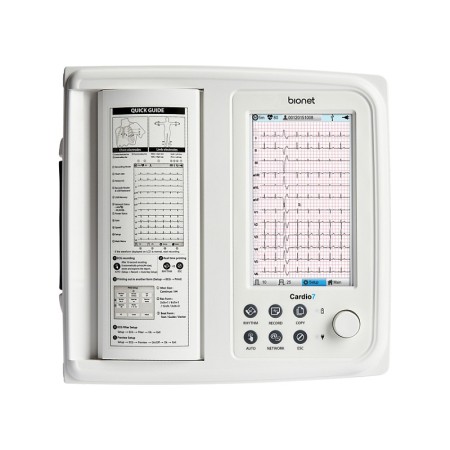

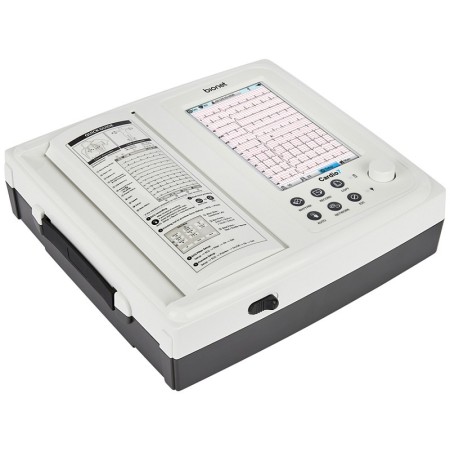

NEW ECG CARDIO 7: 12 CHANNELS WITH TOUCH SCREEN

The new Cardio 7 is an electrocardiogram (ECG) device capable of measuring and recording 12 channels of cardiac signals in adult and pediatric patients.
The device allows you to record and print heart signals, review them using various display modes, and perform automatic detection of heart disorders.
You can also manage digital files by transferring stored data to a networked PC. The device is protected against the effects of defibrillator shock.

- over 120 types of results based on advanced Minnesota code interpretation, HRV (heart rate variability analysis)
- memory up to 200 patients
- real-time preview
- compatible with PC via LAN or USB stick
- selectable multilingual software (GB, FR, IT, ES, DE, PT, PL, RO, TR, RU, KR)
- electrode error message
- pacemaker detection
- automatic arrhythmia detection
- Record heart rate from 1 channel for a long time (1, 5 and 10 minutes), then print on A4 or Letter paper
- large and clear 7” TFT LCD display (800x480)
- touch screen for easy operation
- full detection function

1 pc.

Technical Features:
ECG Leads: 10 leads, 12 channels, continuous simultaneous acquisition
Dimensions: 300x200xh 97.5 mm, approx. 3.5 kg
Recording channels: 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 6 channels + 1 beat ratio channel
Sensitivity: 2.5, 5, 10, 20, auto (l~aVF: 10, V1~V6: 5) mm/mV
Print speed: 5, 12.5, 25, 50, 100 mm/s
Sampling rate: Analysis - 500 s Digital - 8,000 s
Filters: AC (50/60 Hz, -20 dB or better)
Muscle (25~35 Hz, -3dB or better)
Offset from baseline (0.05, 0.1, 0.2 Hz, -3 dB or better)
Low-pass filter: off, 40 Hz, 100 Hz, 150 Hz
Display: 7" color TFT LCD (800x480), 12 channels
Preview ID, FC, gain, speed, power status
Display: ID, date, sensitivity, speed, filter, format, rhythm derivation
User interface: Touch screen (alphanumeric and symbol keyboard), keyboard, knob-button (pop-up menu)
Patient data: ID, name, age, gender, height, weight, smoking status, ethnicity, department, room number, office, etc.
Basic measurements: Heart rate (30~300 bpm, ± 3 bpm), PR/RR int., QRS dur., QT/QTc int., PRT axis, SV1/RV5/R+S amp.
Registration: Thermal paper roll
Width: A4/Letter 215 mm
length: A4 297 mm letter 279 mm
A4 paper ratio: 210x300 mm
Resolution: Vertical: 8 dots/mm (0.125 mm pitch)
Electrical data: Internal noise: 20 µV (pp) max
Input impedance: =50 MO
Input voltage range: = ±5 mV
Common mode rejection: > 105 dB
DC offset voltage: = ±400 mV
Patient leakage current: < 10 µA
Frequency response: 0.05 ~200 Hz in 3 dB
Isolated and protected from defibrillation
Signal quality control: Detection of disconnected leads, detection of signal saturation, pacemaker pulsation
ECG data memory: Internal memory for 200 ECGs
Power supply: Input: 100-240V, 1.5-0.75A, 50-60Hz Output: 15V, 4.2A
Battery (Li-Ion): Replaceable and rechargeable, lithium-ion, 10.8V, 3250mA
6 hours of normal use or printing of 200 pages of ECG (12-channel format at 25 mm/s and 10 mm/mV)
Fully charged in 3 hours with the device off
Communication: PC connection with LAN, WiFi (optional), USB stick, USB barcode scanner (optional)
Compliance: Class I, Type CF, CE, CSA, FDA, KFDA, CFDA, CCC

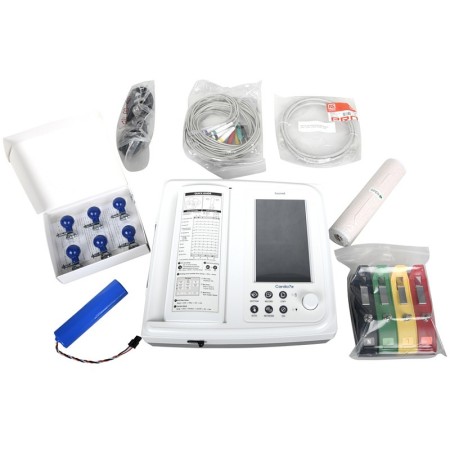

Equipment:
Patient cable - 10 leads
LAN cable
1 bottle of ECG gel (70g)
1 power cord
1 manual (GB, IT)
1 roll of paper
4 peripheral electrodes
6 precordial electrodes
BMS Plus (GB, IT)
Rechargeable Li-Ion battery
