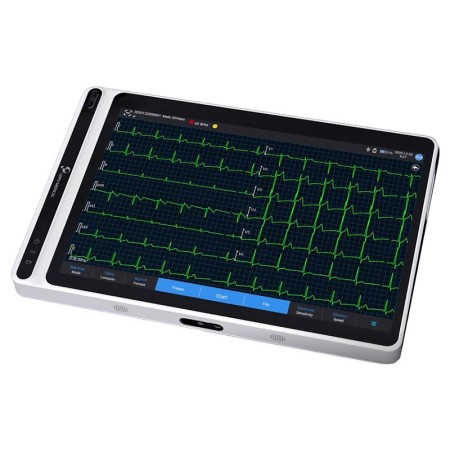

The NEO ECG S120 12-Channel Glasgow Interpretive ECG Tablet - Banana Connector by Lepu Medical is a portable, high-performance electrocardiographic device designed for the synchronous acquisition and display of 9- or 12-lead ECG waveforms. Ideal for dynamic clinical environments, it enables rapid, accurate, and easily shareable cardiac assessment.

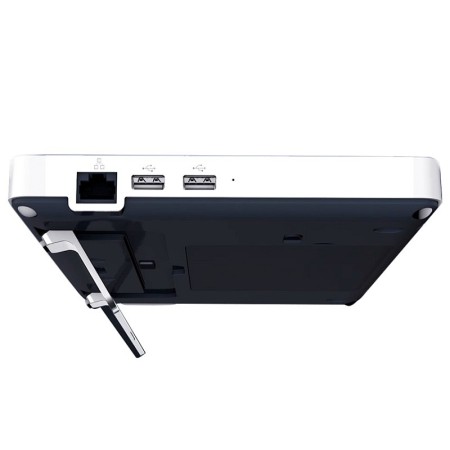

Equipped with a 7" high-resolution color touchscreen , it offers an intuitive interface for efficient data management. Storing, reviewing, editing, and previewing ECG waveforms is simplified thanks to wireless transmission via mobile network or WiFi. Patient data can also be exported to a USB stick via a dedicated connector.

The system integrates the Glasgow interpretation algorithm and supports four sampling modes: pre-sampling, real-time, periodic, and trigger. It includes advanced features such as:

• Automatic pacemaker detection and marking
• Self-analysis of RR, HRV, drug tests and ECG event mode
• Freeze ECG waveform image on screen
• Virtual keyboard and barcode reader for patient data entry

Supports multiple file formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP. The software is multilingual selectable (GB, FR, IT, ES, PT, DE, GR, PL).

Technical specifications:

• ECG leads: 9/12 synchronous
• A/D resolution: 24 bit
• Heart rate: 30–300 bpm ±1
• Sensitivity: Auto, 2.5/5/10/20/40 mm/mV (error < ±5%)
• Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s (error < ±3%)
• Sampling rate: 32,000 samples/sec
• Filters: AC (50–60 Hz), EMG (25–45 Hz), ADS (0.01–0.67 Hz), lowpass (75–300 Hz)
• Frequency response: 0.01–350 Hz (+0.4–3.0 dB)
• Minimum detectable signal: 20 µVp-p

Electrical data:

• Internal noise: ≤ 12.5 µV
• Input impedance: ≥ 100 MΩ (10 Hz)
• Input circuit current: ≤ 10 nA
• Calibration voltage: 1 mV ±2%
• Depolarization voltage: ±900 mV ±5%
• Common mode rejection: ≥ 140 dB (AC filter on), ≥ 120 dB (AC filter off)
• Amplitude quantization: 0.95 µV/LSB
• Recovery time after unloading: < 10 s

Physical characteristics:

• Display: 7" color touchscreen
• Dimensions: 19.7 x 11.2 x 2.6 cm
• Weight: 0.8 kg

Equipment included:

• 1 IEC ECG cable with banana plug (Ø 4 mm)
• 6 adult suction cup chest electrodes (Ø 4 mm)
• 4 adult limb (arm/leg) clip electrodes
• 1 rechargeable lithium battery
• 1 power adapter
• Multilingual manual (GB, IT; on request FR, ES, PT, DE, GR, PL)

Combining portability, diagnostic accuracy and advanced connectivity, NEO ECG S120 represents a complete solution for managing electrocardiography in hospital, outpatient and home settings.
