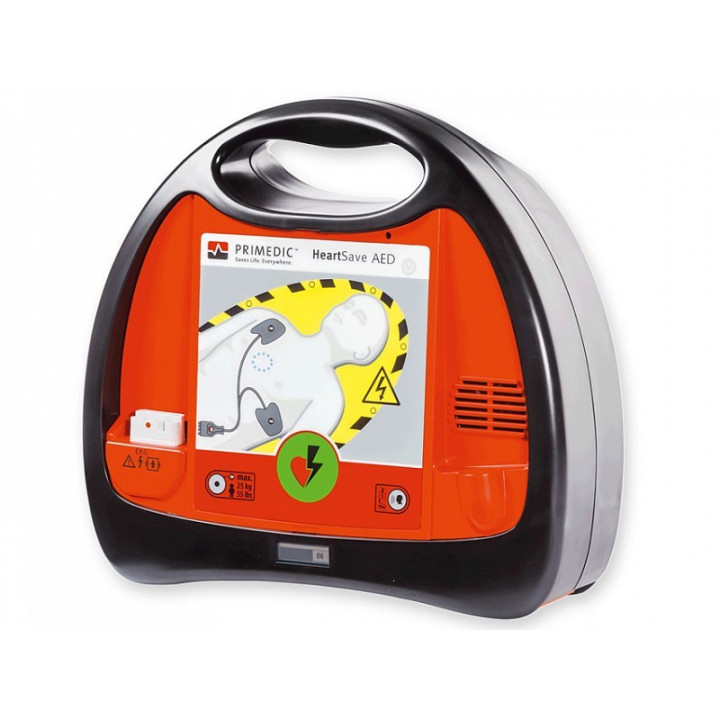

HeartSave AED-M Defibrillator
- with lithium battery (200 discharges with 360J) 6 years standby
- Languages: English, Spanish, Greek, Portuguese

The PRIMEDIC HeartSave product range is quick and easy to use.
Clear voice commands guide rescuers through resuscitation procedures.

- Controlled current defibrillation - CCD
Biphasic CCD technology releases peak-free current to the patient's heart with a controlled, customized,
effective and gentle. Equipped with a staggered defibrillation system, HeartSave has a compensated impedance and is equipped with a maximum energy of 360J.

- Efficient flow
HeartSave is designed to best support rescuers in resuscitation procedures. Thanks to its advanced mode of operation, it helps minimize peri-shock pause and period without resuscitation.

- Pediatric mode
You can select the pediatric mode at the touch of a button. It does not require specific pediatric electrodes and is extremely easy to use.

- Quick
It turns on automatically as soon as it is opened and the heart rhythm analysis begins when the pre-attached electrodes are attached to the patient. All accessories (shaver, mask, scissors and gloves) are included.

- Status display
The screen provides detailed information on the status of the device and batteries (daily and monthly self-test).

- Automatic external defibrillator with 6 years in standby mode with non-rechargeable lithium battery.

- HEARTSAVE AED-M
Large LCD screen for ECG waveform, heart rate, shockable rhythm count, and other relevant information.

1 pc.- Defibrillation
Semi-automatic mode
Waves: controlled biphasic
Power: 50-360J
Charging Time: < 12 sec @ 360J
Asynchronous Operating Mode
Pediatric Mode

- ECG
Lead: II
Impedance Range: 23-200 Ohms
Heart rate: 30-300 per min

- VF/VT detection
VF/VT Detection
Assay Time: 7-12 sec
Asystolic threshold: <0.2mV
Artefact - Pacemaker Detection

- Electrodes
Non-polarized electrodes, 2 m long cable

- LCD monitor
95x72 mm (4.7''/120mm)
320x240 pixels (0.36x0.36 mm)
Battery status display
Speed 25 mm/s
Frequency, No. of Defibrillation, No. of VF/VT, Total Resuscitation Time

- Data backup
Removable memory
Recorded voice

- Power supply
Lithium battery 6 years service life or 200 discharges with 200J - 15 hours monitoring

- Status display
Defibrillator & Battery Status Display - Lithium Battery, 6 Years Standby (200 Shocks with 360J)
- Electrodes
- Voice recording
- Manual: English, Spanish, Greek, Portuguese
