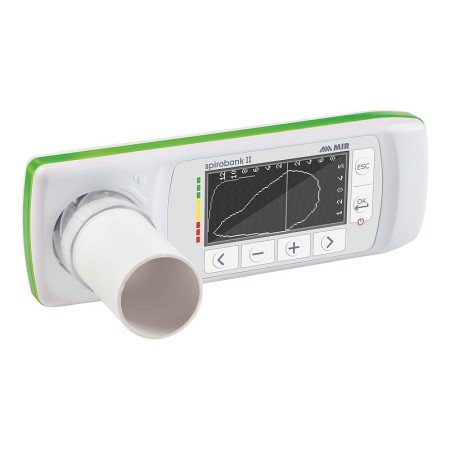

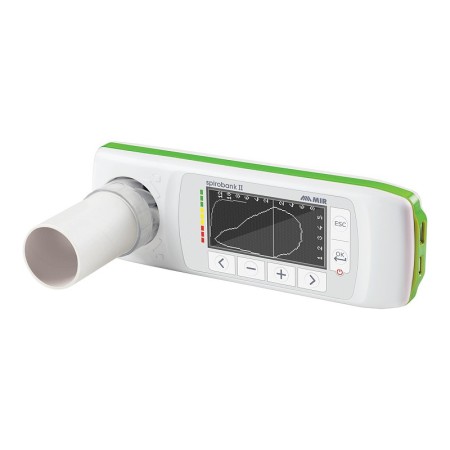

Spirobank II Basic is a simplified and accurate spirometer, ideal for respiratory specialists, general practitioners, clinics, and pharmacies. It can operate independently or connected to a PC via USB cable.

Spirometry Parameters:
- FVC
- FEV1
- FEV1%
- PEF
- FEF25–75
- FET
- Extrapolated Volume
- Lung Age
- VC
- IVC
- IC
- ERV
- PRE and POST Bronchodilator Comparison

Available with reusable (optional) or disposable turbine flow meter.

Automatic interpretation of spirometry:
- Internal temperature sensor for BTPS conversion
- High-resolution backlit display
- Traffic light indicator for immediate interpretation
- Memory capacity for over 10,000 spirometry tests
- Rechargeable battery with long battery life

USB Connectivity:
- Real-time testing on PC via USB

WinspiroPRO PC Software:
- Real-time Flow/Volume and Volume/Time curves
- PRE/POST Bronchodilator Comparison
- Free online updates

Includes pediatric incentive for spirometry and reversibility analysis after bronchodilator and bronchial provocation. It supports Quanjer GLI-2012 predicted values with LLN and Z-score, and offers diagnostic trend graphs for easy follow-up.

Search engine for instant database access and a wide selection of communication protocols.

Technical specifications:
- Dimensions: 55 x 160 x 25 mm
- Weight: 140 g (batteries included)

Turbine:
- Can only be used with FlowMIR disposable turbine (code 910004)

Drums:
- Rechargeable 3.7V 1100mAh Li-ion battery
- Consumption: ~20-30 mA (during testing)

Battery charger:
- Voltage: 5 V DC
- Current: minimum 500 mA
- Input current: 100VAC - 240 VAC
- Connector: Micro USB Type B
- Complies with EN 60601-1

Other features:
- Battery life: 50 hours
- Connectivity: USB 2.0
- Display: monochrome LCD, 160 x 80 pixels
- Keyboard: membrane with 6 keys
- Mouthpiece: Ø 30 mm (1.18 inches)
- Electrical protection type: Internally powered
- Security level: Type BF device
- IP protection level: IPX1
- Conditions of use: Device for continuous use

Storage conditions:
- Temperature: MIN -20 °C, MAX +60 °C
- Humidity: MIN 10% RH, MAX 95% RH

Operating conditions:
- Temperature: MIN +10 °C, MAX +40 °C
- Humidity: MIN 10% RH, MAX 95% RH

Spirometry:
- Sensor: bidirectional digital turbine
- Flow range: ±16L/s
- Volume accuracy: ±2.5% or 50mL
- Flow accuracy: ±5% or 200 mL/s
- Dynamic resistance: <0.5 cm H2O/L/s
- Temperature sensor: semiconductor (0-45°C)
- Tests available: FVC, VC, IVC, POST
- Measured parameters: FVC, VC, IVC, IC, ERV, FEV1, FEV1%, PEF, FEF 25-75, FET, EVOL, ELA
- Memory capacity: more than 10000 tests

Certificates and registrations:
- CE 0476: MDR 2017/745
- FDA 510(k): K 061712
- Health Canada: 71191 (class II)
- EMDN Level 4: Z121501
- CND Code: Z12150102 (spiro)
- GMDN Code: 46906 (spiro)
- Repertoire number: 2494320/R (911021I0)

Applicable rules:
- Electrical safety standard IEC 60601-1:2005 +Amd1:2012
- Electromagnetic compatibility standard EN 60601-1-2:2015
- ISO 26782:2009
- ISO 23747:2015
- ATS/ERS: 2005, 2019 Update

Equipment:
- MIR Spirobank 2 Basic spirometer
- Carrying case
- USB cable
- MIR Spiro Software
