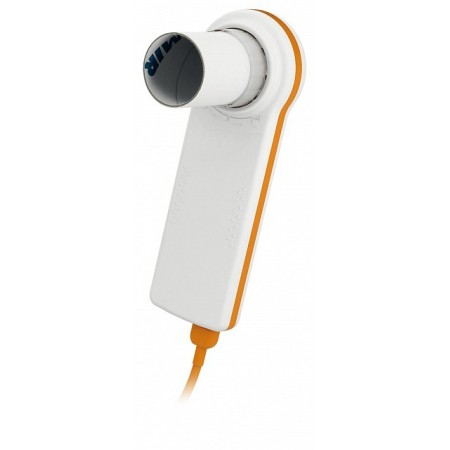

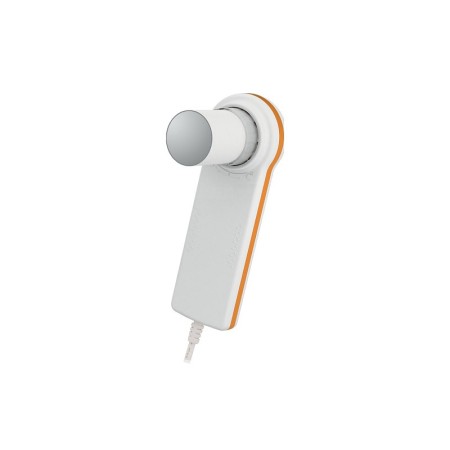

MIR MiniSpir portable spirometer with MIR Spiro software, designed for integration with electronic medical records and accurate readings. Ideal for software-based medical solutions.

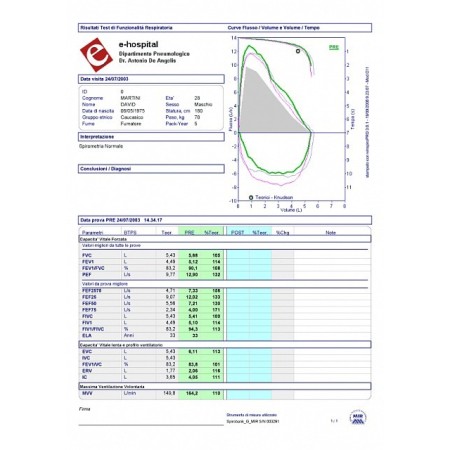

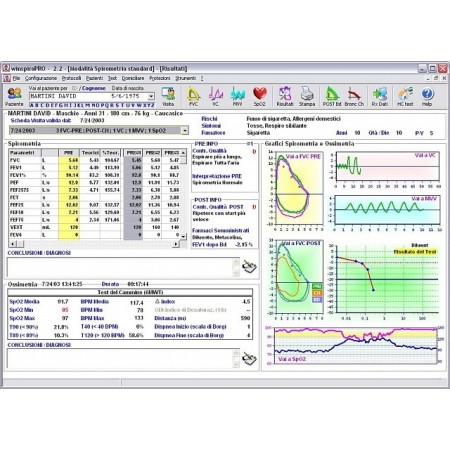

Flow/volume and volume/time curves can be viewed in real time on the PC, ensuring complete and accurate spirometry. It includes a wide range of selectable parameters, spirometry test interpretation, and quality control according to the latest standards. Integrated temperature sensor for BTPS conversion.

Set and predictive values:
- Wide selection of predictive sets (including GLI)
- Predictive values (%Pred comparison, Z-score, LLN)

EHR Connectivity:
- Integration with patient databases on EHR/EMR (HL7, GDT)

Real-time testing:
- Spirometry: FVC, VC, IVC, MVV
- PRE/POST Bronchodilator Comparison

Connect and measure:

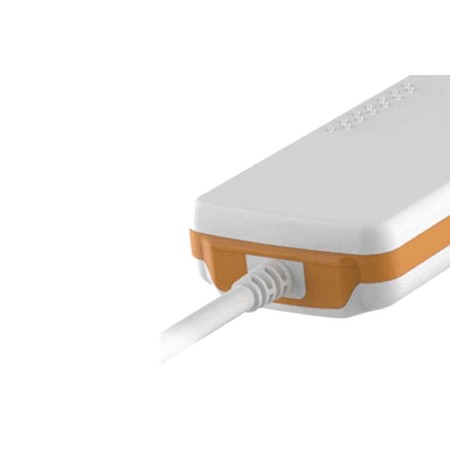

- Powered by USB
- No internal memory
- No display
- No maintenance
- Case included

Connecting to PC:

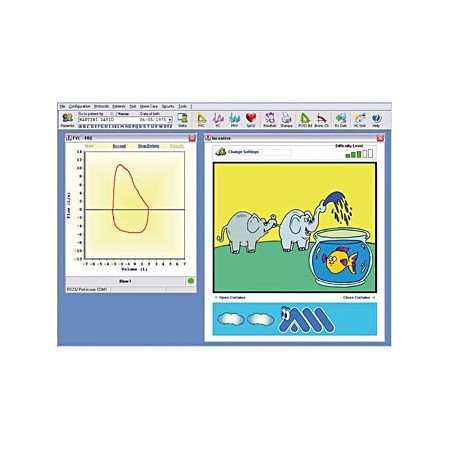

- Real-time testing on your PC screen
- Connection with EHR/EMR
- Internal memory backup

Compliance with ATS/ERS 2019:
- ISO 26782 (spirometry)
- ISO 23747 (PEF)

Dimensions and weight:
- Dimensions: 49.7 x 142 x 26 mm
- Weight: 65 g

Usable turbines:

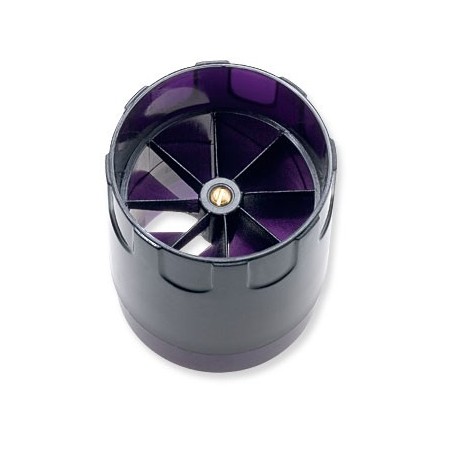

- Reusable turbine (code 910002)

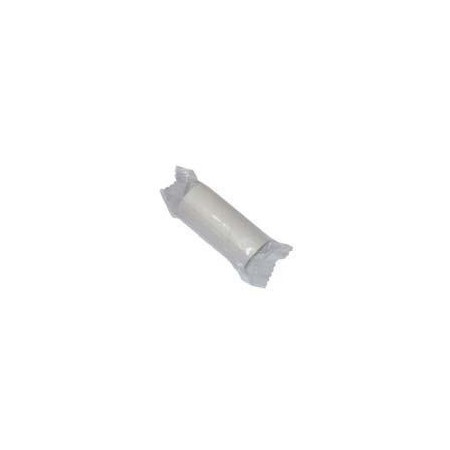

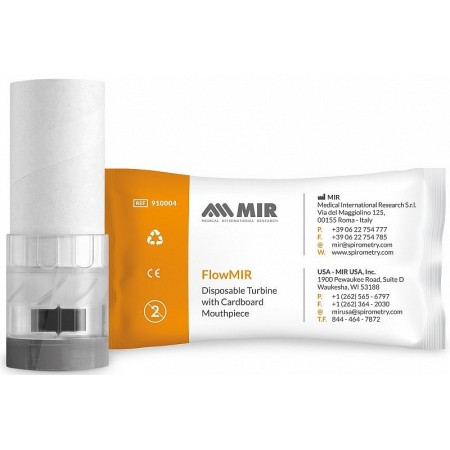

- Disposable turbine (code 910004)

Technical specifications:
- Power supply voltage: 5V DC USB connection
- Rated electrical power: 0.25W
- Rated input current: 50mA max
- Backup battery voltage: none
- Connectivity: USB 2.0
- Display: absent
- Mouthpiece: Ø 30 mm (1.18 inches)
- IP protection level: IPX1
- Electrical protection: Class II device
- Electrical safety level: Type BF device

Storage conditions:
- Temperature: MIN -40°C, MAX +70°C
- Humidity: MIN 10% RH; MAX 95% RH

Terms of Use:
- Temperature: MIN +10°C, MAX +40 °C
- Humidity: MIN 10% RH, MAX 95% RH

Software and memory:
- PC software: MIR Spiro
- Storage capacity: software database on PC

Spirometry:
- Flow sensor: digital bidirectional turbine
- Flow range: ± 16 L/s
- Volume accuracy: (ATS 2019) ± 2.5% or 50 mL
- Flow accuracy: ± 5% or 200 mL/s
- Dynamic resistance: < 0.5 cm H20/L/s
- Temperature sensor: semiconductor (0-45°C)
- Tests available: FVC, VC, IVC, MVV, PRE-POST
- Measured parameters: FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, TPEF, FEF25, FEF50, FEF75, FEF2575, FEF7585, FET, FEV05, FEV05%, FEV075, FEV075%, FEV2, FEV2%, ELA, BEV, FIVC, FIV1, PIF, FIV1/FIVC%, PIF, IRV, VC, IVC, EVC, IC, EI, RFEV, ERV, FIVC, FIV1/FIVC, FEV1/VC%, FIF25, FIF50, FIF75, R50, VT, VE, RR, tI, tE, ti/tTOT, VT/tI, MVV, MVV cal, MV

Certificates and registrations:
- CE 0476: MDR 2017/745
- FDA 510(k): K 122384
- Health Canada: 71191 (class II)
- EMDN level 4: Z121501
- CND Code: Z12150102
- GMDN Code: 46906 (spiro)
- Ministry of Health: 2494682/R
- Applicable standards: Electrical Safety IEC 60601-1 Electro Magnetic Compatibility EN 60601-1-2 ISO 26782: 2009, ISO 23747: 2015 ATS/ERS:2005, 2019(update) IEC 60601-1-6:2010, IEC 60601-1-9:2007+AMD1:2013 IEC 62304:2006 + A1:2015, ISO 10993-1:2018

Equipment:
- MiniSpir Spirometer
- 1 reusable turbine
- User manual
- MIR Spiro Software
