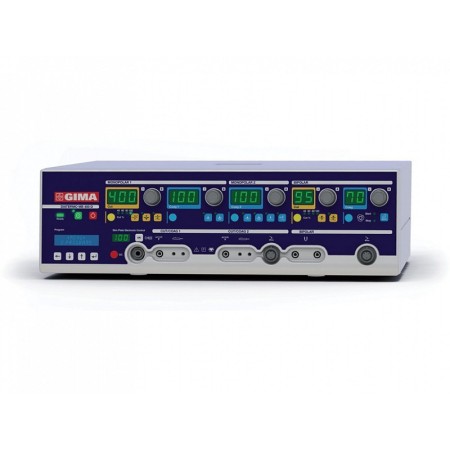

GIMA's Vastavusdeklaratsioon high-frequency electrosurgical unit is designed to perform monopolar and bipolar surgery simultaneously, ensuring precision and safety in various surgical settings.

Dual operational activity:
- Two output channels for monopolar cutting
- Two independent calibrations and channels for frequent monopolar coagulations

Controlled cutting procedures:
- Intensified cutting currents for eschar-free engraving
- Shear current with coagulating properties for dissection with controlled bleeding
- Low capacitive coupling in endoscopic procedures with Slow BLEND current

Double controlled coagulation procedures:
- SPEEDY and DEEP coagulation available for 2 operators
- SPRAY coagulation obtainable with handpiece or pedal

Advanced bipolar features:
- Bipolar cutting with selectable bleeding control
- Slow BLEND cutting currents
- Automatic coagulation start and stop can be activated separately

Total safety for patient and surgeon:
- Continuous verification of the impedance of the contact between the patient's body and neutral plate by electronic SPEC control
- Continuous monitoring of radio frequency leakage current
- Automatic compensation of mains voltage variations

Customized procedures:
- Independent choice of coagulation currents and power levels for each operator
- Ten configurable and retrievable personal procedures

Conducting extensions and connection signals:
- Outputs for pilot-operated connections of argon plasma units and fume extractor

Automatic self-diagnosis:
- Automatic diagnostic check of the functionality of the electronic unit and connected accessories
- Coded indication of the malfunctions found

Applications:
- Outpatient surgery
- General surgery
- Pediatric surgery
- Plastic surgery
- Thoracic surgery
- Vascular surgery
- Dermatology
- Endoscopy
- Gastroenterology
- Gynecology
- Neurosurgery
- Orthopedics
- Otorhinolaryngology
- Pulmonology
- Urology
- Veterinary

Made in Italy.

Specifications:
- Maximum pure CUT monopolar output power: 400 W - 300 Ohm
- Maximum monopolar output power CUT80%: 350 W - 300 Ohm
- Maximum monopolar output power CUT60%: 250 W - 300 Ohm
- Maximum monopolar output power CUT40%: 200 W - 300 Ohm
- Maximum monopolar CUT ENHANCED output power: 250 W - 500 Ohm
- Maximum monopolar BLEND output power: 250 W - 300 Ohm
- Maximum SPEEDY monopole output power: 120 W - 500 Ohm
- Maximum monopolar DEEP output power: 120 W - 200 Ohm
- Maximum monopolar SPRAY output power: 100 W - 2000 Ohm
- Maximum monopolar output power SPRAY ARGON: 100 W - 2000 Ohm
- Maximum power output bipolar CUT: 95 W - 150 Ohm
- Maximum bipolar output power CUT80%: 95 W - 150 Ohm
- Maximum bipolar output power CUT60%: 95 W - 150 Ohm
- Maximum bipolar output power CUT40%: 60 W - 150 Ohm
- Maximum bipolar BLEND output power: 90 W - 150 Ohm
- Maximum BLEND bipolar output power: 70 W - 100 Ohm
- Monopolar/bipolar working frequency: 425 kHz / 525 kHz
- Patient circuit: F
- Selectable input voltage: 115-230 Vac
- Mains frequency: 50-60 Hz
- Electrical input voltage: 1000 VA
- Dimensions WxHxD: 470 x 150 x 400 mm
- Weight: 17.5 kg
- Controls: Patient/plate circuit monitoring, Output power monitoring, Self-diagnosis control
- Security: EN60601-1, EN60601-1-2, EN60601-2-2
- Electrical class: I CF, MDD 93/42/EC Class: II b

Equipment:
- 1 Power cable 5 m
- 1 Autoclavable handpiece with two buttons (30536)
- 5 Sterile cold handpieces with two buttons (30551)
- 1 Plate cable (30559)
- 5 Rem disposable plates (30493)
- 2 HP watertight double pedal sets
- 3 Short blade electrodes 7 cm
- 3 x 16 cm long blade electrodes
- 3 Short ball electrodes Ø 4 mm, 6 cm
- 1 Electrode cleaning sponge
- 1 User Manual (IT, GB)
