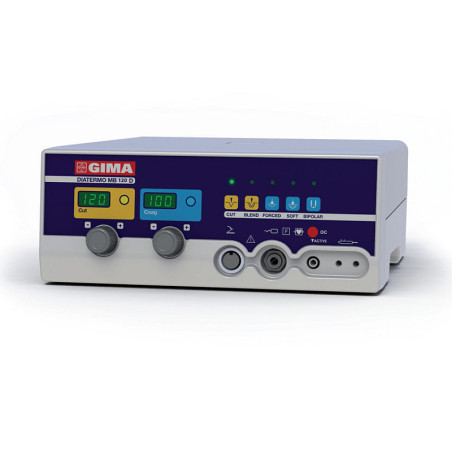

Diatermo MB 120D by GIMA is a high frequency electronic electrosurgical unit, designed for small and medium surgery, in both monopolar and bipolar mode, with a maximum power of 120 Watts .

Thanks to the intuitive selection of operating functions, it allows you to perform:

• Pure cut (CUT) : up to 120 W on 250 Ohm
• Blended cutting (BLEND) : up to 90 W on 200 Ohm
• Surface coagulation (FORCED COAG) : up to 80 W on 150 Ohm
• Deep coagulation without carbonization (SOFT COAG) : up to 60 W on 100 Ohm
• Bipolar coagulation (BIPOLAR) : up to 40 W on 100 Ohm (with special adapter)

The device integrates a microcontroller for continuous monitoring of operating functions and a digital readout of the power output , ensuring maximum precision and safety during surgery. It is also equipped with a system to monitor the correct functioning of the neutral electrode , for safe and reliable surgery.

The functions can be switched directly from the electrode holder handle , which also allows for power activation, avoiding distractions from the operating field. Alternatively, you can use the waterproof operating pedal included in the package.

Technical features:

• Working frequency: 600 kHz
• Selectable power supply: 115 - 230 Vac
• Mains frequency: 50 - 60 Hz
• Maximum power consumption: 300 VA
• Dimensions (WxHxD): 254 x 104 x 288 mm
• Weight: 5 kg
• Neutral electrode: type F
• Controls: plate/patient circuit, power output, self-diagnosis
• Digital adjustment of power and sound intensity
• Automatic saving of last settings

Security and Compliance:

• Standards: EN60601 - 1, EN60601 - 1 - 2, EN60601 - 2 - 2
• Electrical classification: I CF
• Compliance: MDD 93/42/EC Class II b

Accessories included:

• Disposable MB handpiece with 2 buttons
• Waterproof operating pedal (code 30577)
• Flat plate with cable (code 30564)
• Kit of 10 autoclavable electrodes Ø 2.4 mm
• 2m power cord
• User manual in Italian and English (available upon request in French, Spanish, and Polish)

Made in Italy , Diatermo MB 120D is the ideal solution for healthcare facilities that require precision, safety and versatility in the operating room.
