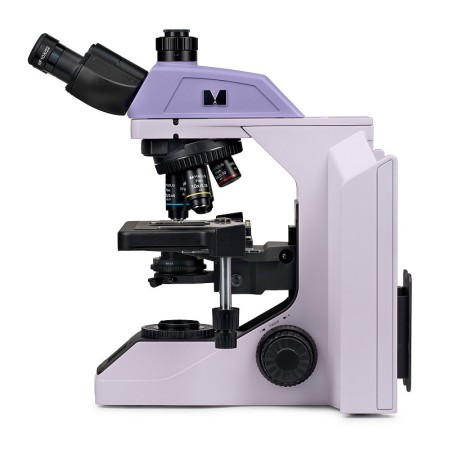

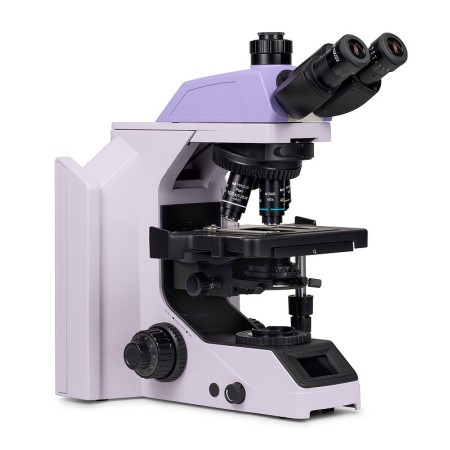

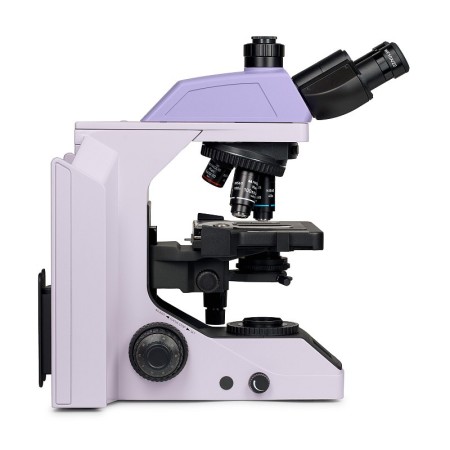

Research microscope. Designed for observing transparent and translucent biological specimens, such as smears and cross-sections, in transmitted light using the brightfield method. Installing additional accessories enables darkfield, phase contrast, fluorescence, and polarization methods.
The coded nosepiece maintains a comfortable brightness level when changing objectives. The microscope’s intelligent illumination control increases the comfort and speed of the researcher’s work. Thanks to the “intelligent” functions, there is no need to worry about the settings; the user can focus entirely on solving their tasks.

Microscope head

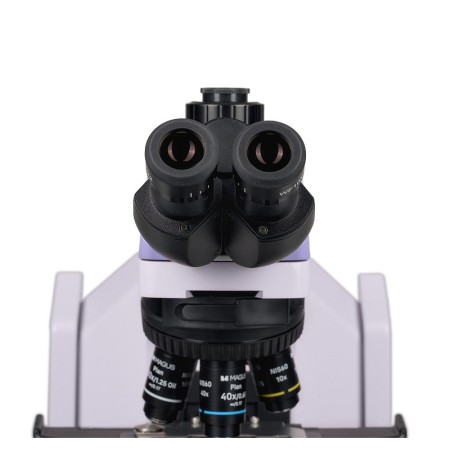

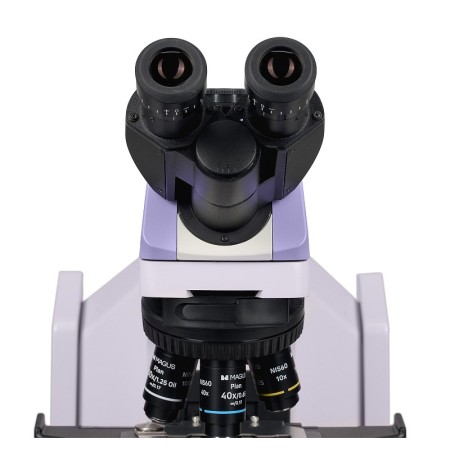

Trinocular head with infinity-corrected optics. The eyepiece tubes can rotate through 360°. The user can adjust the eyepiece interpupillary distance to suit their height. A digital camera can be installed in the trinocular tube. The beam splitter along the optical path has a ratio of 50/50. The basic kit includes 10x eyepieces with 22 mm field of view, diopter adjustment, and long eye relief for use with glasses.

Nosepiece and objectives

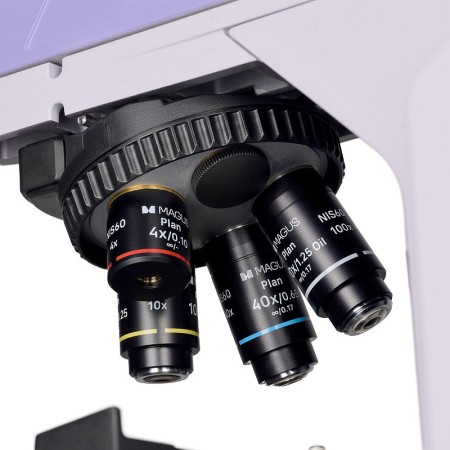

The coded nosepiece accommodates 5 objectives and faces inward: the user can see which objective is in the optical path, while the space above the stage remains clear. Alternatively, an additional objective can be installed in the empty slot for extra magnification. The parfocal distance is 60 mm.
The nosepiece has a slot with a socket for installing the analyzer.

Maintaining comfortable brightness levels when changing magnification

Objectives with different magnifications transmit light at different intensities, so the brightness must be adjusted each time the objective is changed. In addition, the brightness increases sharply when switching from a higher-magnification objective to a lower-magnification one. The sharp increase in brightness causes eye strain. MAGUS Bio 270T is equipped with intelligent brightness control. The optimal light intensity level is switched automatically for each objective, eliminating unexpected changes in brightness when changing magnification. This feature optimizes workflow and reduces eye strain.

Focusing mechanism

When studying a large number of specimens, the operator constantly uses the fine-focus knob. To reduce wrist strain, the microscope has a responsive mechanism with smooth travel. The fine-focus knob has special grooves for the fingers. Fine focusing requires little effort, and the right hand does not get tired.
The coarse- and fine-focus knobs are coaxial and positioned low. The researcher can rest their hands on the table and sit comfortably at the microscope.

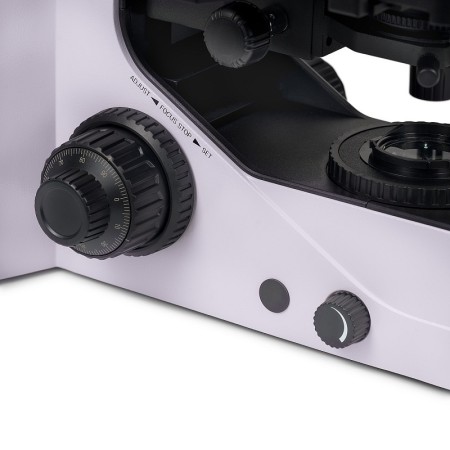

The coarse-focus lock knob helps quickly adjust the microscope after changing the specimen. The knob is located on the left side of the microscope, on the same axis as the focusing mechanism.

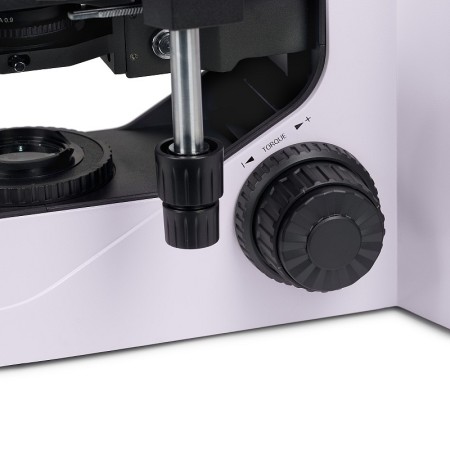

The ring on the right side adjusts the tension of the coarse-focus knob. The user can set the appropriate tension for observations.

Stage

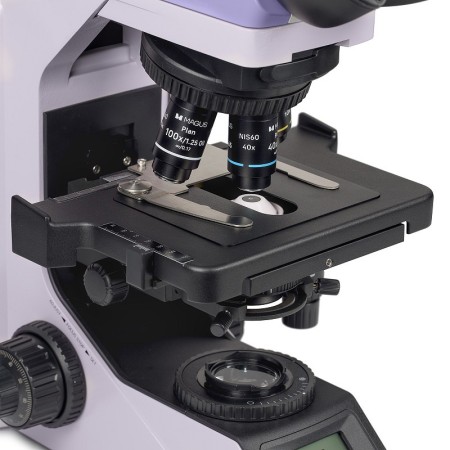

To ensure ergonomic use, the stage has no rack-and-pinion positioning mechanism along the X-axis. The belt-driven mechanism allows smooth specimen movement. The specimen holder is secured with two screws and can be easily removed for manual scanning.
The stage’s long control handle ensures comfortable observations: the hand rests on the stage without effort.

Condenser

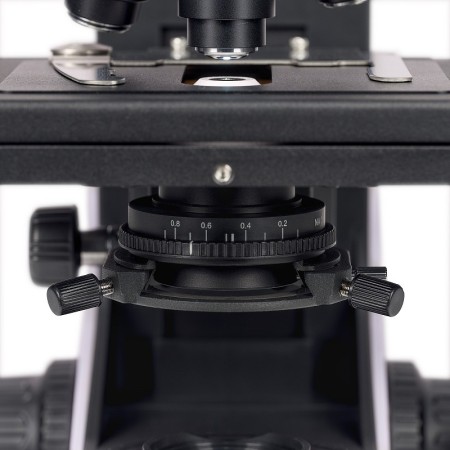

The Abbe condenser is height-adjustable and can be centered. Mounting type: dovetail.
The condenser ring adjusts the iris aperture diaphragm. The condenser body has an aperture mark, and the ring has an indicator mark. To achieve contrast with each objective, turn the ring so that the indicator mark aligns with the aperture mark for the objective in use.

Illumination

The transmitted-light illuminator contains a 3 W LED. The microscope illuminator allows the color temperature to be adjusted between 3000 and 7000 K. The user can select a comfortable color temperature and easily change it at the touch of a button when the specimen requires a change in illumination.
The LED service life is 50000 hours.

Transmitted-light Köhler illumination

The light source is located in the base at the rear of the microscope, and a mirror directs the light toward the collector. Image contrast is adjusted using the condenser aperture diaphragm, while the illuminated field area is adjusted using the collector’s field diaphragm.
Köhler illumination improves the image quality of the specimen being observed: each objective achieves its maximum resolution, and the field of view is evenly illuminated without darkening at the edges. The specimen is sharp and free of image artifacts.

LCD status display

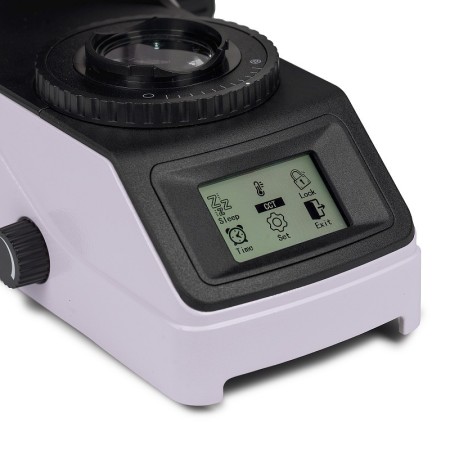

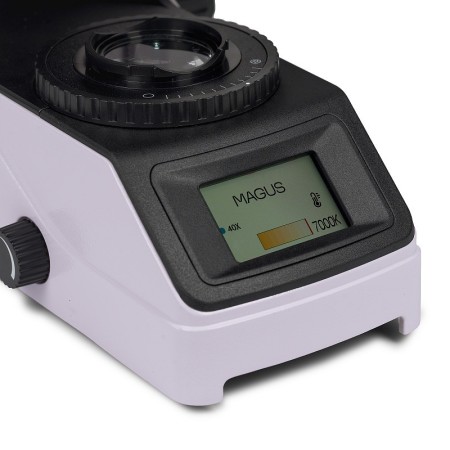

The LCD on the microscope base displays the objective magnification, brightness, and light-source color temperature, as well as the operating mode (“standby,” “eco”).
Using the display and its associated knob, the user adjusts brightness, selects the color temperature, locks the brightness adjustment, and sets standby mode and the automatic shutoff timer.

Ergonomic design

Physical discomfort causes fatigue and reduces productivity. The ergonomic design of the microscope plays an important role in everyday scientific research. MAGUS Bio 270T provides user comfort during work.
By rotating the microscope head, the user can select the viewing height to avoid straining the back and neck.
The focusing knobs are positioned at the base of the microscope, so the user does not strain their hands. Thanks to the mechanism’s smooth movement, the user can focus on the specimen with ease.
The microscope requires minimal hand movement to operate, thanks to the long stage handle and focusing handle being located in the same working area.
The microscope is equipped with a special carrying handle.

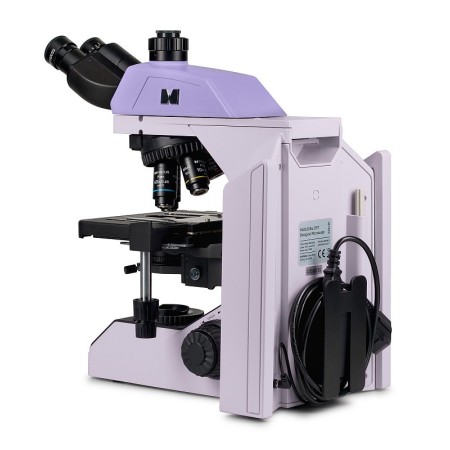

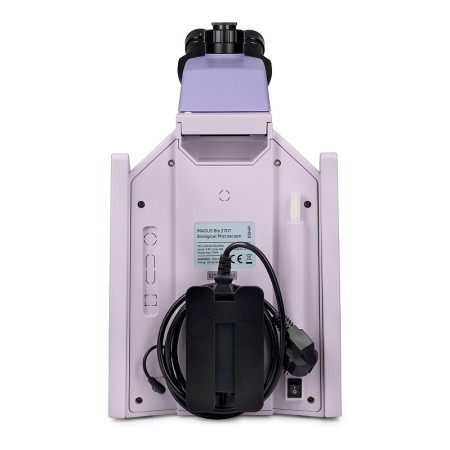

The concealed position of the power supply and power cable improves the appearance of the workspace and safety when transporting the microscope, as well as making it easier to store the device.

Accessories

A range of accessories has been designed for this microscope.
Optional objectives provide additional magnifications.
Eyepieces extend the microscope’s magnification range. Optional eyepieces help maximize the potential of the objective used most often.
The phase contrast device, reflected-light illuminator, darkfield condensers, and polarization device extend contrast techniques and enable examination of specimens invisible in brightfield.
A digital camera displays the microscope image on a monitor and saves files, while the software measures specimens in real time.
A calibration slide can be used to measure specimens and combined with a graduated eyepiece or camera software.

Key features:

• Observation of transparent and translucent specimens in brightfield and transmitted light
• Trinocular head with a vertical tube for installing a digital camera and height adjustment to suit the observer; beam splitting 50/50
• Coded nosepiece: the light-source brightness is set automatically according to the selected objective
• The transmitted-light illuminator is an energy-efficient 3 W LED with a service life of up to 50000 hours
• Transmitted-light Köhler illumination; centered, height-adjustable condenser with objective aperture markings
• Intelligent illumination control system: automatic brightness selection, light dimming lock, automatic timer shutoff, LCD status display
• Stage without an X-axis rack-and-pinion positioning mechanism and with a long control handle for comfortable operation
• Ergonomic stand with a carrying handle and concealed positioning of the power cable and power adapter
• Wide range of compatible options and accessories

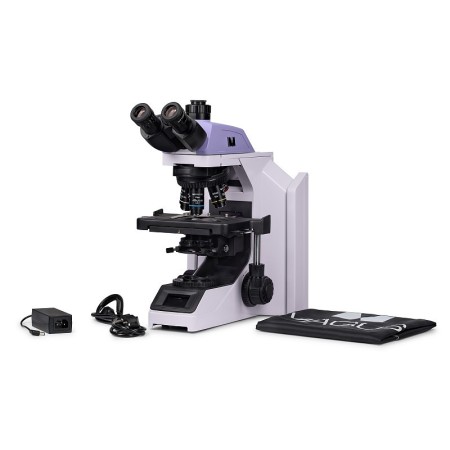

The package contains:

• Stand with transmitted-light source, focusing mechanism, LCD screen and revolving nosepiece
• Stage support with condenser mount
• Stage with specimen holder
• Abbe condenser
• Trinocular head
• Plan achromatic objective: Plan 4x/0.10 ∞/–, parfocal height 60 mm
• Plan achromatic objective: Plan 10x/0.25 ∞/–, parfocal height 60 mm
• Plan achromatic objective: Plan 40x/0.65 ∞/0.17, parfocal height 60 mm
• Plan achromatic objective: Plan 100x/1.25 oil ∞/0.17 (with spring mechanism), parfocal height 60 mm
• Eyepiece 10x/22 mm with long eye relief and diopter adjustment (2 pcs.)
• Eyecup (2 pcs.)
• C-mount adapter
• Microscope adapter and power cable
• Dust cover
• User manual and warranty certificate

Available on request:

• Eyepiece 10x/22 mm with reticle scale
• Eyepiece 10x/22 mm with reticle
• Eyepiece 10x/22 mm with crosshair
• Eyepiece 12,5x/16 mm (2 pcs.)
• Eyepiece 15x/16 mm (2 pcs.)
• Eyepiece 20x/12 mm (2 pcs.)
• Eyepiece 30x/8 mm (2 pcs.)
• Plan achromatic objective Plan 2x/0.06 ∞/–, parfocal distance: 60 mm
• Plan achromatic objective Plan 20x/0.40 ∞/0.17, parfocal distance: 60 mm
• Plan achromatic objective Plan 60x/0.80 ∞/0.17, parfocal distance: 60 mm
• Plan apochromatic objective Plan Apo 60x/1.42 oil ∞/0.17, parfocal distance: 60 mm
• Plan achromatic objective Plan 100x/1.10 ∞/0.17 water, parfocal distance: 60 mm
• Plan semi-apochromatic fluorescence objective set: 4x, 10x, 20x, 40x, 100x (oil); ∞/0.17; parfocal distance 60 mm
• Phase contrast device: phase contrast condenser, phase objective set, centering telescope
• Dark-field condenser NA 0.7–0.9
• Immersion dark-field condenser NA 1.3–1.26
• Differential interference contrast (DIC) device
• Epi-fluorescence attachment with LED light source, fluorescent filter cubes and power cable
• Polarizer device
• Digital camera
• Calibration slide
• Color filter set (blue, green, yellow, frosted glass)
• C-mount adapter
• Monitor
