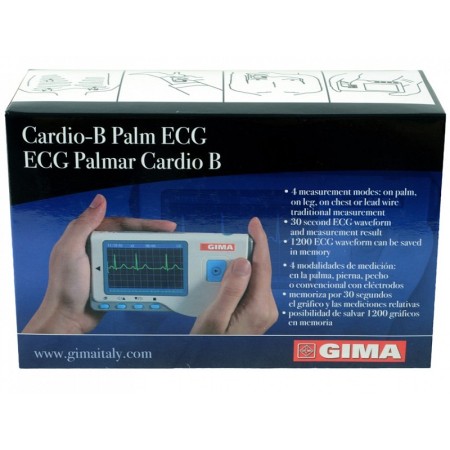

GIMA 's Cardio B handheld ECG is a compact, portable device designed for daily monitoring of cardiac activity , ideal for general practitioners, occupational physicians and for home use by patients suffering from cardiovascular diseases such as hypertension or coronary heart disease.

To be used exclusively as a first screening tool , it is not indicated for use on newborns and does not replace a multi-lead ECG for in-depth clinical analyses.

The device allows ECG detection in four modes :

• on the palm
• on the leg
• on the chest
• via cable and electrodes (optional accessory)

The measurements, lasting 30 seconds , can be stored for up to 1200 traces or 10 hours of continuous recording . The collected data can be used as a reference for clinical applications and analyzed through automatic reports of 17 different types .

The device is equipped with a USB 2.0 interface for connection to a PC (optional cable and software), allowing advanced data management.

Technical features:

• ECG bandwidth: 1 Hz – 40 Hz
• Pulse measurement range: 30 – 240 bpm ± 2 bpm
• Dot matrix LCD display: 240 x 160
• Display size: 57.6 x 40 mm
• Power supply: 2 AAA batteries
• Dimensions: 125 x 70 xh 21.5 mm
• Weight: 106 g

Supplied with a user manual and multilingual box (GB, FR, IT, ES), for easy and accessible use in different linguistic contexts.
