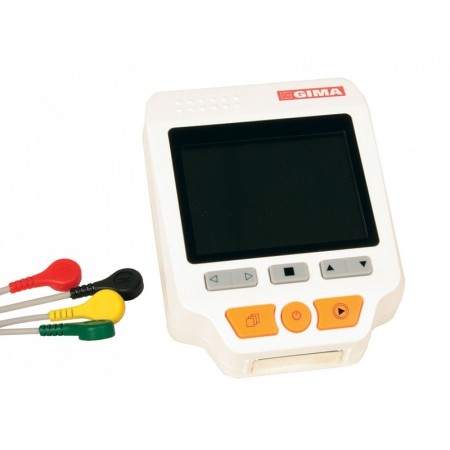

The GIMA Cardio C 3-channel handheld ECG is a portable electrocardiographic device designed to provide fast, reliable, and easily accessible measurements in healthcare settings. Its compact, lightweight, and easy-to-handle design (13 x 9.5 x 3.2 cm) makes it ideal for use in the office, at home, or on the move.

The device features a 3.5" color TFT display for clear viewing of the ECG waveform and automatic interpretation of results. The intuitive interface with a single button to start measurements simplifies use even in emergency situations.

It offers up to 19 types of analyses and reports , with a 32 MB internal memory capable of recording up to 24 hours of 1-channel waveforms or 8 hours of 3-channel waveforms . Data can be reviewed, deleted or transferred to a PC via the included software and USB connection.

The Cardio C supports several ECG measurement modes:

• Directly on the palm, wrist, torso or leg via integrated electrode
• With external leads using clamp electrodes (code 33364) or torso electrodes (code 33327)

Technical specifications:

• Heart rate measurement range: 30 - 240 bpm
• Accuracy: ±2 bpm or ±2% (whichever is greater)
• ECG bandwidth: 0.5 Hz - 40 Hz
• Internal noise level: ≤ 30 µVp-p
• Display scale: 5.0 mm/mV ±10%
• Common Mode Rejection Ratio (CMRR): ≥ 60 dB
• Wave scanning speed: 20 mm/s ±10%
• Input current: ≤ 0.1 µA
• Input impedance: ≥ 5 MΩ
• Power supply: 4 AA alkaline batteries
• Operating voltage: 4.4 ~ 6 VDC
• Average consumption: ≤ 160 mA
• Adjustable auto-off from 1 to 5 minutes
• Low battery indication: VDC ± 0.2 VDC

Standard equipment:

• PC software with USB cable
• Transformer
• 4-terminal ECG cable
• 25 disposable electrodes
• 4 AA alkaline batteries

The Cardio C Handheld ECG device represents an efficient and versatile solution for cardiac monitoring, with advanced performance and ease of use, ideal for doctors, nurses and healthcare professionals who need a portable and professional diagnostic tool.
