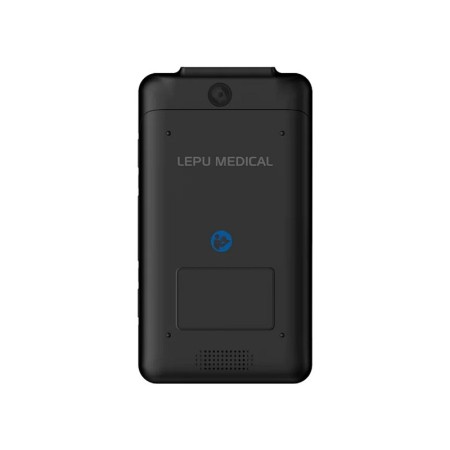

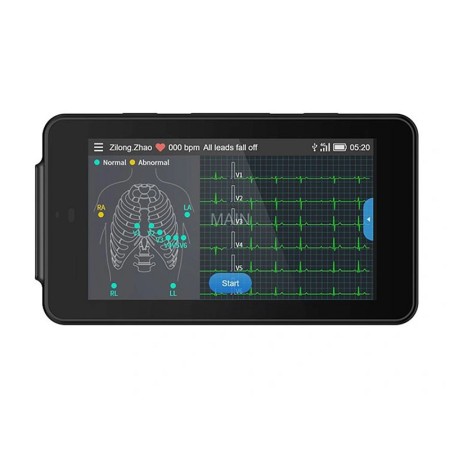

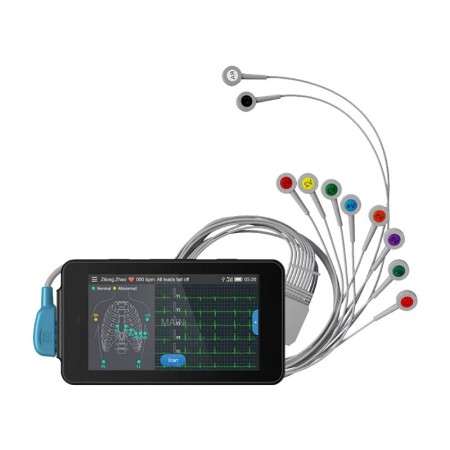

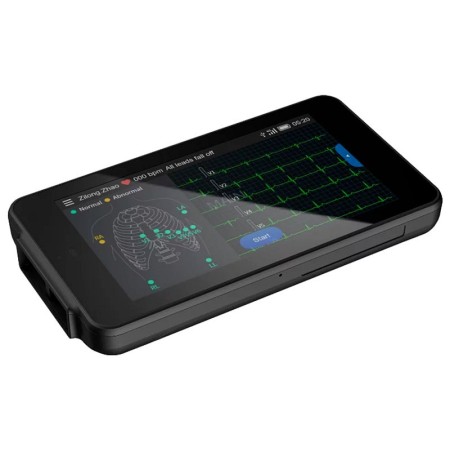

The PCECG - 500 pocket-sized handheld electrocardiograph with Glasgow interpretation from Lepu Medical is a professional, compact, and lightweight ECG device designed for rapid and reliable use in healthcare settings. Its advanced technology allows for synchronous acquisition and analysis of 6- or 12-lead ECG waveforms, including heart rate measurement and automatic detection of poor electrode contact.

The device integrates the Glasgow algorithm , which provides automatic interpretation of waveforms, measured parameters, and diagnostic results, offering immediate and precise clinical support. It also features automatic pacemaker pulse detection and marking .

Main features:

• 4.46" color LCD touch screen, 480x854 pixel resolution
• Built-in HD camera
• Acquisition modes: automatic and R - R
• More than 24 hours of continuous operation
• Data transfer via Wi - Fi and -
• Compatible with external printers via Wi - Fi

Technical specifications:

• Detection method: peak - peak
• Measuring range: 30–300 bpm; ±1 bpm
• Sensitivity: 2.5, 5, 10, 20 mm/mV; ±5%
• Input impedance: ≥50 MΩ (10 Hz)
• Sampling rate: 2000 samples/sec
• Sampling mode: pre-sampling, real-time, periodic, trigger
• CMRR: ≥100 dB (active AC filter)
• Frequency response: 0.05–150 Hz +0.4 dB (–3.0 dB), 10 Hz
• Time constant: ≥3.2 s
• Configurable filters:
  • AC Filter: 50 Hz, 60 Hz, Off
  • EMG Filter: 25 Hz, 35 Hz, 45 Hz, Off
  • ADS Filter (Anti - Drift System): 0.05 Hz, 0.32 Hz, 0.67 Hz
  • Low pass filter: 75 Hz, 100 Hz, 150 Hz, off
• Scroll speed: 5, 6.25, 10, 12.5, 25, 50 mm/s; ±3%

Power supply: Built-in rechargeable 3.8V - lithium-ion battery, charging time about 8 hours.

Dimensions and weight: 134 × 74 × 17 mm; weight 250 g (including battery), comparable to a smartphone, ideal for mobile use.

Standard equipment:

• 1 ECG lead cable
• U - Disk with Type-C and USB port
• 2 sets of 10 disposable ECG electrodes for adults
• USB cable
• Rechargeable lithium-ion battery
• Multilingual manual (GB, FR, IT, ES, PT, DE, PL, GR, RU)

The PCECG - 500 is the ideal solution for doctors, nurses and healthcare professionals who need a portable, accurate ECG instrument with advanced diagnostic capabilities , perfect for use in the office, at home or in emergency situations.
