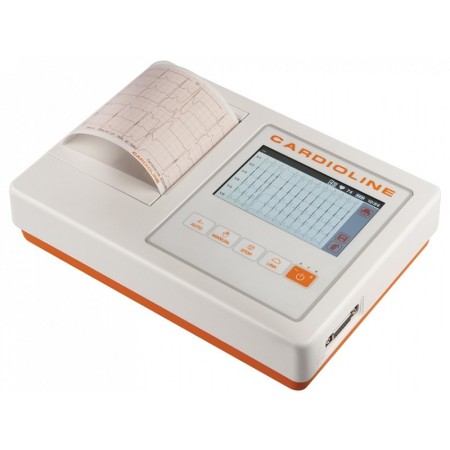

ECG CARDIOLINE 100L BASIC - 5" screen

Cardioline ECGs are designed to quickly and easily capture a 12-lead resting ECG in a doctor's office.

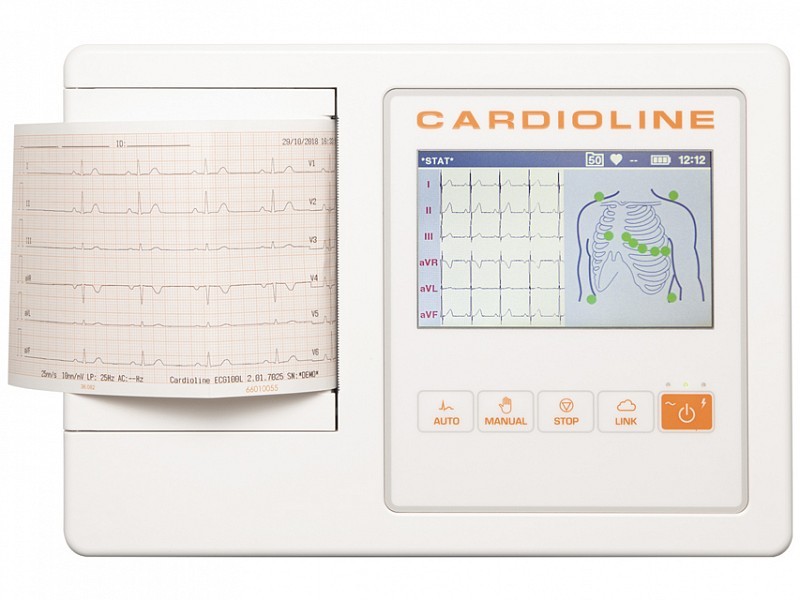

Particular attention has been paid to ease of use, with a bright 5" (54200-2) or 7" (54204-5) color touch screen and dedicated keys for quick operation.
The user is guided step-by-step through ECG acquisition, from electrode placement to quality control, acquisition, printing, and storage.
At the touch of a button, ECGs can be acquired in Auto, Manual, Stat or Rhythm mode.
The new ECG Rhythm feature allows analysis of the 3-minute ECG rhythm, including heart rate trend and variability.
ECG files can be stored on the device or exported via a USB connection to a PC or memory stick.

Support for most print sizes
Standard or cabrera 3, 3+1, 3+3, 6 or 12 (12 only 54204-5) channels in automatic mode and 3, 6 or 12 print channels in continuous mode as well as rhythm strip printing.

Switchable multi-lingual internal software, in 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL.

Glasgow Algorithm for Pediatric and Adult Interpretation (54201 - 54205 only)
The algorithm can diagnose any abnormality usually recognizable by ECG: myocardial infarction, including AMI, ventricular hypertrophy, ST-T segment abnormalities, and common rhythm abnormalities. The program also detects disorders such as conduction delay and QT interval prolongation.

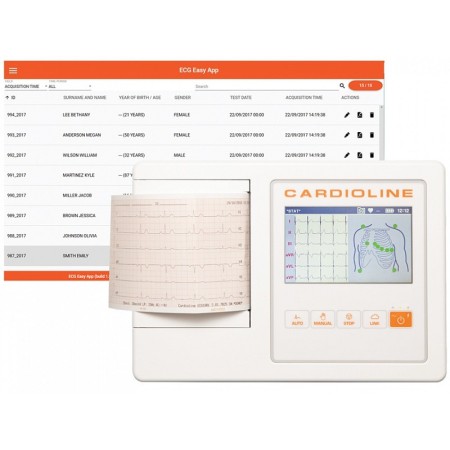

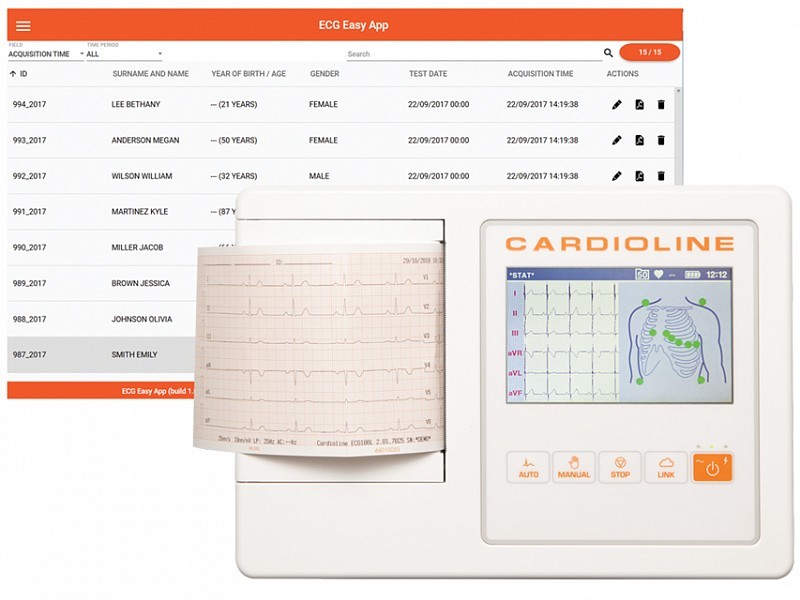

ECG EasyApp to manage patients' ECGs (supplied with 54202, 54205, optional for 54200-1, 54204)
With this App, ECG captures can be received in SCP format on a PC (via USB) and printed. Patient data and automatic interpretations provided by the ECG, including exam results, are editable. The operator can also customize the rhythm stripe pattern with specific commands (speed, gain, filter, and so on).

1 pc.

ECG acquisition
- ECG channels: 12 leads (I, II, III, aVR-L-F, V1-6)

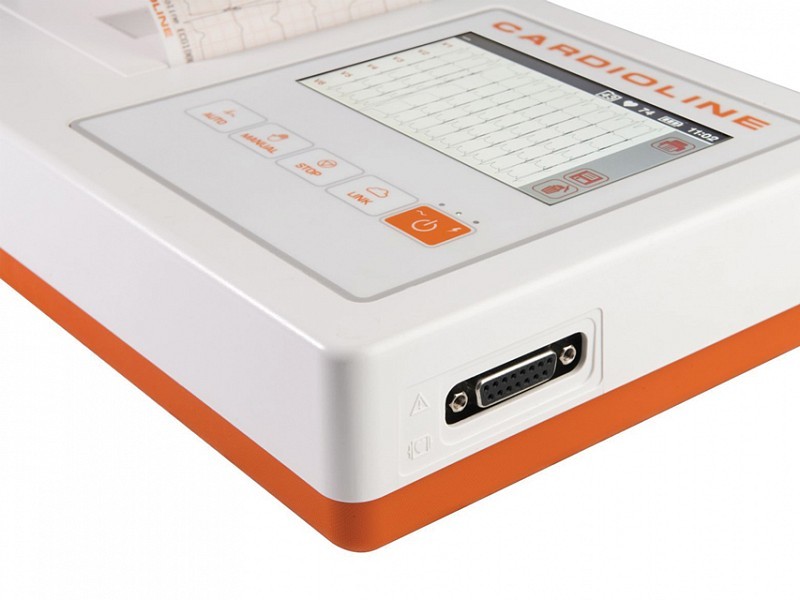

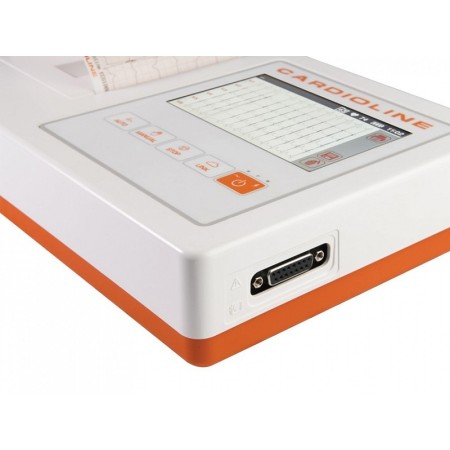

- Patient cable: Standard 15D, 10 wires
- CMRR: >100 dB
- Input impedance: 100 MOhm
- Input stage sampling rate: 32000 samples/second/channel
- ECG resolution: 5μV/LSB; 500 s/s
- Dynamic range: ± 325 mV
- Bandwidth: Performance equivalent to 0.05-150 Hz
- Pacemaker Recognition: Paired hardware recognition with digital convolution filter
- Filters: Digital diagnostic high-pass filter with linear phase (according to 60601-2-25 2^ ed.). 50/60Hz AC Adaptive Digital Interference Filter. 25/40Hz Digital Low-Pass Filter, for Display and Print Only
- Defibrillation protection : AAMI/IEC standard
- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
- Acquisition modes: Automatic (12 leads), Manual (3/6 leads), Stat (12 leads), Rhythm (1/3 leads)
- Configuration: Standard or Cabrera
- Deriv. fault detection: Independent on all branches
- Measurement. Heart rate: 30-300 bpm
- ECG measurements: All leads, average, corrected; HR; Medium RR; PR interval; QRS duration; QT and QTc interval, with Hodges, Bazzet and Fridericia's formula, max R[V5] or [V6] and S[V1]; Sokolow-Lyon index; P, R, T axes
- ECG Memory: 50 ECGs
- Export format: SCP-PDF

Screen
- Type: 5" backlit color TFT LCD with capacitive touch panel
- Resolution: 800 x 480
- Data displayed: 3/6/12 leads in real time

Printer
- Thermal head: 108 mm
- Resolution: 8 dots/mm

Physical characteristics
- Dimensions/weight: 270x190x60 mm - 1.48 Kg

Electrical Characteristics
- Power supply: 100-240V, 50/60 Hz
- Power supply protection rating: IP20
- Battery Type: NiMH
- Battery life: more than 500 ECGs, more than 6 hours
- Charging time: 4 hours up to 85% of total capacity

Regulations and safety
- DDM 93/42/EEC Class IIa
- IEC 60601-1-2 (electromagnetic compatibility): Group 1 - Class B
- IEC 60601-1 (electrical safety)
- Electric shock protection: IP (internal power supply), Class I (on external AC/DC power supply)
- Protection against water: IXP 0

Patient cable
2 rolls of paper
Battery
Power cord
Adapter for 4 mm snap connector (pack of 10)
Disposable tab electrodes (pack of 100)
CD manual (GB, FR, IT, ES, PT, DE, NL, CZ, HR, HU, PL, RO, RU)
