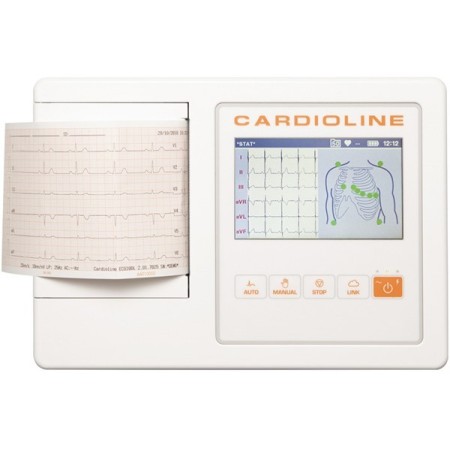

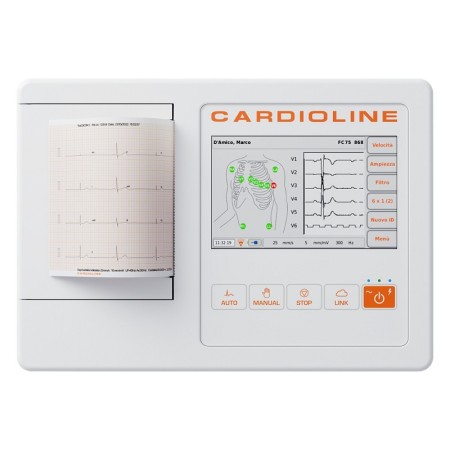

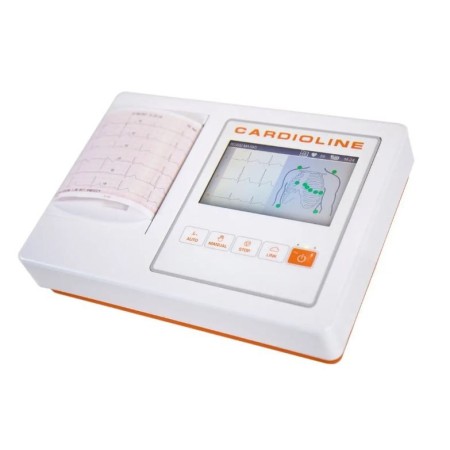

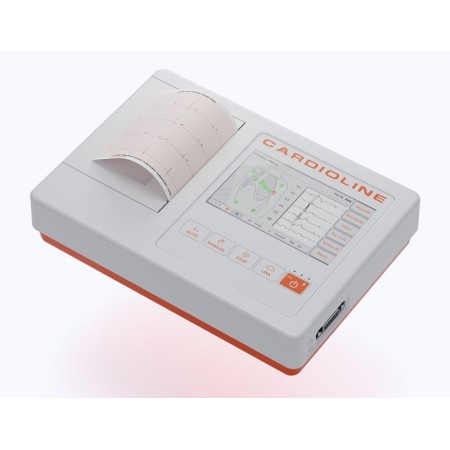

The ECG100L TouchScreen by CARDIOLINE is an advanced electrocardiograph that combines portability and ease of use with world-renowned superior quality. Equipped with a backlit, color 5-inch TouchScreen display and five dedicated keys, it provides quick access to the main functions.

The ECG acquisition procedure is simplified with step-by-step guidance that includes electrode placement, quality control, acquisition, printing and archiving. Automatic, manual, STAT or rhythm ECGs can be acquired with a single key, and files can be stored on the device or transferred via USB.

Technical specifications:
- ECG leads: 12 leads (I, II, III, aVR-L-F, V1-6)
- Patient cables: Standard 15D, 10-wire
- CMRR: > 100 dB
- Input impedance: > 100 MΩ
- Sampling: 32000 samples per second per channel
- ECG resolution: 500 samples per second; 5 μV/LSB
- Dynamic range: +/- 330 mV
- Bandwidth: 0.05 - 150 Hz
- Pacemaker detection: Hardware detection combined with digital convolution filtering
- Filters: Fully digital diagnostic high-pass filter; digital adaptive AC interference filter (50/60 Hz); digital low-pass filter
- Defibrillator protection: AAMI/IEC standard
- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
- Acquisition modes: Automatic (12-lead), Manual (3/6 leads), Stat (12-lead), Rhythm
- Configuration: Standard or Cabrera
- Lead contact recognition: Independent on all leads
- ECG measurements: All leads, median beats, corrected QT, Sokolow-Lyon Index

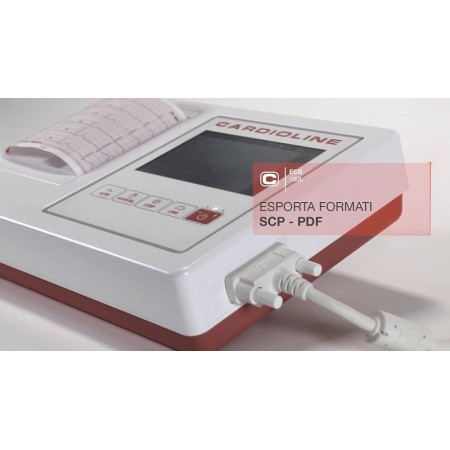

- Export to: SCP-PDF

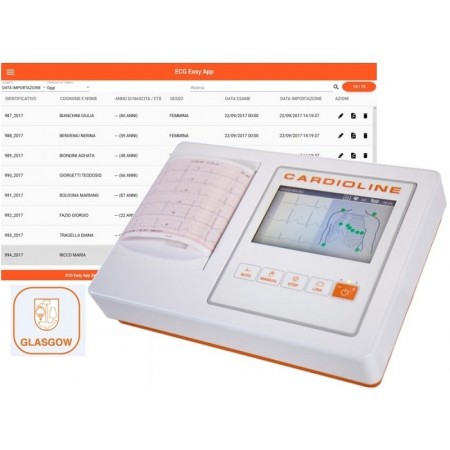

- PC-ECG Easy App: PC application dedicated to managing electrocardiograms

The Glasgow interpretation algorithm for the 12-lead resting ECG provides comprehensive interpretations, considering age, sex and race criteria. It also includes neonatal and pediatric interpretation, and recognition of acute myocardial infarction with ST elevation. The device operates on battery power or mains power.

Included equipment:
- IEC ECG patient cable, 10 wires, 4 mm plug
- Universal 4mm plug adapters, 10 pieces
- Disposable ECG tab electrodes, pack of 100 pieces
- Heart rate ruler
- AC/DC medical power supply
- 10A power cable
- EasyAPP PC software
- Glasgow interpretation
