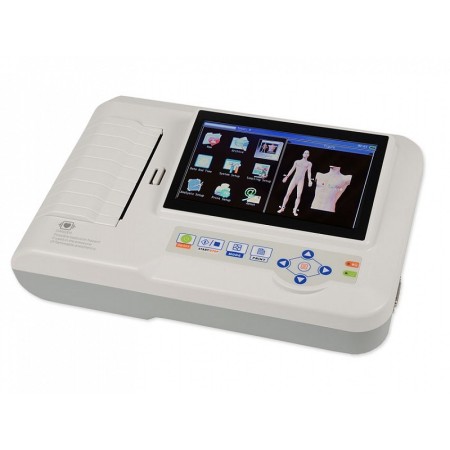

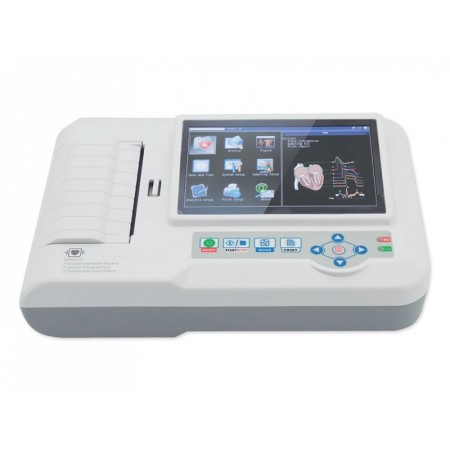

The 600G 6-channel ECG device offers advanced technology for monitoring up to 12 channels simultaneously. Equipped with a 7-inch color TFT LCD touchscreen, it enables simultaneous display of 12 leads. Thanks to digital isolation and signal processing technology, the device includes a digital filter to ensure accurate measurements. Patient data management is facilitated by entering the name, age and ID, and it provides a detailed analysis report. The integrated rechargeable lithium battery ensures extended use, while the thermal printing system offers 10 printing modes, allowing up to 150 ECGs to be printed in 90 minutes. The internal memory can store over 1000 examinations and supports the USB connection for real-time transmission to a PC. The ECG-Synchronous software enables remote data analysis, diagnosis and management. It supports multiple languages in both the built-in software and the PC software.

Technical specifications:
- Safety type: Class I, type CF applied parts
- Leads: 12 standard
- Sampling frequency: 1000 Hz
- Frequency response: 0,05Hz~150Hz (-3dB, +0,4dB)
- Time constant: = 3,2s
- CMRR: >100dB (add filter)
- Noise level: <15µVp-p
- EMG interference filter: 25Hz/35Hz (-3dB)
- AC filter: 50Hz/60Hz (-20dB)
- Recording mode: Thermal printer (32 dots/mm)
- Paper type: 110mm × 20m
- Sensitivity: 2.5, 5, 10, 20, 40 mm/mV
- Printing speed: Automatic recording: 25mm/s, 50mm/s, rhythm recording: 25 mm/s, 50 mm/s, manual recording: 25 mm/s, 50 mm/s
- Power supply: AC 110-220V, 50/60 Hz
- DC - lithium battery: 7,4V, 3500 mAh
- Fuses: 2 pcs. f5×20mm AC time-delay; T2A/250V (Power supply: 220 V)
- Dimensions: 315 x 215 x 77 mm
- Net weight: 1.7 kg

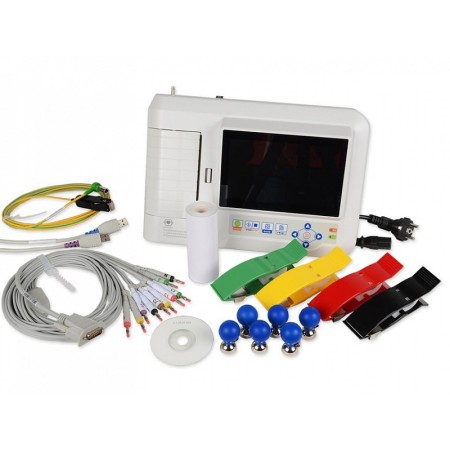

Contents:
- ECG cable: 1 set
- Limb clip electrodes: 1 set
- Precordial electrodes: 1 set
- Grounding cable
- Power cable
- Paper roll
- USB connection and PC software
