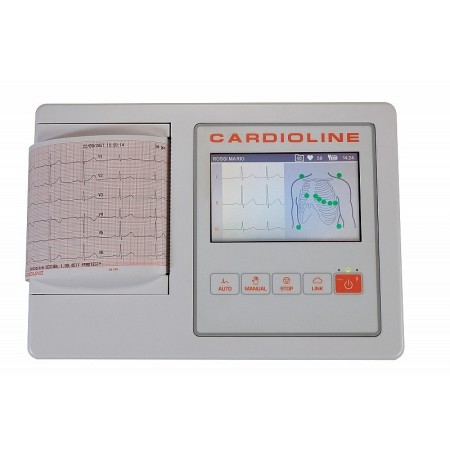

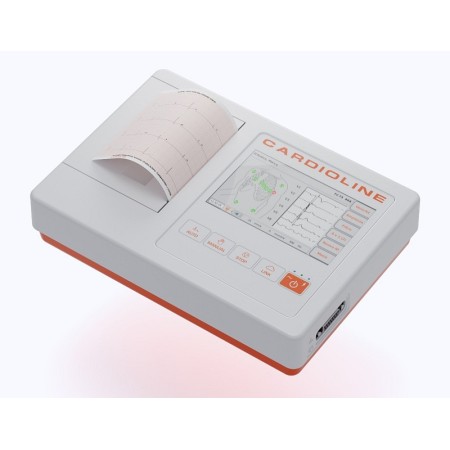

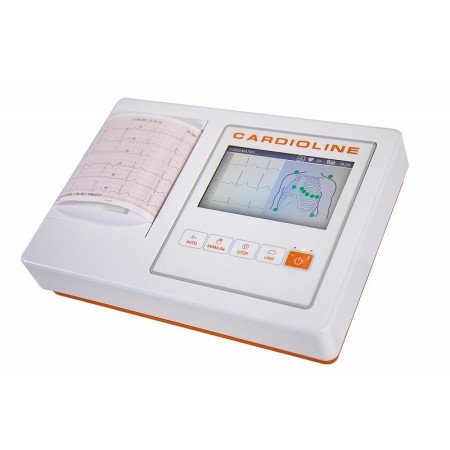

The TouchScreen Electrocardiograph CARDIOLINE ECG100L is designed to offer portability and ease of use while maintaining CARDIOLINE’s high quality standards. Equipped with a 5-inch backlit color TouchScreen display and 5 dedicated keys, it provides immediate access to the main functions. The user is guided step by step through ECG acquisition, from electrode placement to quality checking, through to printing and archiving. Automatic, manual, STAT, or rhythm ECGs can be easily acquired with a single key. Files can be archived on the device or transferred via USB to a PC or USB drive.

Technical specifications:
- ECG leads: 12 leads (I, II, III, aVR-L-F, V1-6)
- Patient cables: Standard 15D, 10-lead
- CMRR: > 100 dB
- Input impedance: > 100MΩ
- Sampling: 32000 samples per second per channel
- ECG resolution: 500 samples per second; 5 μV/LSB
- Dynamic range: +/- 330 mV
- Bandwidth: 0.05 - 150 Hz
- Pacemaker Detection: Hardware detection with digital convolution filtering
- Filters: Digital diagnostic high-pass filter; digital adaptive AC interference filter (50/60 Hz); digital low-pass filter
- Defibrillator protection: AAMI/IEC standard
- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
- Acquisition modes: Automatic (12-lead), Manual (3/6 leads), Stat (12-lead), Rhythm
- Configuration: Standard or Cabrera
- Lead contact recognition: Automatic on all leads
- ECG Measurements: All leads, Medians, Corrected QT, Sokolow-Lyon Index
- Optional interpretive algorithm: resting ECG with 12 Glasgow leads, with criteria specific to age, sex and race, including neonatal and pediatric interpretation and recognition of acute myocardial infarction
- Power supply: Battery or mains

Equipment:
- IEC ECG patient cable, 10 leads, 4 mm plug
- Universal plug adapters 4mm, 10 pieces
- Disposable ECG electrodes, tab, pack of 100 pieces
- Heart rate ruler
- Medical AC/DC power supply
- 10A power cable
