iPad CU-SP1 Semi-Automatic Defibrillator

CU-SP1 is the latest generation of defibrillators for public use with innovative features.

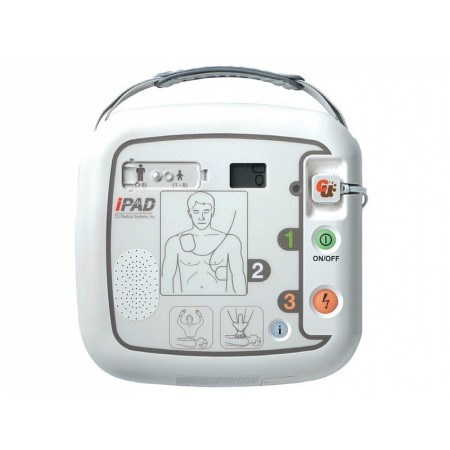

Semi-Automatic External Defibrillator (AED) CU-SP1
Battery-powered, easy-to-use, compact, lightweight, and portable semi-automatic external defibrillator. The AED automatically reads the patient's electrocardiogram (ECG) and determines whether a cardiac arrest requiring defibrillation has occurred, making it easy for both physicians and non-specialists to use.

- Automatic volume adjustment
CU-SP1 automatically adjusts its volume in proportion to the surrounding noise.

- Pre-connected paddles for a defibrillator that is always ready for use
The CU-SP1 comes with pre-connected paddles housed in a dedicated compartment under the defibrillator. This ensures the defibrillator is ready for use as quickly as possible. It also provides precise monitoring of the paddles' lifespan. The front of the defibrillator features a light indicator that changes color both 3 months before the paddles' expiration date and once they have expired.

- CPR detection
CPR increases the chances of survival. CU-SP1 detects whether the rescuer is performing CPR or not and prompts him or her to perform it or continue it, respectively.

- Easy communication with CU-EX1 software
By installing the CU-EX1 software on a computer, you can view and analyze device usage. Information such as the on-time, patient heart rate, and shocks applied are all clearly displayed.

- Available in 25 languages (please specify when ordering)
Selectable software languages: US, GB, FR, IT, ES, DE, PL, KR
Manual: US, GB, IT, ES, DE, PL, KR, JP, Arabic (For languages listed in "Software Voice" only, the manual is in English)

1 pc.

Defibrillator
Mode: Semi-automatic
Waveform: Biphasic truncated exponential
Energy:
- Adult: Rated 150J at 50 ohms
- Infant/Child: Nominal 50 J at 50 ohms
Charge control: automatic patient analysis system
Charging time: <10 seconds from full charge warning
Waterproof: Protection against jets of water IPX5 according to IEC60529 (IP55)
Dust protection IP5X according to IEC60529
Dimensions - Weight: 260x256x69.5 mm - 2.4 kg

User Interface
User support: Detailed voice prompts and flashing indicators
CPR Guide: Voice prompts guide you through CPR on adults and children.
Controls: On/off button, “i” button, discharge button
Indicators: LCD display (device status, battery status, plate status)
Sensors: Plate expiration date, plate connection status
CPR Monitoring
Automatic volume control

Data recording and transmission
IrDA port: for communication with PC
Internal Memory Capacity: Multiple recordings 5 single events / Max 3 hours
Data review PC program: CU-EX1

Patient analysis system
Patient Analysis: Shockable Rhythms - Ventricular Fibrillation, Tachycardia
Sensitivity/specificity Complies with AAMI DF80 guideline

High capacity disposable battery
Standard Type: DC 12 Volt 4.2 Ah, LiMnO2
Capacity: Minimum 200 discharges or 8 hours of operation

Operating altitude range
Altitude 0-4,570 m (0-15,000 ft)

Adult plates
Transport bag
Disposable lithium battery
Paper manual (GB, IT)
Multilingual manual on CD
