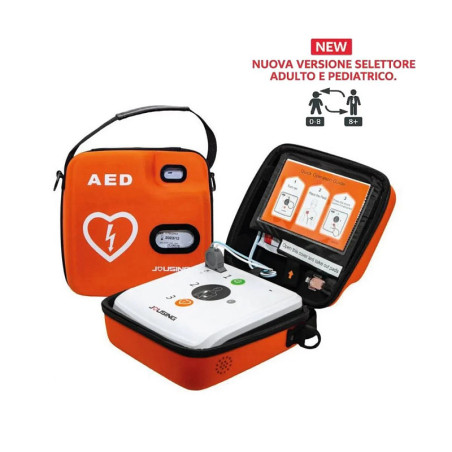

The iAED-S1 Automated External Defibrillator from Jousing Medical is designed to provide reliable, high-quality support in emergency situations. Featuring a compact, streamlined design, the device comes with pre-attached universal paddles and a selector switch for use on adult or pediatric patients. Powered by a high-capacity battery with a lifespan of 5 years or 300 shocks, the iAED-S1 is backed by a 5-year warranty. It is suitable for use on adult patients and children weighing more than 25 kg or over 8 years old, as well as pediatric patients weighing less than 25 kg or between 0 and 8 years old. Ideal for indoor, outdoor, and hospital environments, it can be used by healthcare professionals or laypeople.

The device automatically analyzes the patient's ECG to detect the presence of a shockable rhythm, guiding the operator through the procedure with audiovisual prompts. If a shockable rhythm is detected, the device automatically charges and delivers a shock when the operator presses the shock button. Supplied with a hard carrying case, the device includes pre-attached universal paddles for quick and efficient use.

The iAED-S1 performs self-tests at daily, weekly, and monthly intervals, alerting you to errors or low battery via a flashing status indicator and audible beeps. Drop-proof from 1.22 meters and designed to withstand splashes, drips, and dust with an IP55 rating, the device records operating data to internal memory, including ECG data, events, and self-tests.

Technical features:
- Operating mode: Semi-automatic
- Waveform: BTE - Biphasic Truncated Exponential
- Use: Adult and Child weighing more than 25 kg or over 8 years old - Pediatric weighing less than 25 kg or between 0 and 8 years old
- Discharge energy Adult and Child: 150 J nominal (±10%) on 50 ohms
- Adult and Child discharge energy step: 150J-150J-150J
- Discharge energy Pediatric: 50 J nominal (±10%) into 50 ohms
- Pediatric discharge energy step: 50J-50J-50J
- Impedance: Does not deliver a shock if ≤ 20Ω or ≥ 200Ω
- User interface: Voice prompts, sound alerts and light indications
- Charging time: ≤7s with new battery
- Dimensions: 198mm×197mm×67mm
- Weight: 2 kg (with battery and plates)
- Protection class: IP55

Environmental conditions:
- Temperature and relative humidity: Operating: 0°C~50°C, 5%~95%RH (non-condensing); Standby: 5°C~35°C, 5%~95%RH (non-condensing); Storage/Shipping: -30°C~65°C for up to 24 hours, 5%~95%RH (non-condensing)
- Altitude: 0 to 15,000 feet
- Atmospheric pressure: 480 hPa to 1060 hPa
- Impact/Drop Tolerance: 1.22 meters

Drums:
- Duration: 5 years
- Maximum number of discharges: 300
- Type: Battery 12VDC, 4.2Ah, LiMnO2
- Capacity: ≥300 discharges at 20°C±2°C, ≥100 discharges at 0°C±2°C
- Battery life: 300 shocks or 18 hours of ECG monitoring
- Plate expiry: 29-30 months

Defibrillation pads:
- Type: Self-adhesive, pre-gelled, disposable, latex-free
- Cable length: 120cm±12cm
- Active gel surface: 100cm²±10cm², each

Communication and documentation:
- Data Transfer: JouReview Software
- Communication: Bluetooth
- Documentation: ECG data, event log, self-test data
- Internal memory: 40 minutes of ECG analysis, two complete events

Self-Test Program:
- Start, daily, weekly, monthly
- Manual Self-Test Function: When the battery is inserted

Certifications and warranty:
- Class (93/42/EEC): IIB
- Patient isolation type: BF
- Warranty: 5 years

Equipment:
- iAED-S1 Unit
- LiMnO2 battery 12V, 4.2A
- Pair of universal disposable plates (adults and children)
- Hard carrying bag
- CEI 62-13 EN 60601-2-4 verification report
- User manual in Italian
