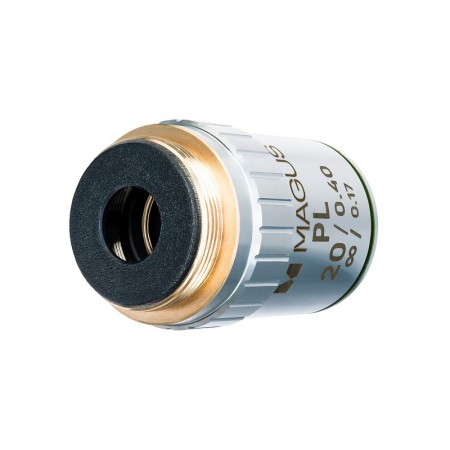

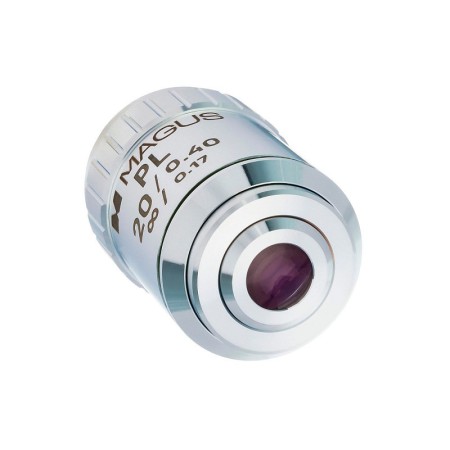

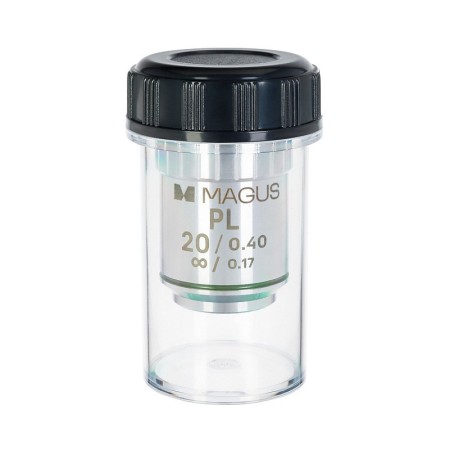

Polarizing objective for studying transparent and translucent samples in polarized light. Special lenses that produce no distortion or deformation and do not affect the study results.

Objective with 20x magnification and a maximum resolution of 0.69 µm. Designed for a microscope with an infinity-corrected optical system. The parfocal distance is 45 mm. During observations, a coverslip 0.17 mm thick must be used.

The plan achromatic objective eliminates spherical aberration in green and chromatic aberration in red and blue. It corrects field curvature up to 90% in diameter. The objective can be easily used with a digital camera and wide-field eyepieces. For example, the field of view with a 10x/22 mm eyepiece will have a diameter of 1.1 mm. The image is sharp both in the center and at the edges.

The objective is optimally paired with eyepieces with magnifications from 10x to 20x to achieve a possible microscope magnification from 200 to 400x. At magnifications below 200x, small details cannot be seen, while magnifications greater than 400x will provide no new information.

Compatibility:

• MAGUS Pol 800 polarizing microscope
