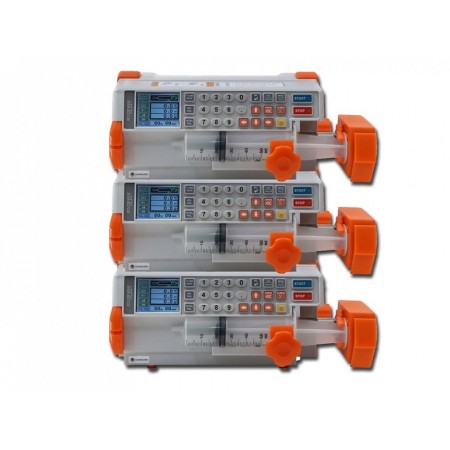

Automatic syringe

Lightweight, compact syringe pump with easy one-touch syringe installation using a sliding hook. The LCD display makes it easy to view the various settings. The device is extremely easy to adjust and use.
The product is supplied with a battery.

Flexible flow rate settings.
- Complete dosing program: automatically calculates the amount required for infusion based on the patient’s weight, the injection mass and the liquefaction.
- Anti-vein-occlusion function: when the preset value is reached, the flow rate automatically switches to the low-flow rate of 0,1ml/h to prevent the risk of vein occlusion due to blood coagulation.
- Compatible with 5 leading syringe brands: the system can be configured by selecting from the following syringe manufacturers: BD (Plastipak, Precise), TERUMO, RAYS, PENTAFERTE, KOVA.
Alarm and warning functions: notifies users of errors and emergencies with an LED light and audible signal, providing simultaneous visual and audible alarms.
Occlusion error range setting: the plasma occlusion pressure level is adjustable to high, medium or low, depending on the patient’s age.

We can calibrate our pumps for other syringe brands; please provide a minimum of 5 samples. Available within 60 days. Calibration is possible with 10/20/30/50 ml syringes.

1 piece. - Flow rate adjustment range
- 10ml syringe: 0.1-300ml/h
- 20ml syringe: 0.1-400ml/h
- 30ml syringe: 0.1-500ml/h
- 50ml syringe: 0.1-1200ml/h
- Flow volume error margin ±3%
- Infusion volume limit range
: 0.1 ~ 999.9 ml (infusion interval 0.1ml)
- Total estimated volume range
: 0.1 ~ 999.9 ml (infusion interval 0.1ml)
- K.V.O range (vein maintenance function)
: 1 ~ ml/h adjustable
- Dimensions: (LxWxH) 220 x 130 x 108 mm
- Weight: 2 kg
- Rapid flow volume (Purge)
- 0.1 ~ 1200 ml/h adjustable
- Bolus 0.1 ~ 1200 ml/h, 0.1 ~ 1000 ml adjustable
- Call for medical staff
- DC12V, 1A
- Alarm features
- Occlusion, K.V.O (infusion complete), standby, nearly empty, low battery indicator, device malfunction (CPU error), disengaged lever/slider hook, disengaged syringe.
- Special features
- Key lock, function keys, data storage, remaining time, alarm repetition, open system, K.V.O., purge, bolus, anti-bolus, occlusion level, recall previous settings
- Power supply
: AC 110V / 220V, 50/60Hz and DC9.6V
- Internal power source adapter DC24V / 1A
- Maximum power consumption 45VA
- Protection level against electric shock
- Class 1, internally powered equipment, type CF
- Water resistance rating IPX2
- Ni-MH battery type
- Battery life 5 hours at (5ml/h).
- Battery charging time: minimum 6 hours
- Battery service life 6 months
