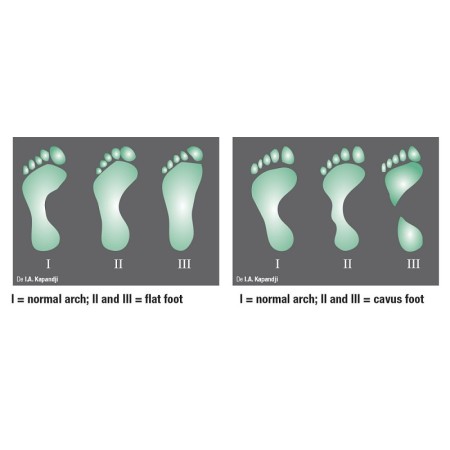

The Lux Podoscope is a classic device for analysing the type of foot of the person being examined (normal/high-arched/flat).

It consists of a lacquered wooden structure, a crystal-glass platform and a mirror underneath.

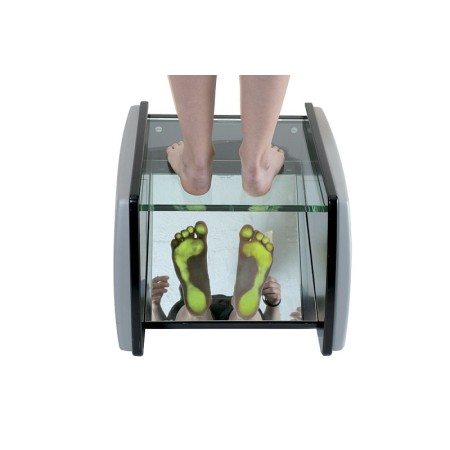

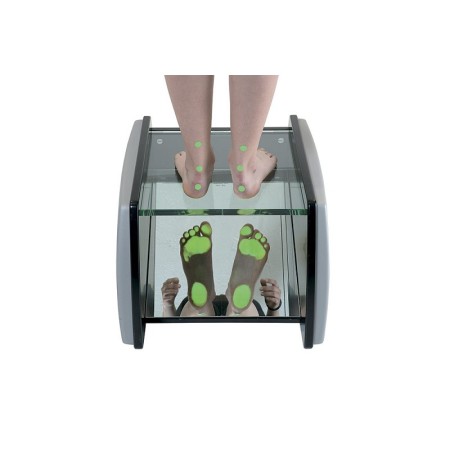

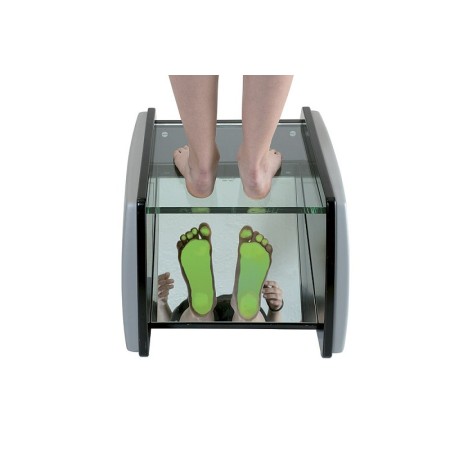

The double side lighting, with high-effect lamps, allows visualisation of the foot’s contact area and highlights the points bearing greater and lesser loads.

The PODOSCOPIO LUX NEW is a device for plantar analysis of the feet. It allows the sole of the foot to be clearly viewed and highlights the points bearing greater and lesser loads, thanks to an illuminated glass platform and an inclined mirror.

Power supply, primary, double insulation: 100÷240Vac-50/60Hz 0,25A; secondary: 24Vdc 0.5A
- Fuse: inside the power supply unit, not inspectable

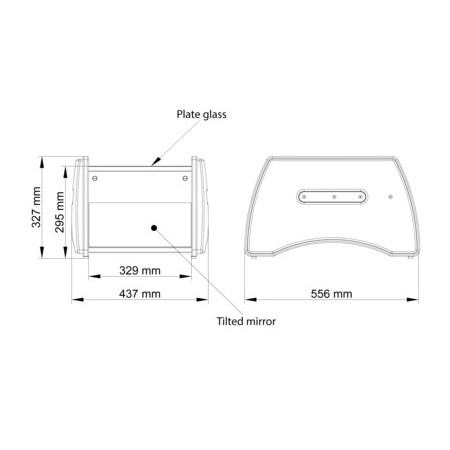

- Dimensions (mm): 560x452x320h
- Work surface dimensions (mm): 324x360
- Weight when empty: 15,5Kg

• - Maximum load capacity: 135Kg

Foot assessment: visual type / optional digital
Dimensions: 46 x 55 x 33 h cm
Work surface dimensions: 32,5 x 36 cm
Weight when empty: 15 kg
Max. load capacity: 200 kg
Primary power supply: double insulation 100÷240 Vac - 50/60Hz 0.25 A
Secondary power supply: 12 Vdc 1.25 A
Electrical socket: Italian + Schuko (others available on request)
Cable: removable, included
Lighting: LED

Fuse: inside the power supply unit, not inspectable
GMDN-CND: N.D. / V9099

- podoscope
- power supply unit
- adapter plug for EU mains
- adapter plug for GB mains
- English/Italian user manual
- electrical safety test report
