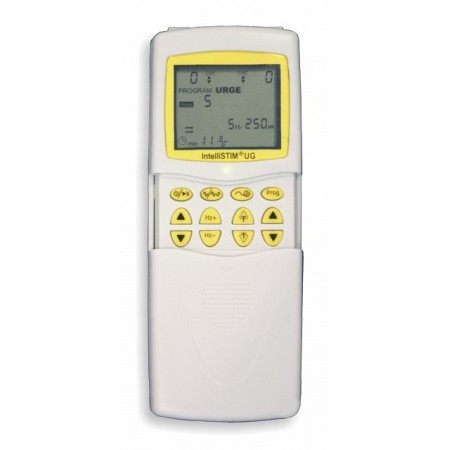

The IntelliSTIM BE-28UG perineal electrostimulator from BEAC is a therapeutic device designed for the treatment of incontinence through perineal electrostimulation, suitable for both professional and personal use.

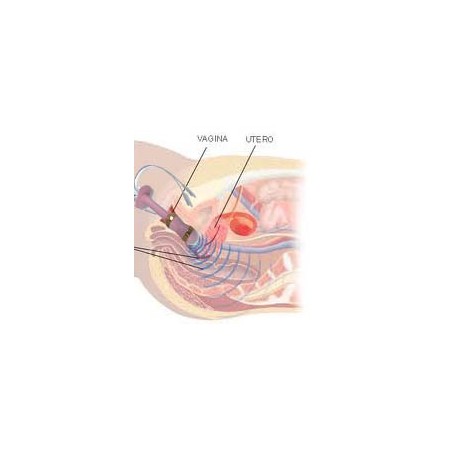

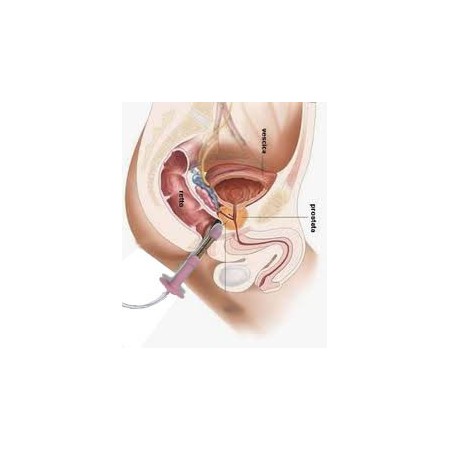

Perineal electrostimulation with the IntelliSTIM BE-28UG, using vaginal or anal probes, is the preferred treatment for many cases of urinary incontinence. The ability to combine professional treatments with home sessions is often crucial for therapeutic success.

Despite the sophisticated features and functional flexibility required for professional use, the IntelliSTIM UG unit is also simple to use directly by the patient.

Technical features:
- Large LCD Display
- Simple and intuitive use
- 4 free programs
- 11 selectable programs for different incontinence treatments
- IntelliSTIM function with automatic interactive adjustment of time parameters
- Viewing and modifying parameters during the session
- 2 selectable waveforms for ring or rod probes

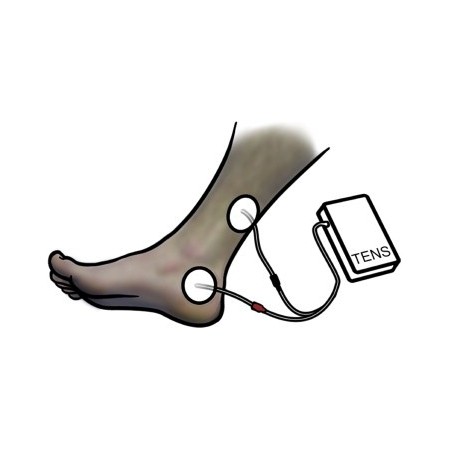

With the purchase of electrodes, the device can perform tibial stimulation to treat pelvic floor problems. The electrode placement is illustrated in the attached documentation. Suggested parameters include:

Tibial stimulation parameters:
- Pulse type: Symmetrical biphasic
- Frequency: 10-15 Hz
- Pulse width: 150-200 µs
- Continuous stimulation without pauses
- Session duration: 20-30 minutes

Technical specifications:
- Power supply: 2 x 1.5V AA (LR6) alkaline batteries
- Output: 100mApp into 1000 Ohm load (200mS pulses)
- Pulse width: 50mS to 400mS, adjustable in 50mS steps
- Frequency: 1Hz to 150Hz
- Waveform: Symmetrical and Alternating Biphasic Pulses
- Treatment timer: Continuous, 10min, 20min, 30min, 45min, 60min, 90min
- ACTION/PAUSE times: 1 to 60 sec, adjustable in 1 sec steps
- RAMP time: 0 to 5 sec, adjustable in 1 sec steps
- Dimensions: 138mm x 68mm x 28mm
- Weight: 160 g, batteries included
- Usage and storage temperature: +5 to +35 °C
- Relative humidity for use and storage: 20% to 80%

Equipment:
- IntelliSTIM BE-28UG Device
- 2 AA batteries
- Connection cables
- User manual in Italian
- Travel case

Probes must be purchased separately.

- Power supply: 2 x 1.5 V AA (LR6) alkaline batteries;
- Output: 100mApp into 1000 Ohm load (with 200mS pulses)
- Pulse width: 50mS to 400mS adjustable in 50mS steps
- Frequency: from 1Hz to 150Hz (1-2-3-4-5-10-12-14-16-18-20-25-30-35-40-45-50-60-70-80-90-100-110-120-130-140-150).
- Waveform: Symmetrical Biphasic Pulses - Alternating Biphasic Pulses.
- Treatment timer: Continuous, 10min, 20min, 30min, 45min, 60min, 90min.
- ACTION/PAUSE times: From 1 to 60 sec, adjustable in 1 sec steps.
- RAMP time: 0 to 5 sec, adjustable in 1 sec steps.
- Dimensions: 138mm x 6.8mm x 28mm.
- Weight: 160 g. Batteries included.
- Usage and storage temperature: from +5 to +35 °C.
- Relative humidity for use and storage: 20% to 80%.

Equipment:

- Intellistim BE-28UG device
- 2 AA batteries
- connecting cables
- user manual in Italian
- travel case

The probes must be purchased separately.
