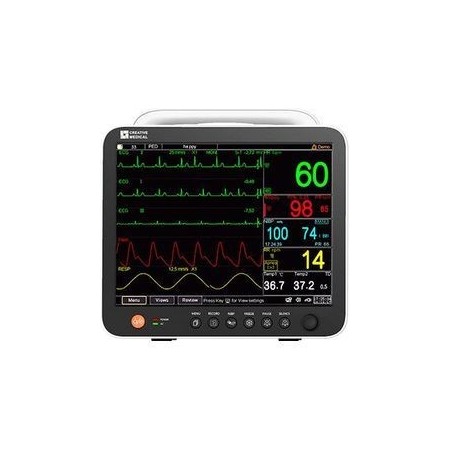

The K15 Touchscreen Multiparameter Monitor 15" is an advanced instrument designed to monitor the vital signs of adult, pediatric, and neonatal patients. It records and displays crucial parameters in real time, such as ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP), and temperature (TEMP), providing a comprehensive analysis of the patient's physiological condition.

Technical features:
- Ergonomic design with an intuitive user interface
- USB port for data transfer and software updates
- 9 waveforms displayed on screen
- Windows-style environment, easy to use
- Visual and audible alarm for physiological and technical anomalies
- Large memory capacity
- Suitable for use with original Nellcor sensors
- Protection against defibrillator discharges
- Resistance to interference from electrosurgical units
- Detection and inhibition of cardiac pacemaker pulses

Internal software:
- Languages: GB, DE, FR, PT, ES, IT, PL, TR, RU

PC software:
- Languages: GB, IT, ES
- Compatible with Windows XP, 7, 8, 10, 11

ECG:
- Input dynamic range: ±(0.5~5 mVp)
- Differential input impedance: =10 MO
- Bandwidth: 0.05~150 Hz (Diagnostic), 0.5~40 Hz (Monitoring), 1~20 Hz (Operating)
- CMRR: =90 dB (Diagnostic) / =105 dB (Monitoring & Operating)
- Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto
- Sweep speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
- HR measurement range: 15~350 bpm ±1% or ±2 bpm, whichever is greater
- Pacemaker pulse detection and inhibition function

RESP:
- Measurement range: 0~120 rpm ±5% or ±2 rpm, whichever is greater

TEMP:
- Measurement range: 21.0~50.0 °C ±0.2 °C between 25~45 °C

NIBP:
- Technique: Oscillometric method
- Typical measurement time: <30 seconds (adult cuff)
- NIBP measurement range: SYS: 40~275 mmHg (Adults) / 40~200 mmHg (Pediatric) / 40~135 mmHg (Neonates)
- NIBP measurement range: DIA: 10~210 mmHg (Adults) / 10~150 mmHg (Pediatric) / 10~95 mmHg (Neonates)
- NIBP measurement range: MAP: 20~230 mmHg (Adults) / 20~165 mmHg (Pediatric) / 20~110 mmHg (Neonates)
- NIBP measurement accuracy: Mean difference: ±5 mmHg
- Standard deviation: 8 mmHg
- NIBP measurement modes: Manual, Auto, STAT, Multi-cycle
- Automatic measurement intervals: 1-480 min

SpO2:
- Technique: Dual-wavelength optical method
- Measurement range: 0%~100% ±2% for SpO2 range 70~100%
- PR measurement range: 30~250 bpm ±2 bpm or ±2%, whichever is greater
- Low perfusion performance: Down to 0.3%

Other features:
- Power supply: AC 100-240 V, 50/60 Hz, 60 VA
- Built-in lithium battery: 11,1V/4400 mAh
- Screen: TFT, 12 or 15 inches
- Alarm method: 3-level audible-visual alarm
- Network: Ethernet
- Safety standard: IEC 60601-1

Supplied accessories:
- Adult SpO2 probe
- Adult NIBP cuff
- SpO2 extension cable
- ECG cable
- Skin temperature probe
- Power cable
- Rechargeable lithium battery
- Dust cover
- Disposable electrode
- Manual: GB, FR, IT, ES
- PC software: GB, IT, ES
