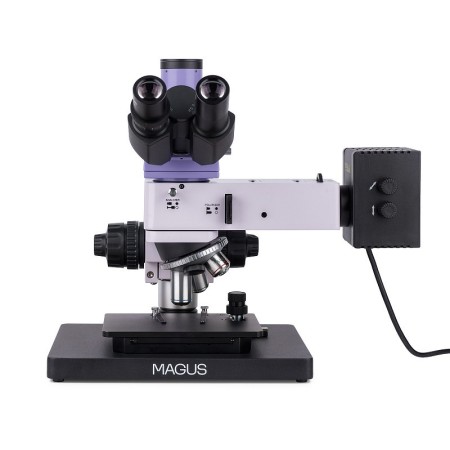

The reflected-light metallurgical microscope MAGUS Metal 630 is used to examine the microstructure of opaque objects of any height and size. The objects examined include metals, alloys, semiconductors and paint coatings. Available microscopy techniques are brightfield and polarized light. One of the microscope’s advantages is its compact size, making it ideal for laboratories with limited workspace and storage space. The microscope MAGUS Metal 630 is the ideal choice for companies in various industries, research centers and university departments.

Microscope in use »

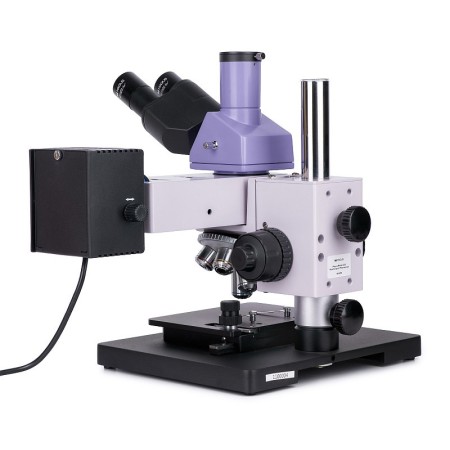

Optics

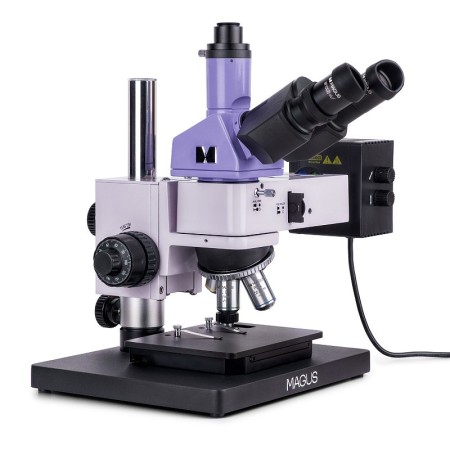

The microscope optics are infinity-corrected. The trinocular tube for mounting a camera is positioned vertically. The light beam can be directed to the eyepiece or into the trinocular tube. The camera is not included in the basic configuration. The microscope allows comfortable work for many hours thanks to the 30° inclination of the binocular head. The left eyepiece has a diopter adjustment mechanism for adjusting the optics to the user's eyesight.

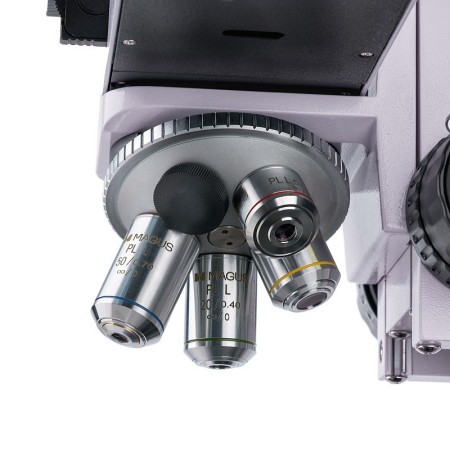

The revolving nosepiece has 5 slots. The kit includes 4 plan achromatic objectives. Once installed, one slot remains free for installing an optional objective. The long-working-distance objectives are designed for bright-field microscopy.

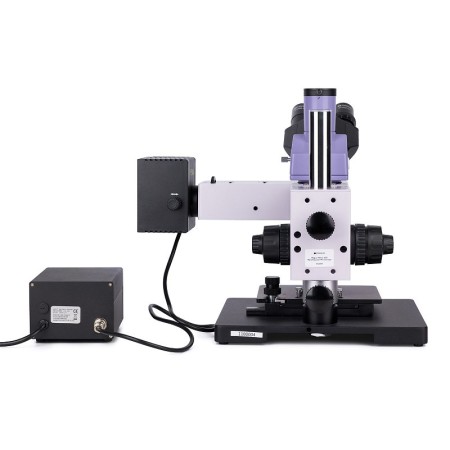

Illumination

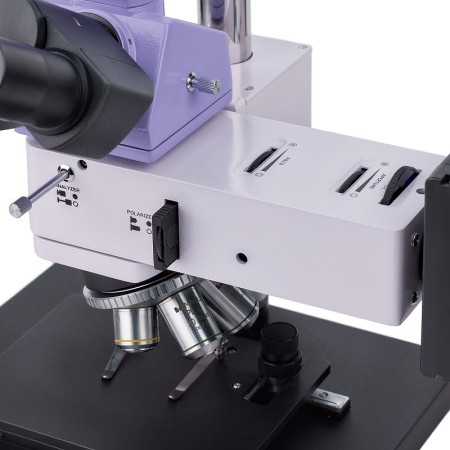

The microscope uses reflected-light illumination only. The illumination system consists of a polarization device, an aperture diaphragm and a field diaphragm. Light source: 30 W halogen lamp. The emitted light is glare-free and does not strain the eyes. Both the diaphragm and the light source can be centered. Köhler illumination can also be set up. The kit includes color filters.

Stage and focusing mechanism

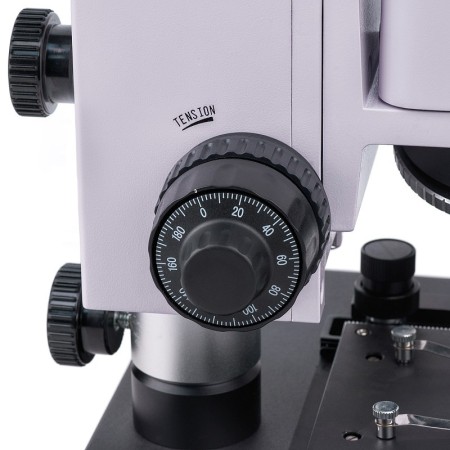

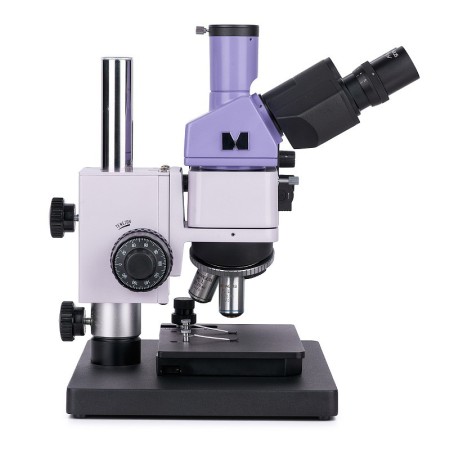

The stand and focusing mechanism with an innovative design have two advantages: compact dimensions and the ability to observe specimens of any height. The microscope can be easily placed on a laboratory bench with a maximum height of 40 cm. Small specimens can be examined using a two-axis stage. Focusing is adjusted using the coaxial coarse and fine focus knobs, located on both sides of the stand. The mechanisms operate precisely and smoothly. Coarse focus tension can also be adjusted.

Accessories

The microscope can be upgraded with optional accessories, such as objectives with a long working distance, eyepieces, a digital camera and calibration slides.

Key features:

• Samples of any height and size
• Trinocular head with a trinocular tube for mounting a digital camera and a beam splitter 100:0 and 0:100
• 30 W halogen lamp with warm-toned light for working in reflected light using brightfield and polarization microscopy techniques
• Color filters, option for setting Köhler illumination, light source, and aperture and field diaphragms that can be centered
• Compact stand for mounting the microscope on a cabinet
• Numerous additional accessories

The package contains:

• Stand with focusing mechanism, stage and revolving objective holder
• Illuminator for observations in reflected light with housing for a light bulb
• Trinocular head
• Infinity-corrected plan achromatic objective: PL L5x/0.12 WD 26.1 mm
• Infinity-corrected plan achromatic objective: PL L10х/0.25 WD 20.2 mm
• Infinite-corrected plan achromatic objective: PL L20х/0.40 WD 8.80 mm
• Infinity-corrected plan achromatic objective: PL L50х/0.70 WD 3.68 mm
• 10x eyepiece/22 mm with long eye relief (2 pcs.)
• 1x C-mount adapter
• Allen key
• Base with power input
• Power cable
• Power cable for the reflected-light illuminator
• Dust cover
• User manual and warranty certificate

Available upon request:

• 10x eyepiece/22 mm with graduated scale
• Eyepiece 12, 5x/14 mm (2 pcs.)
• Eyepiece 15x/15 mm (2 pcs.)
• Eyepiece 20x/12 mm (2 pcs.)
• Eyepiece 25x/9 mm (2 pcs.)
• Infinity-corrected plan achromatic objective: PL L40х/0.60 WD 3.98 mm
• Infinity-corrected plan achromatic objective: PL L60x/0.70 WD 2.08 mm
• Infinity-corrected plan achromatic objective: PL L80x/0.80 WD 1.25 mm
• Infinity-corrected plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm
• Digital camera
• Calibration slide
