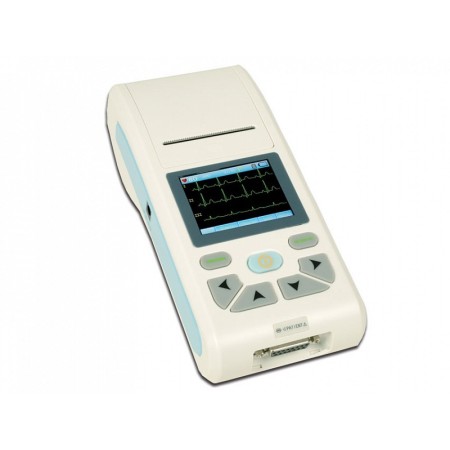

3 CHANNEL CARDIOPOCKET ECG with software

A 12-lead ECG that prints ECG waves using a thermal system; it automatically measures and diagnoses ECG parameters.

- Fully automatic analysis function: self-analysis and self-diagnosis for routine ECG parameters. Provides measurement results and self-diagnosis conclusions for HR, PR interval, P duration, QRS duration, QT interval, Q-tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1)
- 2.83" LCD color display (320x240 resolution) functioning as both touchscreen and keyboard
- high resolution 8 dots/mm (vertical) thermal order output system
- The included rechargeable removable lithium battery can work for 4 hours continuously and prints up to 90 minutes and 150 ECGs
- stores up to 100 cases on an SD card
- digital filter removes baseline distortions from ECG waves
- ECG synchronization software that forms an ECG workstation

Dimensions: 207 x 96 x 62 mm
Net weight: 500 g

1 pc.

- Power supply: AC: 100-240 V, 50/60 Hz - DC 12V rechargeable lithium battery 2,000 mAh
-Noise level:
- =15 µVp-p
- CMRR: >60 dB, >100 dB (with added filter)
- EMG filter:
- 25/35 Hz
- Time constant: =3.2 s
- Frequency response: 0.05-150 Hz (-3 dB - 0.4 dB)
- Patient leakage current: <10 µA
- Paper registration: 50mm x 20m, high-speed thermal paper
- Paper speed: 6.25, 12.5, 25, 50 mm/s ±5%
- Safety standards: IEC Class I, Type CF defibrillation-proof
- Input mode: protection from fluctuation and defibrillation
- Input circuit current: =0.1 µA
- Input impedance: =50 M O<

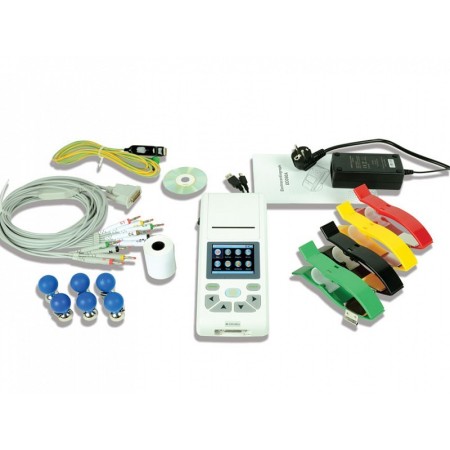

Patient cable
1 roll of paper
1 rechargeable lithium battery
4 peripheral electrodes
6 precordial electrodes
1 user manual (GB, IT, FR)
1 software CD (GB, FR, IT, ES, DE, TR) and cable for PC connection
